Switch Test/Replacement

NOTE: SRS components are located in this area Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

Separate the lumbar support switch cover (A) from the switch (B)

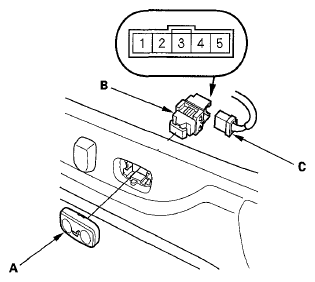

Fig 1: Identifying Lumbar Support Switch Cover, Switch And 5P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 5P connector (C) from the switch
Check for continuity between the terminals in each switch position according to the table

Fig 2: Terminal Continuity Reference Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch
