Component Location Index

Driver's Power Seat

For the driver's power seat, refer to the "Driving Position Memory System (DPMS)" article.

See COMPONENT LOCATION INDEX .

Front Passenger Power Seat

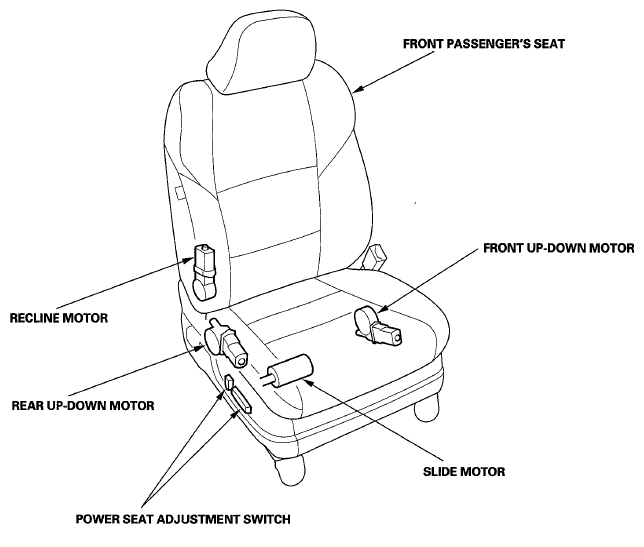

Fig 1: Identifying Power Seats Component Locations

Courtesy of AMERICAN HONDA MOTOR CO., INC.
