How to Identify Connector Terminals

Connector terminals are numbered according to the cavities they are in. The cavities are numbered starting from the upper left, looking at the male terminals from the terminal side or looking at the female terminals from the wire side. Both views are in the same direction so the numbers are the same. All actual cavities are numbered, even if they have no wire terminals in them.

NOTE: Data Link Connector (DLC) terminals are numbered according to SAE standard J1962, not the Honda standard. The numbers of the four end terminals are molded into the corners of the connector face

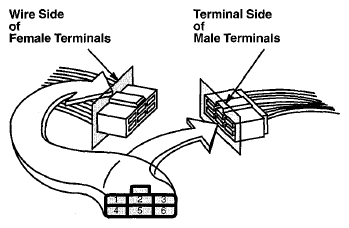

Fig 1: Identifying Female And Male Terminals

The connector cavity number is listed next to each terminal on the circuit schematic. The cavity/terminal shown below is #6.

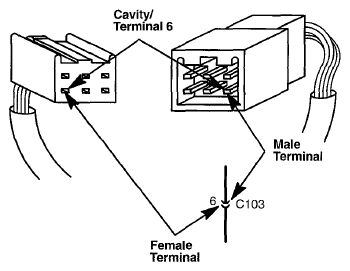

Fig 2: Identifying Cavity/Terminal 6, Male Terminal And Female Terminal

CONNECTOR REFERENCE CHART

Connector		Location OEM COMPONENT LOCATION -- TL	Terminals OEM CONNECTOR TERMINAL VIEWS -- TL	Harness OEM CONNECTOR-TO-HARNESS LOCATIONS -- TL
Ring Terminals
(-)
	A/T			0 / 4
	M/T			2 / 3
(+)
	A/T			0 / 3
	M/T			2 / 2
G1		27
	A/T			0 / 5
	M/T			2 / 4
G2		3
	A/T			0 / 9
	M/T			2 / 9
G3		169
	A/T			0 / 6
	M/T			2 / 6
G101		6
	A/T			6 / 46
	M/T			12 / 43
G201		164		20 / 16
G202		164		22 / 17
G203		85		20 / 1
G204		85		20 / 2
G301		159		16 / 14
G302		60		18 / 1
G401		44		24 / 12
G402		48		24 / 11
G403		65		32 / 31
G404		108		32 / 51
G405		90		30 / 22
G501		71		34 / 1
G502		68		36 / 20
G601		103
	SH-AWD			44 / 37
	without SH-AWD			40 / 36
G602		111
	SH-AWD			44 / 35
	without SH-AWD			40 / 34
G603		153
	SH-AWD			44 / 29
	without SH-AWD			40 / 27
G651		110
	SH-AWD			52 / 21
	without SH-AWD			48 / 16
G652 (SH-AWD)		207		52 / 22
G653		155
	SH-AWD			52 / 30
	without SH-AWD			48 / 21
G701		103		46 / 12
G702		110		46 / 1
G801		128
	SH-AWD			52 / 32
	without SH-AWD			48 / 22
T1		3
	A/T			0 / 8
	M/T			2 / 8
T2
	A/T	25		0 / 7
	M/T	221		2 / 7
T3
	A/T	20		0 / 1
	M/T	222		2 / 5
T4		11
	A/T			6 / 36
	M/T			12 / 33
T6		178		68 / 5
T7		2		68 / 6
T8		2		68 / 7
T9		39		61 / 4
T10 (SH-AWD)		217		69 / 2
T101		31
	A/T			0 / 2
	M/T			2 / 1
T102		31
	A/T			4 / 17
	M/T			10 / 16
In-line Connectors
C101		29	273
	A/T			4 / 20 and 16 / 5
	M/T			10 / 19 and 16 / 5
C102		29	24
	A/T			4 / 19 and 16 / 6
	M/T			10 / 18 and 16 / 6
C103 (Junction Connector)		14	302
	A/T			4 / 6
	M/T			10 / 6
C104		7	25
	A/T	14		6 / 42
	M/T			12 / 39
C105 (Junction Connector) (A/T)		21	253	4 / 23
In-line Connectors
C106 (Junction Connector)			303
	A/T	22		4 / 21
	WT	221		10 / 20
C107 (Junction Connector)		304
	A/T		22	4 / 22
	M/T		221	10 / 21
C108 (A/T)		25	205	8 / 14
C201		163	126	16 / 23 and 20 / 15
C202		1	160	20 / 10 and 68 / 1
C203		1	254	20 / 9 and 68 / 2
C204 (Junction Connector)		84	255	20 / 8
C205		83	127	22 / 27 and 66 / 6
C206		87	291	22 / 31 and 32 / 30
C207 (Headlight Washer)			128	20 / 7 and 32 / 29
C208		89	184	22 / 28 and 32 / 28
C301		56	129	18 / 6 and 66 / 1
C302		56	130	18 / 7 and 66 / 2
C303		59	236
	SH-AWD			18 / 14 and 42 / 1
	without SH-AWD			18 / 14 and 38 / 1
C304 (Headlight Washer)			131	18 / 13 and 28 / 67
C305		49	185	18 / 11 and 28 / 64
C306		50	305	18 / 12 and 28 / 65
C307 (Junction Connector)		54	352	18 / 5
C401		50	286
	SH-AWD			28 / 66 and 44 / 38
	without SH-AWD			28 / 66 and 40 / 37
C402		116	296	24 / 13 and 54 / 11
C403		72	292	32 / 48 and 66 / 14
C404			287
	A/T	106		32 / 37 and 46 / 4
	M/T	226		32 / 44 and 46 / 15
C405			293	32 / 36
	A/T	106
	M/T	226
C406		75	313	30 / 17 and 34 / 5
C407 (Keyless Access)		199	256	30 / 18 and 34 / 6
C408 (Junction Connector)		76	257	30 / 16
C409 (Junction Connector)		78	294	30 / 21
C410		87	237
	SH-AWD			30 / 25 and 50 / 16
	without SH-AWD			30 / 25 and 48 / 11
C411		87	258
	SH-AWD			32 / 26 and 52 / 20
	without SH-AWD			32 / 26 and 48 / 12
C451		145	297	54 / 4
C501		73	295	36 / 21 and 66 / 10
C502 (Junction Connector)		70	259	36 / 23
C503 (Junction Connector)		70	260	36 / 24
C504 (Junction Connector)		71	261	34 / 4
C505 (Junction Connector)		71	262	34 / 3
C506 (Junction Connector) (Navigation)		200	263	34 / 8
C507 (Junction Connector)		78	264	34 / 9
C508 (Junction Connector)		78	265	34 / 10
C509		89	307
	SH-AWD			34 / 18 and 50 / 17
	without SH-AWD			34 / 18 and 48 / 13
C510		202	266
	SH-AWD: Navigation			36 / 19 and 50 / 18
	without SH-AWD: Navigation			36 / 19 and 48 / 14
C601			317
	without SH-AWD	114		38 / 12 and 48 / 7
	SH-AWD	205		42 / 13 and 50 / 5
C602 (SH-AWD)		205	132	42 / 12 and 50 / 6
C651 (Junction Connector) (SH-AWD)		207	267	50 / 12
C652 (SH-AWD)		218	219	52 / 28 and 69 / 5
C653 (SH-AWD)		218	220	52/ 29 and 69/ 4
C701		92	298	46 / 14 and 62 / 7
C702		98	288	46 / 17 and 64 / 8
C751		117	299	24 / 2 and 56 / 11
C752		117	268	24 / 1 and 56 / 12
C753		134	308	56 / 6
C754		134	285	56 / 7
C755 (Junction Connector)		135	269	56 / 8
C756 (Junction Connector)		134	270	56 / 4
C761		117	309	30 / 24 and 58 / 9
C762 (Junction Connector)		135	271	58 / 2
C771		119	274
	SH-AWD			44 / 36 and 59 / 4
	without SH-AWD			40 / 35 and 59 / 4
C781		119	275
	SH-AWD			50 / 14 and 60 / 5
	without SH-AWD			48 / 9 and 60 / 5
In-line Connectors
C901		215	318
	Mexico
	SH-AWD: Keyless Access			42 / 17
	without SH-AWD: Keyless Access			38 / 15
Component Connectors
+B Cut Relay (M/T)		225	332	26 / 45
2nd Clutch Transmission Fluid Pressure Switch (A/T)		179	1	4 / 14
3rd Clutch Transmission Fluid Pressure Switch (A/T)		175	2	8 / 12
4th Clutch Transmission Fluid Pressure Switch (A/T)		23	3	8 / 6
A/C Compressor Clutch		11	4
	A/T			6 / 33
	M/T			12 / 30
A/C Condenser Fan Motor		171	26	16 / 22
A/C Pressure Sensor		1	133	20 / 11
A/T Clutch Pressure Control Solenoid Valve A (A/T)		24	27	8 / 7
A/T Clutch Pressure Control Solenoid Valve B (A/T)		24	28	8 / 8
A/T Clutch Pressure Control Solenoid Valve C (A/T)		22	29	4 / 24
A/T Gear Position Indicator Panel Light		61	30	32 / 46
A/T Shift Lock Solenoid/Park-Pin Switch		109	161	32 / 43
ACC Cut Relay (without Keyless Access)		190	319	26 / 44
AcuraLink Control Unit (XM Receiver) (AcuraLink)		196	320
	Connector A			36 / 28
	Connector B
AcuraLink Reprogramming Connector (AcuraLink)		199	186	34 / 7 and 34 / 11
Alternator		11	162
	A/T			6 / 34
	M/T			12 / 31
AM Signal Window Antenna		127	5
AM/FM Antenna Amplifier		127	134
Antenna Lead Connector		118	135
APP Sensor		52	206	18 / 8
ATF Temperature Sensor (A/T)		176	31	8 / 9
Audio-HVAC Display Unit (without Navigation)		63	246	34 / 2
Audio-Navigation Switch Panel (Navigation)		193	300	36 / 30
Audio Remote Switch, HFL Voice Control Switch (without Navigation)		38	247	61 / 1
Audio Remote Switch, HFL-Navigation Voice Control Switch (Navigation)		38	248	61 / 1
Component Connectors
Audio Unit (without Navigation)		74	321
	Connector A			36 / 32
	Connector B			36 / 31
	Connector C			36 / 29
	Connector D			36 / 22
	Connector E
Audio-Navigation Unit (Navigation)			322
	Connector A	197		36 / 32
	Connector B	197		36 / 31
	Connector C	197		36 / 29
	Connector D	197		36 / 22
	Connector E	197
	Connector F	198		36 / 33
	Connector G	198		36 / 34
	Connector H	198		36 / 35
	Connector J	198
	Connector K	198
Automatic Dimming Inside Mirror		144	221	54 / 1
Automatic Lighting Sensor		64	187	30 / 14
Auxiliary Jack		104	188	32 / 38
Auxiliary Jack/USB Assembly		104
Auxiliary Under-dash Fuse Holder (without Keyless Access)		49	32	28 / 68
Back-up Light Switch (M/T)		223	368	14 / 3
Back-up Sensor Control Unit (Acura Accessory)			361
Back-up Sensor In-line Fuse (Acura Accessory)			354
Back-up Sensor System Connector (Acura Accessory)			360
Back-up Sensor System Junction Connector (Acura Accessory)			359
Blower Motor		83	33	66 / 7
Blower Power Transistor		81	189	66 / 3
Brake Fluid Level Switch		32	34	16 / 10
Brake Pedal Position Switch		51	163	18 / 9
Cable Reel Connector			323
	Connector A	40		30 / 5
	Connector B	40		30 / 4
	Connector C	38		61 / 3
Center Junction Box		57	324
	Connector A			26 / 37
	Connector B			26 / 38
	Connector C			26 / 39
	Connector D			26 / 40
	Connector E			26 / 36
	Connector F			26 / 31
	Connector G			26 / 32
	Connector H			26 / 35
	Connector J			26 / 34
	Connector K			26 / 33
Component Connectors
Cigarette Lighter Socket (Mexico)		61	36
Cigarette Lighter Light (Mexico)			37
CKP Sensor		174	136
	A/T			4 / 13
	M/T			10 / 13
Climate Control Unit		82	325
	Connector A			66 / 12
	Connector B			66 / 11
	Connector C			66 / 9
Clutch Interlock Switch (M/T)		224	369	18 / 4
Clutch Pedal Position Switch (M/T)		224	370	18 / 10
CMP Sensor		7	137
	A/T			6 / 39
	M/T			12 / 36
Combination Light Switch		40	249	30 / 2
Console Accessory Power Socket		105	38	32 / 39
Console Accessory Power Socket Relay		51	326	26 / 41
Console Box Light		105	39	32 / 40
Cruise Control Combination/Select/Reset/Information Switch		38	250	61 / 6
Dash Lights Brightness Controller		34	207	28 / 53
Differential Fluid Temperature Sensor (SH-AWD)		218	40	69 / 6
DLC		47	279	28 / 63
Driver's Airbag First and Second Inflators		37	164
Driver's Air Mix Control Motor		55	222	66 / 15
Driver's Climate Control Switch		62	280	30 / 12
Driver's Door Courtesy Light		133	41	56 / 16
Driver's Door Lock Actuator/Knob Switch/Key Cylinder Switch		136	238	56 / 17
Driver's Door Outer Handle Light/Lock Switch/Touch Sensor/LF Antenna (Keyless Access)		210	232	56 / 1
Driver's Door Speaker		132	42	56 / 14
Driver's Door Switch		119	6
	SH-AWD			42 / 4
	without SH-AWD			38 / 4
Driver's Footwell Light		46	43	28 / 58
Driver's Junction Box 1		45	327
	Connector A			26 / 29
	Connector B			26 / 30
	Connector C			26 / 23
	Connector D			26 / 28
	Connector E			26 / 24
	Connector F			26 / 25
	Connector G			26 / 27
	Connector H			26 / 26
Component Connectors
Driver's Junction Box 2		45	328
	Connector A			24 / 21
	Connector B			24 / 14
	Connector C			24 / 15
	Connector D			24 / 20
	Connector E			24 / 16
	Connector F			24 / 17
	Connector G			24 / 19
	Connector H			24 / 18
Driver's Mode Control Motor		55	223	66 / 16
Driver's Power Lumbar Support Motor		96	44	62 / 16
Driver's Power Lumbar Support Switch		91	190	62 / 5
Driver's Power Seat Adjustment Switch		91	251	62 / 6
Driver's Power Seat Front Up-down Motor/Position Sensor		94	191	62 / 15
Driver's Power Seat Rear Up-down Motor/Position Sensor		94	192	62 / 3
Driver's Power Seat Recline Motor/Position Sensor		95	193	62 / 2
Driver's Power Seat Slide Motor/Position Sensor		93	194	62 / 9
Driver's Power Window Motor		137	208	56 / 15
Driver's Seat Back Heater		95	45	62 / 1
Driver's Seat Belt Buckle Switch		93	46	62 / 12
Driver's Seat Belt Tensioner		120	165	46 / 10
Driver's Seat Cushion Heater		92	138	62 / 11
Driver's Seat Heater Relay		92	329
	High			62 / 14
	Low			62 / 13
Driver's Seat Heater Switch		61	209	32 / 45
Driver's Seat Position Sensor (USA, Canada)		94	47	62 / 4
Driver's Side Airbag Inflator		92	48	46 / 13
Driver's Under-dash Fuse/Relay		58	330
	Connector A (Not used)
	Connector B			28 / 52
	Connector C			28 / 51
	Connector D
SH-AWD				42 / 3
without SH-AWD				38 / 3
	Connector E
SH-AWD				42 / 2
without SH-AWD				38 / 2
	Connector F			18 / 3
	Connector G			18 / 2
	Connector H (Option Connector)
	Connector K (MICU Service Check Connector)
	Connector M			28 / 48
	Connector N			28 / 49
	Connector P			28 / 50
	Connector Q (Driver's MICU)			26 / 46
	Connector R (Driver's MICU)			28 / 47
Driver's Vanity Mirror Light		143	49	54 / 7
Driving Position Memory Switch		129	224	56 / 3
ECM/PCM		5	339
	Connector A			16 / 1
	Connector B
A/T				6 / 40
M/T				12 / 37
	Connector C
A/T				6 / 41
M/T				12 / 38
ECT Sensor 1		18	50
A/T				4 / 25
M/T				10 / 23
ECT Sensor 2		170	51	16 / 19
EGR Valve and EGR Valve Position Sensor		18	195
	A/T			6 / 26
	M/T			12 / 24
Electrical Compass Unit (without Navigation)		152	210
	SH-AWD			52 / 33
	without SH-AWD			48 / 3
Electric Steering Lock Control Unit (Keyless Access)		186	233	30 / 3
Engine Mount Control Solenoid Valve		19	52
	A/T			4 / 11
	M/T			10 / 11
Engine Start/Stop Switch (Keyless Access)		185	239	30 / 10
EPS Control Unit		86	331
	Connector A			20 / 6
	Connector B			20 / 4
	Connector C			20 / 3
	Connector D			20 / 5
Component Connectors
EPS Motor		2	139	68 / 8
EPS Motor Angle Sensor		2	353	68 / 3
EPS Torque Sensor		178	140	68 / 4
EVAP Canister Purge Valve (LEV2)		19	53
	A/T			4 / 10
	M/T			10 / 10
EVAP Canister Vent Shut Valve			54
	SH-AWD	220		52 / 31
	without SH-AWD (LEV2)	181		40 / 30
Evaporator Temperature Sensor		56	55	66 / 17
FM Signal Window Antenna		127		7
Front A/F Sensor (B2, S1)		12	211
	A/T			6 / 31
	M/T			12 / 28
Front Accessory Power Socket (USA, Canada)		61	56	32 / 34
Front Accessory Power Socket Relay
	Keyless Access: Headlight Washer		332	26 / 44
	Keyless Access: without Headlight Washer	191	326	26 / 42
Front Center Speaker		64	57	30 / 11
Front Interior LF Antenna (Keyless Access)		195	35	36 / 27
Front Passenger's Airbag First and Second Inflators		78	166	30 / 19
Front Passenger's Air Mix Control Motor		81	225	66 / 13
Front Passenger's Climate Control Switch		62	282	34 / 13
Front Passenger's Door Courtesy Light		133	58	58 / 6
Front Passenger's Door Lock Actuator/Knob Switch		136	240	58 / 5
Front Passenger's Door Outer Handle Light/Lock Switch/Touch Sensor/LF Antenna (Keyless Access)		210	234	58 / 4
Front Passenger's Door Speaker		132	59	58 / 8
Front Passenger's Door Switch		119	8
	SH-AWD			50 / 15
	without SH-AWD			48 / 10
Front Passenger's Footwell Light		80	60	66 / 8
Front Passenger's Mode Control Motor		75	226	66 / 5
Front Passenger's Power Seat Adjustment Switch		97	252	64 / 10
Front Passenger's Power Seat Front Up-Down Motor		100	61	64 / 2
Front Passenger's Power Seat Rear Up-Down Motor		100	62	64 / 11
Front Passenger's Power Seat Recline Motor		101	63	64 / 13
Front Passenger's Power Seat Slide Motor		98	196	64 / 9
Front Passenger's Power Window Motor		137	212	58 / 7
Front Passenger's Power Window Switch		139	314	58 / 3
Component Connectors
Front Passenger's Seat Belt Buckle Switch		99	64	64 / 7
Front Passenger's Seat Belt Tensioner		120	167	46 / 3
Front Passenger's Seat Heater		98	168	64 / 6
Front Passenger's Seat Heater Relay		99	333
	High			64 / 5
	Low			64 / 4
Front Passenger's Seat Heater Switch		61	227	32 / 35
Front Passenger's Seat Position Sensor (Mexico)			141
Front Passenger's Side Airbag Inflator		98	65	46 / 18
Front Passenger's Vanity Mirror Light		143	66	54 / 2
Front Secondary HO2S (B2, S2)			169
	A/T	12		6 / 30
	M/T	227		14 / 5
FTP Sensor (LEV2)			142
	SH-AWD	220		52 / 24
	without SH-AWD	181		40 / 31
Fuel Fill Door Opener Solenoid		154	67
	SH-AWD			44 / 32
	without SH-AWD			40 / 29
Fuel Pump Control Module ('09: SH-AWD)		208	241	42 / 7
Fuel Tank Unit			170
	SH-AWD	204		42 / 6
	without SH-AWD	113		38 / 10
Gauge Control Module		35	310	24 / 22
Glove Box Light		79	68	34 / 12
GPS Antenna (Navigation)		194
HandsFreeLink Control Unit		67	306	36 / 25
Hazard Warning Switch/Front Passenger's Airbag Cut-off Indicator (USA, Canada)		62	213	30 / 15
Hazard Warning Switch (Mexico)		62	197
Headlight Washer Motor (Headlight Washer)			69	22 / 22
Headlight Washer Relay (Headlight Washer)		191	326	26 / 42
Headlight Washer Switch (Headlight Washer)			214	28 / 56
HFL/Navigation Microphone (Navigation)		212	228	54 / 6
High Horn		159	9	16 / 18
High Mount Brake Light		148	70	54 / 9
Horn Switch		37	10	61 17
Humidity/In-car Temperature Sensor		36	171	30 / 8
IG Fuse (Remote Starting System (Acura Accessory: without Keyless Access))			364
IG1/IG2 Fuse (Remote Starting System (Acura Accessory: Keyless Access))			367
Component Connectors
IG1 Relay (Remote Starting System (Acura Accessory: without Keyless Access))			362
IG1A Relay (Remote Starting System (Acura Accessory: Keyless Access))			363
IG1B Relay (Remote Starting System (Acura Accessory: Keyless Access))			364
IG2 Cut Relay (without Keyless Access)		190	319	26 / 45
IG2 Relay (Remote Starting System (Acura Accessory))
	Keyless Access		363
	without Keyless Access		362
Ignition Coils			143
	A/T
No. 1		15		4 / 3
No. 2		15		4 / 5
No. 3		15		4 / 8
No. 4		13		6 / 37
No. 5		13		6 / 32
No. 6		13		6 / 29
	M/T
No. 1		15		10 / 3
No. 2		15		10 / 5
No. 3		15		10 / 8
No. 4		13		10 / 34
No. 5		13		10 / 29
No. 6		13		10 / 27
Ignition Key Switch/Key Light (without Keyless Access)		43	215	32 / 49
Ignition Switch (without Keyless Access)		43	198	32 / 50
Immobilizer-Keyless Control Unit (without Keyless Access)		43	229	30 / 7
IMT Actuator		6	199
	A/T			4 / 1
	M/T			10 / 1
Injectors (A/T)			71
	A/T
No. 1		8		4 / 2
No. 2		8		4 / 4
No. 3		8		4 / 7
No. 4		9		6 / 38
No. 5		9		6 / 35
No. 6		9		6 / 27
	M/T
No. 1		8		10 / 2
No. 2		8		10 / 4
No. 3		8		10 / 7
No. 4		9		12 / 35
No. 5		9		12 / 32
No. 6		9		12 / 25
Inner Side Front Passenger's Weight Sensor (USA, Canada)		100	72	64 / 3
Component Connectors
Input Shaft (Mainshaft) Speed Sensor			144
	A/T	177		8 / 13
	M/T	227		14 / 4
Interface Dial (Navigation)		193	200	36 / 26
Keyless Access Control Unit (Keyless Access)		189	334
	Connector A			28 / 62
	Connector B			28 / 61
	Connector C			28 / 60
Keyless Access Junction Box (Keyless Access)		187	335
	Connector A			24 / 3
	Connector B			24 / 4
	Connector C			24 / 5
	Connector D			24 / 10
	Connector E			24 / 6
	Connector F			24 / 7
	Connector G			24 / 9
	Connector H			24 / 8
Keyless Access System Mode Switch (Keyless Access)		79	73	34 / 14
Keyless Buzzer		184	74
	SH-AWD			44 / 24
	without SH-AWD			40 / 22
Knock Sensor		10	11
	A/T			6 / 28
	M/T			12 / 26
Left Back-up Light		158	75
	SH-AWD			44 / 27
	without SH-AWD			40 / 25
Left Brake Light/Taillight		158	145
	SH-AWD			42 / 16
	without SH-AWD			38 / 14
Left Clutch Electromagnetic Coil/Search Coil (SH-AWD)		217	172	69 / 1
Left Corner Back-up Sensor (Acura Accessory)			355
Left Fog Light		160	76	16 / 16
Left Front Impact Sensor		159	77	16 / 15
Left Front Side Marker Light		166	78	16 / 13
Left Front TPMS Initiator		168	146	18 / 15
Left Front Turn Signal/Parking Light		160	147	16 / 17
Left Front Wheel Speed Sensor		167	79	16 / 12
Left Headlight			336
	Connector A	166		16 / 3
	Connector B	28		16 / 4
Left License Plate Light		183	80
	SH-AWD			44 / 26
	without SH-AWD			40 / 24
Left Middle Back-up Sensor (Acura Accessory)			356
Component Connectors
Left Power Mirror		135	283	56 / 9
Left Rear Door Lock Actuator/Knob Switch		141	242	59 / 1
Left Rear Door Speaker (Navigation)		211	81	59 / 3
Left Rear Door Switch		121	12
	SH-AWD			42 / 5
	without SH-AWD			38 / 6
Left Rear Power Window Motor		142	82	59 / 5
Left Rear Power Window Switch		140	276	59 / 2
Left Rear Side Marker Light		158	84
	SH-AWD			44 / 30
	without SH-AWD			40 / 28
Left Rear Speaker		149	85
	SH-AWD			42 / 15
	without SH-AWD			38 / 13
Left Rear TPMS Initiator		182	148
	SH-AWD			44 / 34
	without SH-AWD			40 / 33
Left Rear Turn Signal Light		158	86
	SH-AWD			44 / 28
	without SH-AWD			40 / 26
Left Rear Wheel Speed Sensor		180	87
	SH-AWD			44 / 33
	without SH-AWD			40 / 32
Left Side Curtain Airbag Inflator		123	88	46 / 8
Left Side Impact Sensor (1st)		120	173	46 / 11
Left Side Impact Sensor (2nd)		126	89	46 / 9
Left Side Turn Signal Light		138	90
Left Tweeter		115	91	54 / 12
Low Horn		163	13	16 / 24
MAF/IAT Sensor		29	201
	A/T			4 / 18
	M/T			10 / 17
MAP Sensor		17	149
	A/T			4 / 15
	M/T			10 / 14
Moonroof Control Unit/Motor		147	277	54 / 10
Moonroof Switch		145	230	54 / 5
Navigation Display Unit (Navigation)		192	311	34 / 2
Navigation Service Check Connector (Navigation)		202	92	34 / 17
ODS Unit Connector		102	337
	Connector A
	Connector B
	Connector C
	Connector D			64 / 1
Component Connectors
Oil Pressure Switch		172	14
	A/T			6 / 44
	M/T			12 / 41
Outer Side Front Passenger's Weight Sensor (USA, Canada)		100	150	64 / 12
Output Shaft (Countershaft) Speed Sensor			151
	A/T	177		8 / 11
	M/T	227		14 / 1
Outside Air Temperature Sensor		161	93	16 / 21
Paddle Shifter- (Downshift Switch) (A/T)		39	174	61 / 2
Paddle Shifter + (Upshift Switch) (A/T)		39	175	61 / 5
Parking Brake Switch		107	15	32 / 42
Passenger's Under-dash Fuse/Relay Box		88	338
	Connector A			32 / 27
	Connector B			22 / 30
	Connector C (Not Used)			22 / 30
	Connector D			34 / 15
	Connector E			22 / 29
	Connector F (Not Used)			22 / 29
	Connector G (without SH-AWD)			48 / 15
	Connector H (SH-AWD)			52 / 19
Power Control Unit (Keyless Access)		188	340
	Connector A			28 / 55
	Connector B			28 / 54
	Connector C			28 / 59
Power Mirror Control Unit		134	301	56 / 10
Power Mirror Switch		129	272	56 / 5
Power Window Master Switch		130	315	56 / 2
Power Seat Control Unit		93	341
	Connector A			62 / 8
	Connector B			62 / 10
Radiator Fan Motor		170	94	16 / 20
Rear A/F Sensor (B1, S1)			216
	A/T	16		4 / 9
	M/T	16		10 / 9
Rear Bumper LF Antenna (Keyless Access)		184	95
	SH-AWD			44 / 23
	without SH-AWD			40 / 21
Rear Individual Map Lights		146	243	54 / 8
Rear Interior LF Antenna		112	96
	SH-AWD			42 / 8
	without SH-AWD			38 / 5
Rear Safing Sensor		112	176	46 / 7
Rear Secondary HO2S (B1, S2)		16	177
	A/T			4 / 12
	M/T			10 / 12
Component Connectors
Rear Shelf LF Antenna (Keyless Access)		213	97
	SH-AWD			50 / 1
	without SH-AWD			48 / 1
Rear Window Defogger Coil		124	350
	Connector A
SH-AWD				42 / 9
without SH-AWD				38 / 8
	Connector B			38 / 8
SH-AWD				42 / 10
without SH-AWD				38 / 9
Rear Window Defogger			16
	Connector A	122
SH-AWD				42 / 14
without SH-AWD				38 / 11
	Connector B	128		38 / 11
SH-AWD				52 / 7
without SH-AWD				48 / 6
Rear Window Defogger Noise Condenser
	SH-AWD	153	83	44 / 31
	without SH-AWD	125	98	38 / 7
Rearview Camera (Navigation)		216
Recirculation Control Motor		77	231	66 / 4
Remote Engine Start Connector (Option Connector)		49	99	28 / 69
Remote Slot (Keyless Access)		185	281	30 / 9
Remote Slot Control Unit (Keyless Access)		201	316	30 / 23
Remote Starting Control Unit (Remote Starting System (Acura Accessory))			365
Remote Starting Control Unit In-line Fuse 1 (Remote Starting System (Acura Accessory))
	Keyless Access		366
	without Keyless Access		367
Remote Starting Control Unit In-line Fuse 2 (Remote Starting System (Acura Accessory))
	Keyless Access		364
	without Keyless Access		367
Reverse Lockout Solenoid (M/T)		221	371	10 / 22
RF Unit 1 (Keyless Access)		203	152	32 / 41
RF Unit 2 (Keyless Access)		209	153
	SH-AWD			50 / 8
	without SH-AWD			48 / 23
Right Back-up Light		158	100
	SH-AWD			42 / 21
	without SH-AWD			38 / 19
Right Brake Light/Taillight		158	154
	SH-AWD			42 / 18
	without SH-AWD			38 / 16
Right Clutch Electromagnetic Coil/Search Coil (SH-AWD)		219	178	69 / 3
Component Connectors
Right Corner Back-up Sensor (Acura Accessory)			357
Right Fog Light		160	101	22 / 19
Right Front Impact Sensor		164	102	22 / 20
Right Front Side Marker Light		166	103	22 / 24
Right Front TPMS Initiator		168	155	22 / 26
Right Front Turn Signal/Parking Light		160	156	22 / 18
Right Front Wheel Speed Sensor		167	104	22 / 25
Right Headlight			342
	Connector A	166		20 / 13
	Connector B	28		20 / 14
Right License Plate Light		183	105
	SH-AWD			44 / 25
	without SH-AWD			40 / 23
Right Middle Back-up Sensor (Acura Accessory)			358
Right Power Mirror		135	284	58 / 1
Right Rear Door Lock Actuator/Knob Switch		141	244	60 / 3
Right Rear Door Speaker (Navigation)		211	106	60 / 1
Right Rear Door Switch		121	17
	SH-AWD			50 / 13
	without SH-AWD			48 / 8
Right Rear Power Window Motor		142	107	60 / 4
Right Rear Power Window Switch		140	278	60 / 2
Right Rear Side Marker Light		158	108
	SH-AWD			42 / 19
	without SH-AWD			38 / 17
Right Rear Speaker		149	109
	SH-AWD			50 / 4
	without SH-AWD			48 / 5
Right Rear TPMS Initiator		182	157
	SH-AWD			52 / 23
	without SH-AWD			48 / 17
Right Rear Turn Signal Light		158	110
	SH-AWD			42 / 20
	without SH-AWD			38 / 18
Right Rear Wheel Speed Sensor		180	111
	SH-AWD			52 / 25
	without SH-AWD			48 / 18
Right Side Curtain Airbag Inflator		127	112	46 / 6
Right Side Impact Sensor (1st)		120	179	46 / 2
Right Side Impact Sensor (2nd)		126	113	46 / 5
Right Side Turn Signal Light		138	114
Right Tweeter		115	115	30 / 20
Component Connectors
Rocker Arm Oil Control Solenoid		173	18
	A/T			6 / 43
	M/T			12 / 40
Rocker Arm Oil Pressure Switch		172	116
	A/T			6 / 45
	M/T			12 / 42
Roof Console		145	289	54 / 3
Secondary Fuel Gauge Sending Unit (SH-AWD)		206	180	42 / 11
Security Hood Switch		162	117	16 / 2
SH-AWD Control Unit (SH-AWD)		214	343
	Connector A			50 / 9
	Connector B			50 / 10
SH-AWD Relay (SH-AWD)		214	344	50 / 11
Shift Control Solenoid Valve (A/T)
	Connector A		19	8 / 2
	Connector B		20	8 / 5
	Connector C		21	8 / 3
	Connector D		22	8 / 4
SRS Unit		69	345
	Connector A			32 / 32
	Connector B			46 / 16
Starter
	A/T	20
	M/T	222
Starter Solenoid			23
	A/T	20		8 / 1
	M/T	222		14 / 2
Steering Angle Sensor		42	202	30 / 1
Stereo Amplifier		156	346
	Connector A
SH-AWD				52 / 27
without SH-AWD				48 / 20
	Connector B			48 / 20
SH-AWD: Navigation				52 / 26
SH-AWD: without Navigation				52 / 26
without SH-AWD: Navigation				48 / 19
without SH-AWD: without Navigation				48 / 19
Subwoofer		151	118
	SH-AWD			50 / 3
	without SH-AWD			48 / 4
Sunlight Sensor		64	119	30 / 13
Test Tachometer Connector (Mexico)			120
TP Sensor/Throttle Actuator		17	217
	A/T			4 / 16
	M/T			10 / 15
TPMS Control Unit		53	290	26 / 43
Component Connectors
Transmission Range Switch (A/T)		26	245	8 / 10
Trunk Lid Opener Main Switch		79	121	34 / 16
Trunk Lid Opener Solenoid/Latch Switch		157	158
	SH-AWD			42 / 22
	without SH-AWD			38 / 20
Trunk Lid Opener/Fuel Fill Door Opener Switch		131	218	56 / 13
Trunk Lid Spoiler Switch (Keyless Access)		216	159
Trunk Light		150	122
	SH-AWD			50 / 2
	without SH-AWD			48 / 2
Under-hood Fuse/Relay Box		30	347
	Connector A (ELD Unit)			16 / 9
	Connector B			16 / 8
	Connector C			16 / 7
USB Adapter Unit (without Navigation)		106	348
	Connector A			32 / 47
	Connector B			32 / 47
USB Jack		104	203
USB Jack Connector		104	351
VSA Modulator-Control Unit		4	312	20 / 12
VSA OFF Switch		34	204	28 / 57
Washer Fluid Level Switch (Canada, Mexico)			123	22 / 21
Windshield Washer Motor		165	124	22 / 23
Windshield Wiper Motor		33	181	16 / 11
Wiper/Washer Switch		41	235	30 / 6
XM Antenna (XM Radio, AcuraLink)		148	125
XM Antenna Lead Connector (XM Radio, AcuraLink)		118	372
Yaw Rate-Lateral Acceleration Sensor (without SH-AWD)		109	182	32 / 33
Yaw Rate-Lateral/Longitudinal Acceleration Sensor (SH-AWD)			183	32 / 33
	A/T	109
	M/T	226
XM Receiver (XM Radio)		66	349
	Connector A			36 / 28
	Connector B			36 / 28
