Special Tools

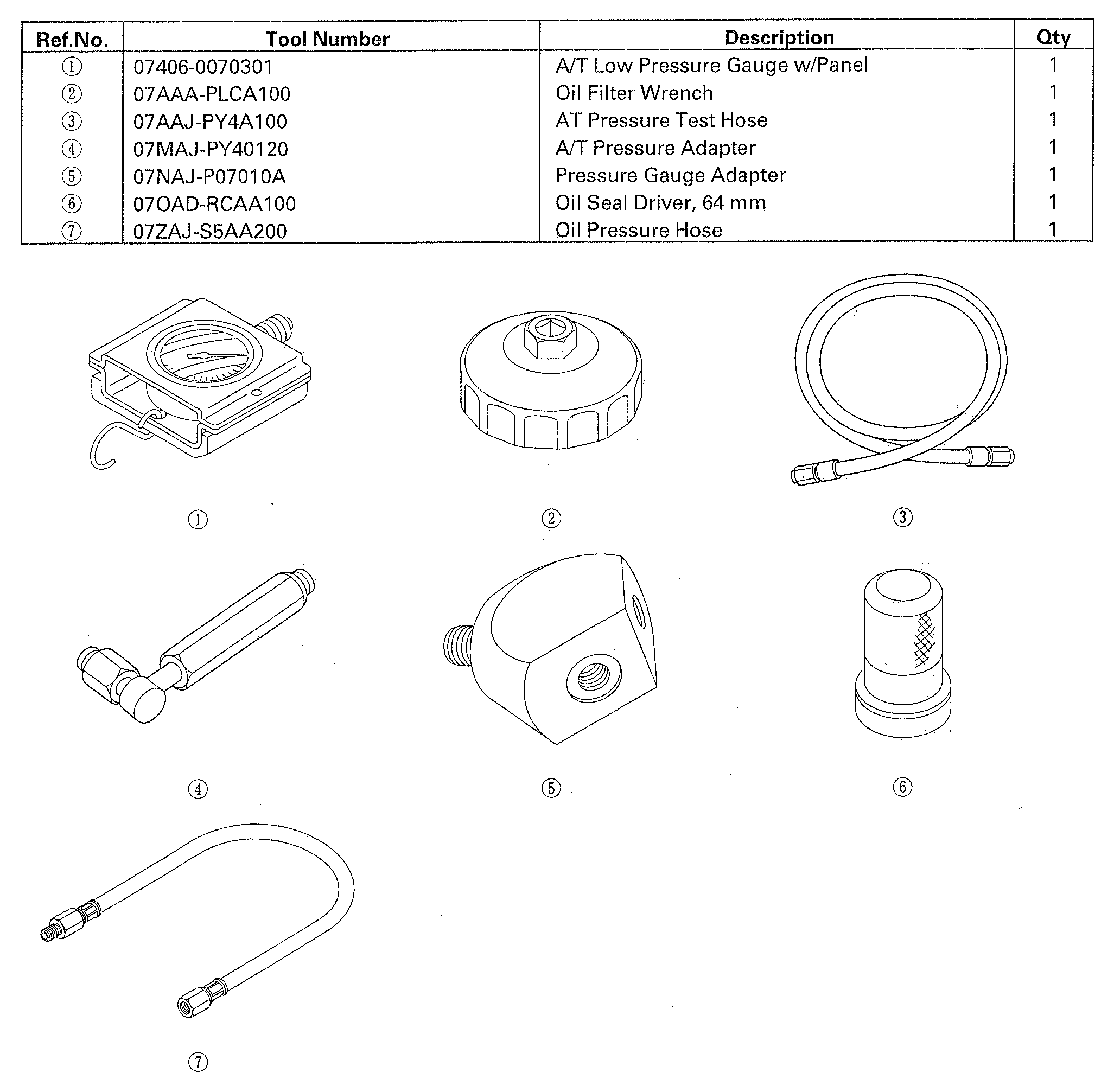

Fig 1: Identifying Special Tools
Courtesy of AMERICAN HONDA MOTORS CO., INC.
Courtesy of AMERICAN HONDA MOTORS CO., INC.
