Auxiliary Jack Assembly Connector End View (View 188)
GRN
Center Console
On Console Sub-harness

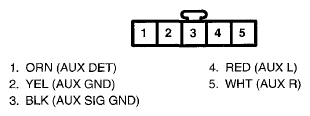

Fig 1: Auxiliary Jack Assembly Connector Terminal (View 188)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
