C501 Connector End View (View 295)
WHT
Under Middle of Dash
Connects A/C Wire Harness to Audio Wire Harness

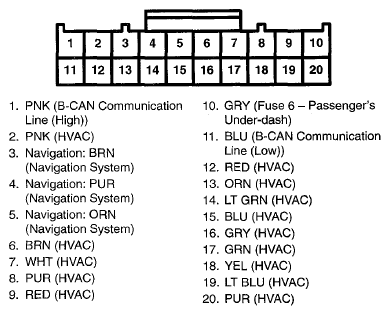

Fig 1: C501 Connector Terminal (View 295)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
