Driver's Junction Box 2 Connector End View (View 328)

Behind Left Side of Dash
On Dashboard Wire Harness
Connector A
- BLU

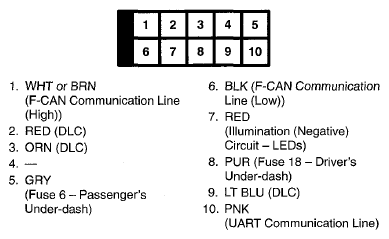

  Fig 1: Driver's Junction Box 2 Connector Terminal (Connector A) (View 328)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector B
- BRN

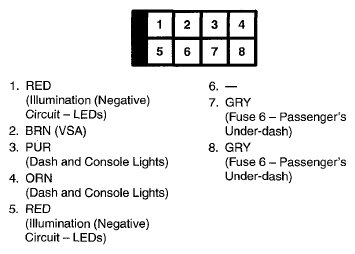

  Fig 2: Driver's Junction Box 2 Connector Terminal (Connector B) (View 328)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector C
- BRN

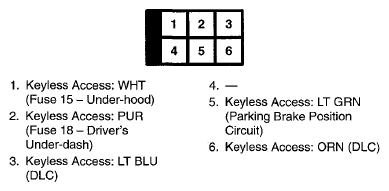

  Fig 3: Driver's Junction Box 2 Connector Terminal (Connector C) (View 328)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector D
- WHT

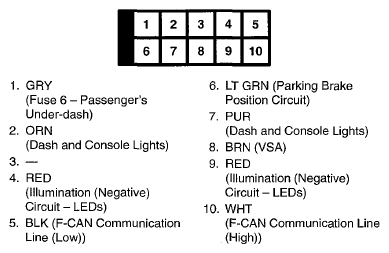

  Fig 4: Driver's Junction Box 2 Connector Terminal (Connector D) (View 328)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector E
- WHT

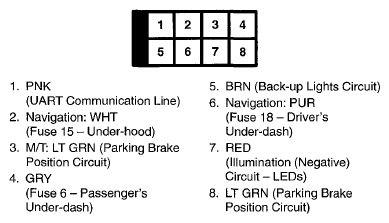

  Fig 5: Driver's Junction Box 2 Connector Terminal (Connector E) (View 328)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector F
- WHT

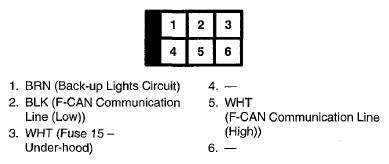

  Fig 6: Driver's Junction Box 2 Connector Terminal (Connector F) (View 328)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector G
- LT GRN

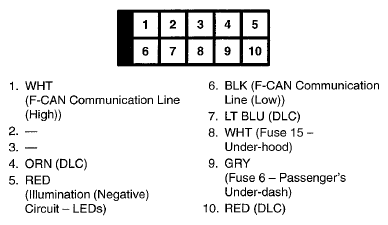

  Fig 7: Driver's Junction Box 2 Connector Terminal (Connector G) (View 328)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector H
- BLU

  Fig 8: Driver's Junction Box 2 Connector Terminal (Connector H) (View 328)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
