Driver's Power Seat Front Up-Down Motor/Position Sensor Connector End View (View 191)
WHT
Under Driver's Seat
On Driver's Seat Wire Harness

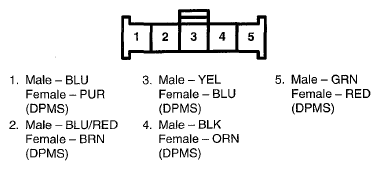

Fig 1: Driver's Power Seat Front Up-Down Motor/Position Sensor Connector Terminal (View 191)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
