Front Passenger's Power Window Switch Connector End View (View 314)
GRY
Front Passenger's Door
On Front Passenger's Door Wire Harness

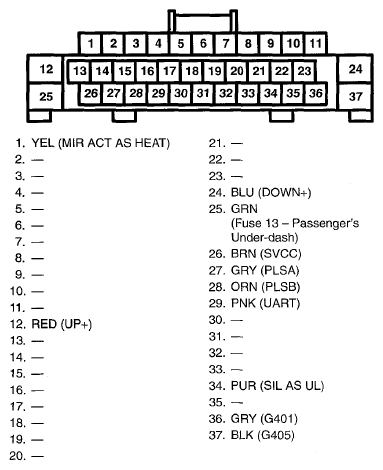

Fig 1: Front Passenger's Power Window Switch Connector Terminal (View 314)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
