ODS Unit Connector End View (View 337)

BLK
Left Side of Front Passenger's Seat Back

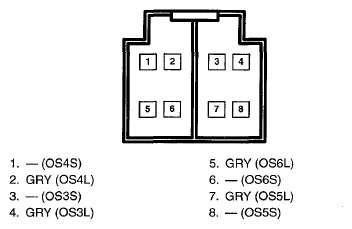

Connector A
- To Side Element of Sensor

  Fig 1: ODS Unit Connector Terminal (Connector A) (View 337)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

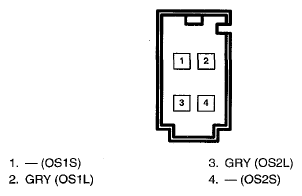

Connector B
- To Lower Element of Sensor

  Fig 2: ODS Unit Connector Terminal (Connector B) (View 337)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

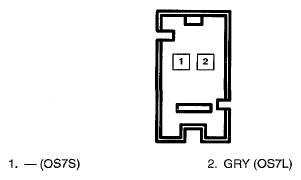

Connector C
- To Upper Element of Sensor

  Fig 3: ODS Unit Connector Terminal (Connector C) (View 337)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

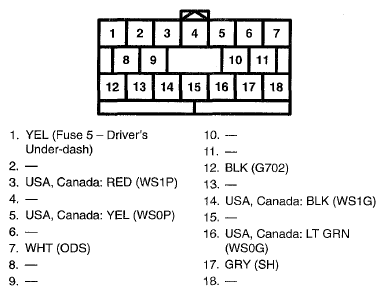

Connector D
- On Front Passenger's Seat Wire Harness

  Fig 4: ODS Unit Connector Terminal (Connector D) (View 337)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
