Output Shaft (Countershaft) Speed Sensor Connector End View (View 151)
BLK
Under Transmission Housing
On Engine Wire Harness

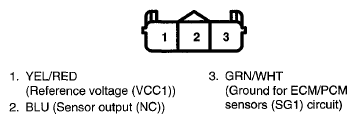

Fig 1: Output Shaft (Countershaft) Speed Sensor Connector Terminal (View 151)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
