Power Mirror Switch Connector End View (View 272)
WHT
Driver's Door
On Driver's Door Switch Harness

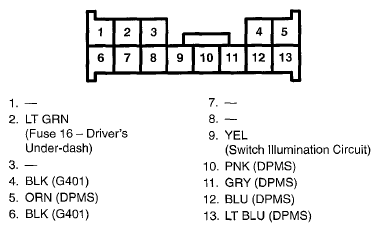

Fig 1: Power Mirror Switch Connector Terminal (View 272)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
