SRS Unit Connector End View (View 345)

YEL
Behind Middle of Dash
Connector A
- On Dashboard Wire Harness

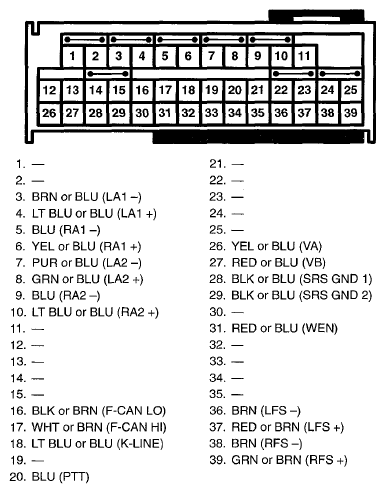

  Fig 1: SRS Unit Connector Terminal (Connector A) (View 345)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector B
- On SRS Floor Wire Harness

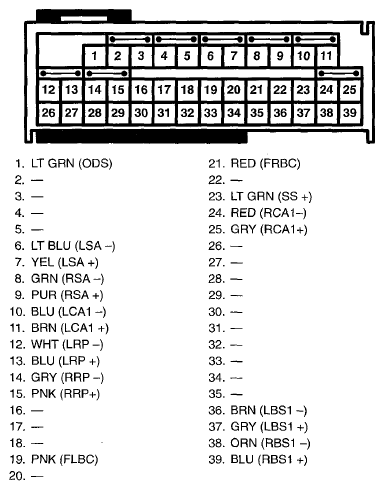

  Fig 2: SRS Unit Connector Terminal (Connector B) (View 345)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
