Stereo Amplifier Connector End View (View 346)
- GRY
- Right Side of Trunk
- On Right Side Wire Harness

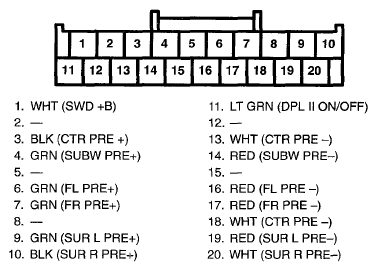

Connector A
Courtesy of AMERICAN HONDA MOTOR CO., INC.

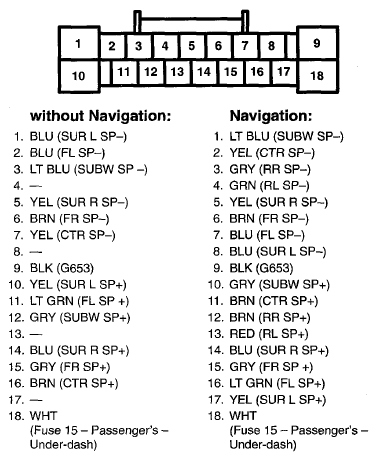

Connector B
without Navigation:
Courtesy of AMERICAN HONDA MOTOR CO., INC.

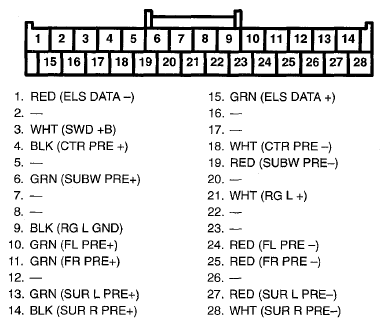

Navigation:
Courtesy of AMERICAN HONDA MOTOR CO., INC.
