USB Jack Connector End View (View 351)

GRY
Center Console
Connects USB Adapter Sub-harness to USB Adapter Harness (without Navigation)
Connects USB Adapter Sub-harness to Dashboard Wire Harness (Navigation)

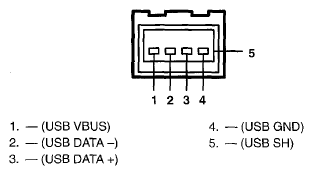

Fig 1: USB Jack Connector Terminal (View 351)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
