Under-Hood Fuse/Relay Box Connector End View (View 347)

Left Rear of Engine Compartment
Connector A
- WHT
- On Left Engine Compartment Wire Harness

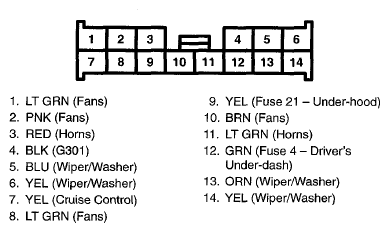

  Fig 1: Under-Hood Fuse/Relay Box Connector Terminal (Connector A) (View 347)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector B
- WHT
- On Left Engine Compartment Wire Harness

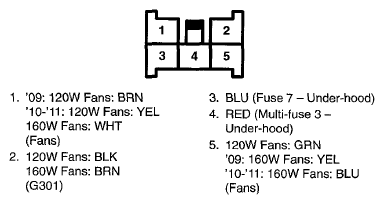

  Fig 2: Under-Hood Fuse/Relay Box Connector Terminal (Connector B) (View 347)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector C
- WHT
- On Left Engine Compartment Wire Harness

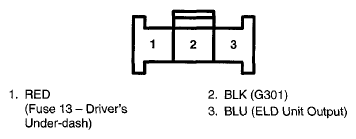

  Fig 3: Under-Hood Fuse/Relay Box Connector Terminal (Connector C) (View 347)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Relays:

A/C Compressor Clutch Relay
1. Internal Connection (Fuse 20 - Under-hood)
2. RED (Relay Output)
3. GRY (Relay Control)
4. LT GRN (Fuse 16-Driver's Under-dash)
A/C Condenser Fan Relay
1. GRN (Multi-fuse 3 - Under-hood)
2. 120W Fans: BLU 160W Fans: RED (Relay Output)
3. GRN (Relay Control)
4. PNK (Fuse 16 - Driver's Under-dash)
Blower Motor Relay
1. Internal Connection (Fuse 8 - Under-hood)
2. WHT (Relay Output)
3. BLK (G302)
4. LT GRN (Fuse 16 - Driver's Under-dash)
ETCS Control Relay
1. RED (Fuse 18 - Under-hood)
2. BLU (Relay Output)
3. WHT (Relay Control)
4. GRN (Fuse 17 - Under-hood)
Ignition Coil Relay
1. BLU (Fuse 13 - Under-hood)
2. WHT (Relay Output)
3. RED (Relay Control)
4. BLU (Fuse 13 - Under-hood)
PGM-FI Main Relay
1. WHT (Fuse 17 - Under-hood)
2. GRN (Relay Output)
3. RED (Relay Control)
4. WHT (Fuse 17 - Under-hood)
PGM-FI Sub-Relay
1. GRN (Fuse 14 - Under-hood)
2. BLU (Relay Output)
3. GRY (Relay Control)
4. GRN (Fuse 14 - Under-hood)
Rear Window Defogger Relay
1. Internal Connection (Fuse 4 - Under-hood)
2. GRN (Relay Output)
3. BRN (Relay Control)
4. LT GRN (Fuse 16-Driver's Under-dash)
Starter Cut Relay 2
1. BRN (Multi-fuse 3 - Under-hood)
2. WHT (Relay Output)
3. PNK (Relay Control)
4. A/T: LT GRN M/T: GRY (Relay Control)
Fuses: Multi-fuse 1
1. Internal Connection
2. RED
Multi-fuse 2
1. WHT
2. RED
3. WHT
4. GRN
5. Headlight Washer: GRN
6. SH-AWD: WHT
Multi-fuse 3
1. WHT
2. 160W Fans: GRN
3. 120W Fans: GRN
4. YEL
5. BLU
6. PNK
7. RED
8. BLU
Fuse 4
1. Internal Connection
2. Internal Connection
Fuse 5
1. Internal Connection
2. -
Fuse 6
1. Internal Connection
2. -
Fuse 7
1. Internal Connection
2. SH-AWD: BLU
Fuse 8
1. Internal Connection
2. Internal Connection
Fuse 9
1. Internal Connection
2. WHT
Fuse 10
1. Internal Connection
2. RED
Fuse 11
1. Internal Connection
2. BLU
Fuse 12
1. Internal Connection
2. -
Fuse 13
1. Internal Connection
2. BLU
Fuse 14
1. Internal Connection
2. GRN
Fuse 15
1. Internal Connection
2. WHT
Fuse 16
1. Internal Connection
2. LT BLU
Fuse 17
1. Internal Connection
2. WHT
Fuse 18
1. Internal Connection
2. RED
Fuse 19
1. Internal Connection
2. YEL
Fuse 20
1. Internal Connection
2. Internal Connection
Fuse 21
1. YEL
2. BLU
