VSA OFF Switch Connector End View (View 204)
WHT
Left Side of Dash
On Dashboard Wire Harness

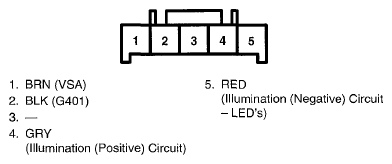

Fig 1: VSA OFF Switch Connector Terminal (View 204)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
