Windshield Wiper Motor Connector End View (View 181)
BLK
Under Left Side of Cowl Cover
On Left Engine Compartment Wire Harness

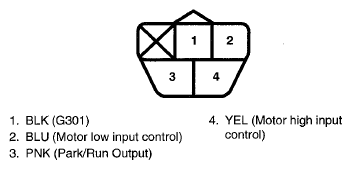

Fig 1: Windshield Wiper Motor Connector Terminal (View 181)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
