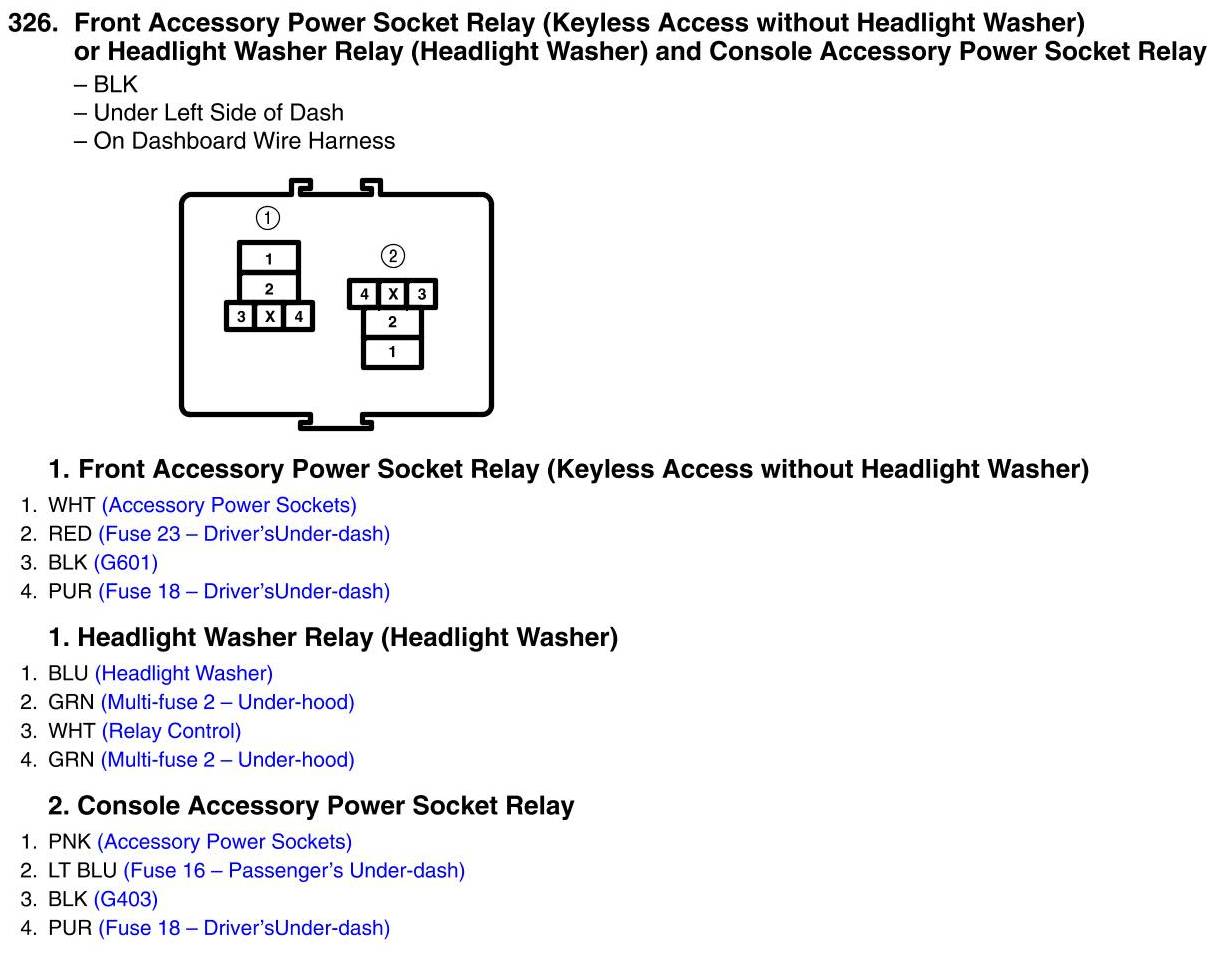

View 326 - Front Accessory Power Socket Relay Or Headlight Washer Relay And Console Accessory Power Socket Relay Connector View
