Navigation System Forced Starting of Display (With Navigation)

Navigation System Forced Starting of Display

Special Tools Required

- SCS service connector 07PAZ-0010100

1. Turn the ignition switch to LOCK (0).

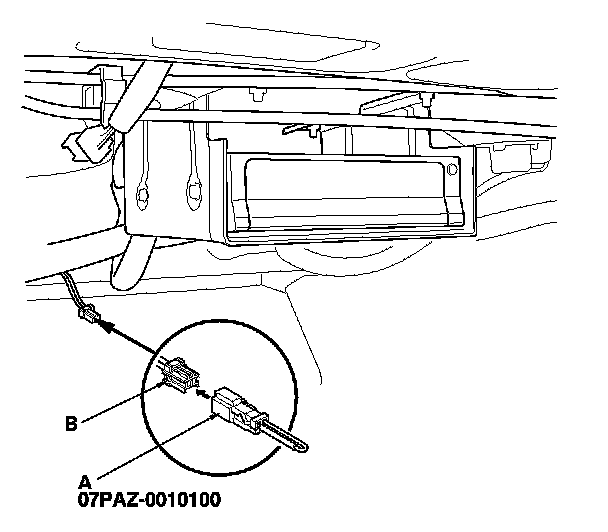

2. Connect the SCS service connector (A) to the navigation service connector (B) located behind the navigation unit.

3. Turn the ignition switch to ON (II).

4. Check that the diagnosis menu for the picture diagnosis starts up, and then changes to the System Links menu.
NOTE: If the display fails to display the System Links screen, refer to no picture is displayed. Symptom Troubleshooting
