Navigation System Voice Control Switch Test (With Navigation)




Navigation System Voice Control Switch Test

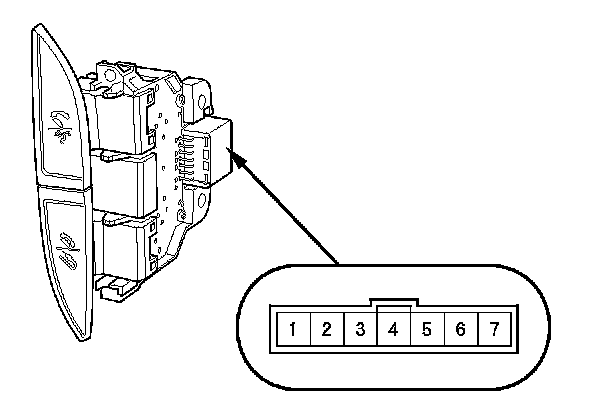

1. Remove the voice control switch.

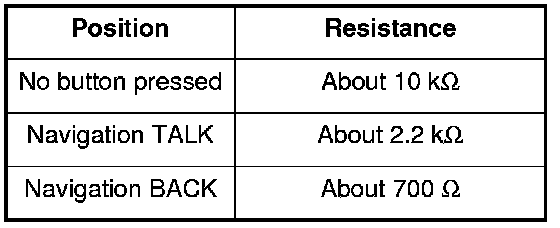

2. Measure the resistance between terminals No. 3 and No. 5 in each switch position according to the table.





3. If the resistance is not as specified, replace the voice control switch.
