View 212 - Electrical Compass Unit Connector View (Electrical Compass)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

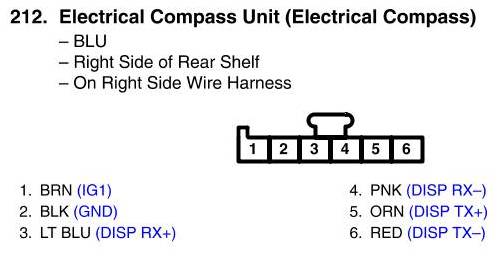

View 212 - Electrical Compass Unit Connector View (Electrical Compass)
