View 266 - Moonroof Control Unit/Motor Connector View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

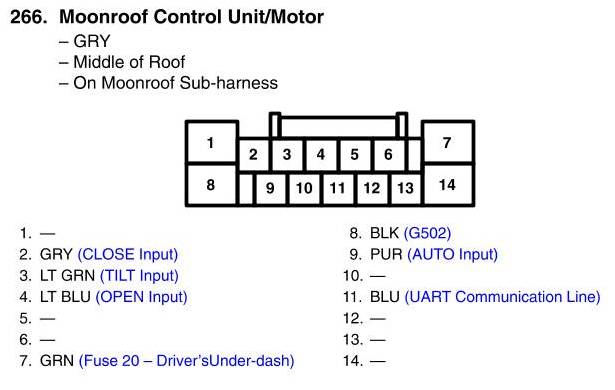

View 266 - Moonroof Control Unit/Motor Connector View
