CKP Pulse Plate Replacement




CKP Pulse Plate Replacement

1. Remove the crankshaft. Crankshaft and Piston Removal

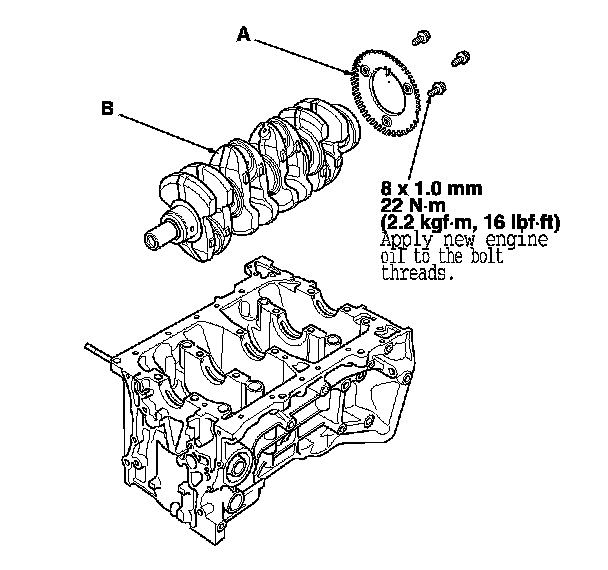

2. Remove the crankshaft position (CKP) pulse plate (A) from the crankshaft (B).

3. Install the CKP pulse plate to the crankshaft.

4. Install the crankshaft. Crankshaft Installation
