Main Valve Body Spring Specifications (A/T)

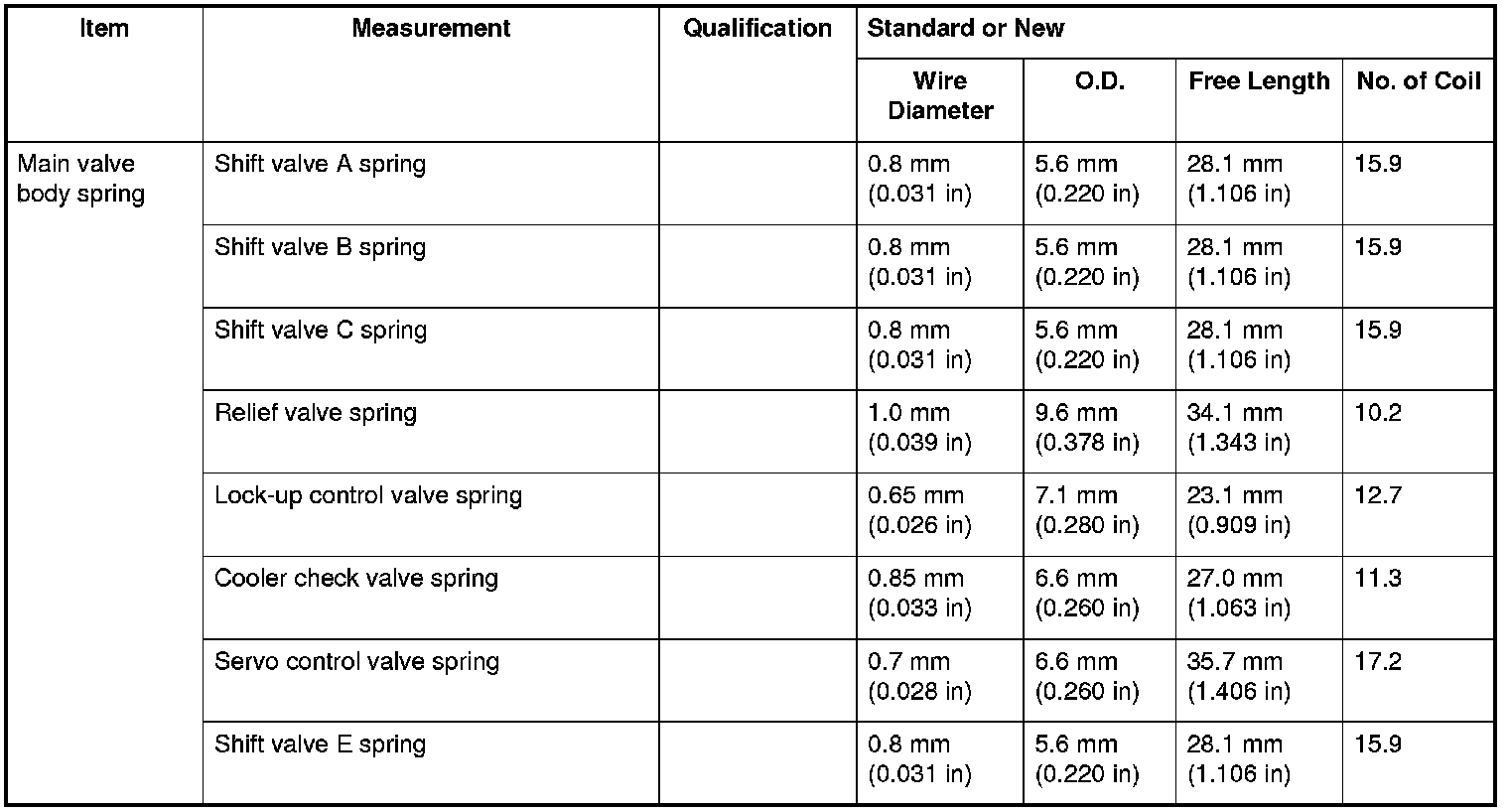

Main valve body spring Specifications

Main valve body spring Main Valve Body Disassembly, Inspection, and Reassembly
