Audio-Navigation Switch Panel for Inputs and Outputs (With ELS Audio System)

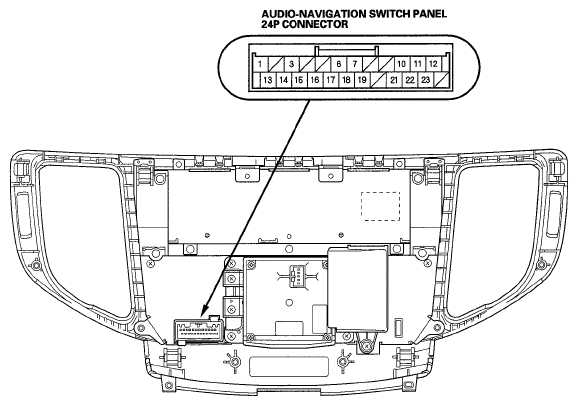

Audio-Navigation Switch Panel 24P Connector
WIRE CONNECTOR REFERENCE CHART
| Cavity | Wire | Connects to |
|---|---|---|
| 1 | GRN | Audio unit (ENC-) |
| 3 | BLU | Audio unit (DUET CONT) |
| 6 | WHT | Audio unit (OPERA TX) |
| 7 | RED | Climate control unit (DISP CLK) |
| 10 | BLK | Ground (G401) (GND) |
| 11 | RED | Dashlight brightness controller (ILL-LED) |
| 12 | RED | Dashlight brightness controller (ILL-BULB) |
| 13 | BLK | Audio unit (ENC+) |
| 14 | BLU | Audio unit (PWR SW) |
| 15 | GRN | Audio unit (DUET RX (UART)) |
| 16 | RED | Audio unit (DUET TX (UART)) |
| 17 | PNK | Audio unit (OPERA CONT) |
| 18 | RED | Audio unit (OPERA RX) |
| 19 | PUR | Climate control unit (DISP SI) |
| 21 | LT GRN | Audio-navigation switch panel power supply (IG2) |
| 22 | WHT | Constant power (+B) |
| 23 | GRY | Light-on signal (ILL+) |
