Gauge Control Module (L4) Connector End View

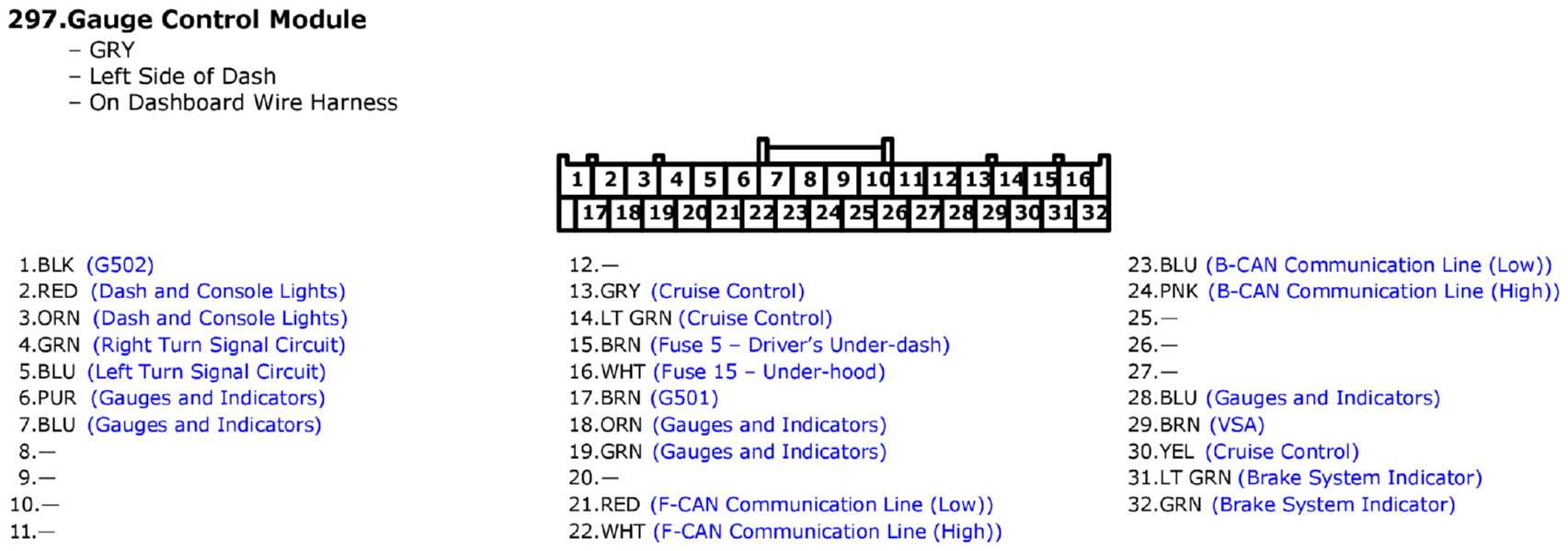

Fig 1: Gauge Control Module (L4) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
