A/T Gear Position Indicator Panel Light/Park Pin Switch/Shift Lock Solenoid (V6) Connector End View

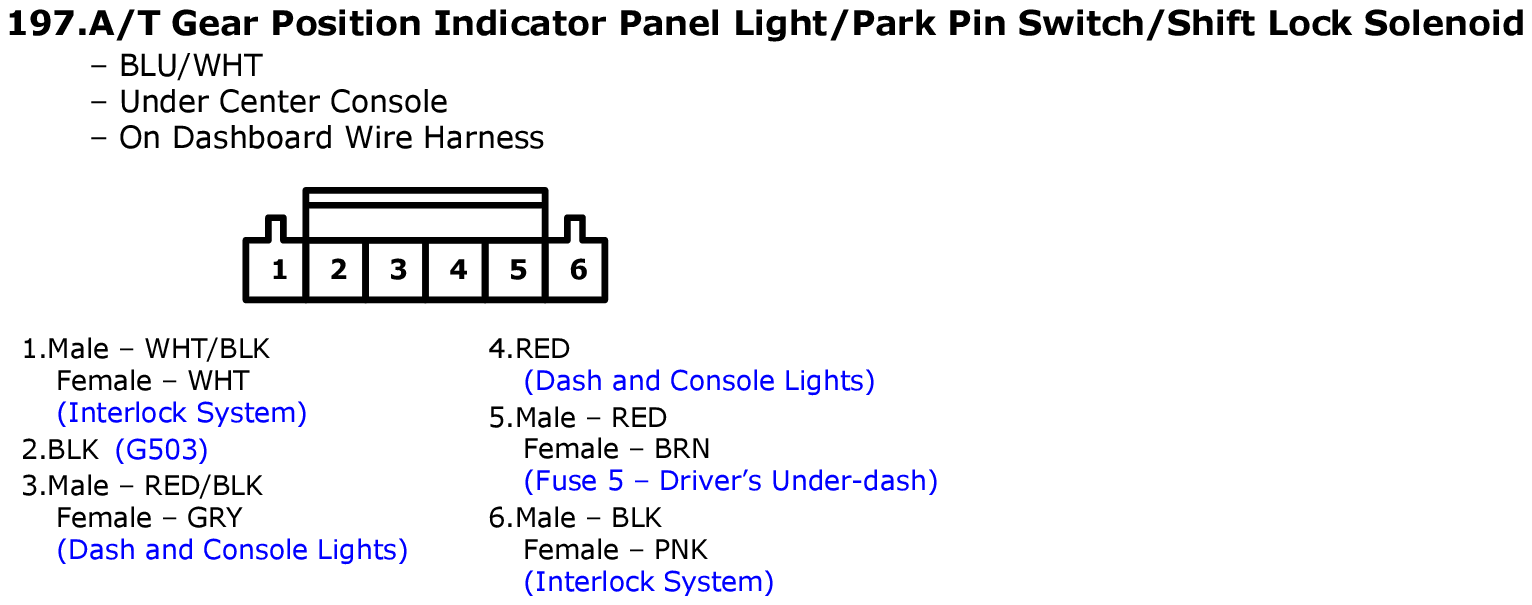

Fig 1: A/T Gear Position Indicator Panel Light/Park Pin Switch/Shift Lock Solenoid (V6) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
