Automatic Lighting Sensor/Sunlight Sensor (V6) Connector End View

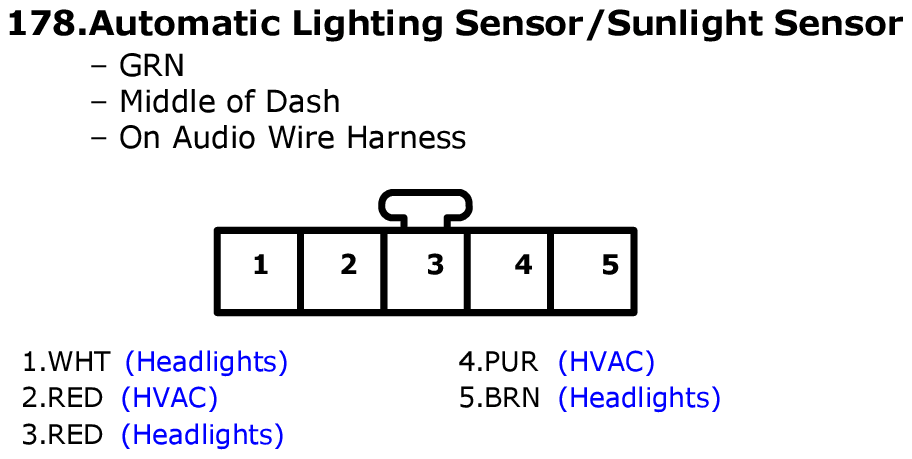

Fig 1: Automatic Lighting Sensor/Sunlight Sensor (V6) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
