Remote Starting Control Unit In-line Fuse and IG2 Relay (L4 Acura Accessory: A/T) Connector End View

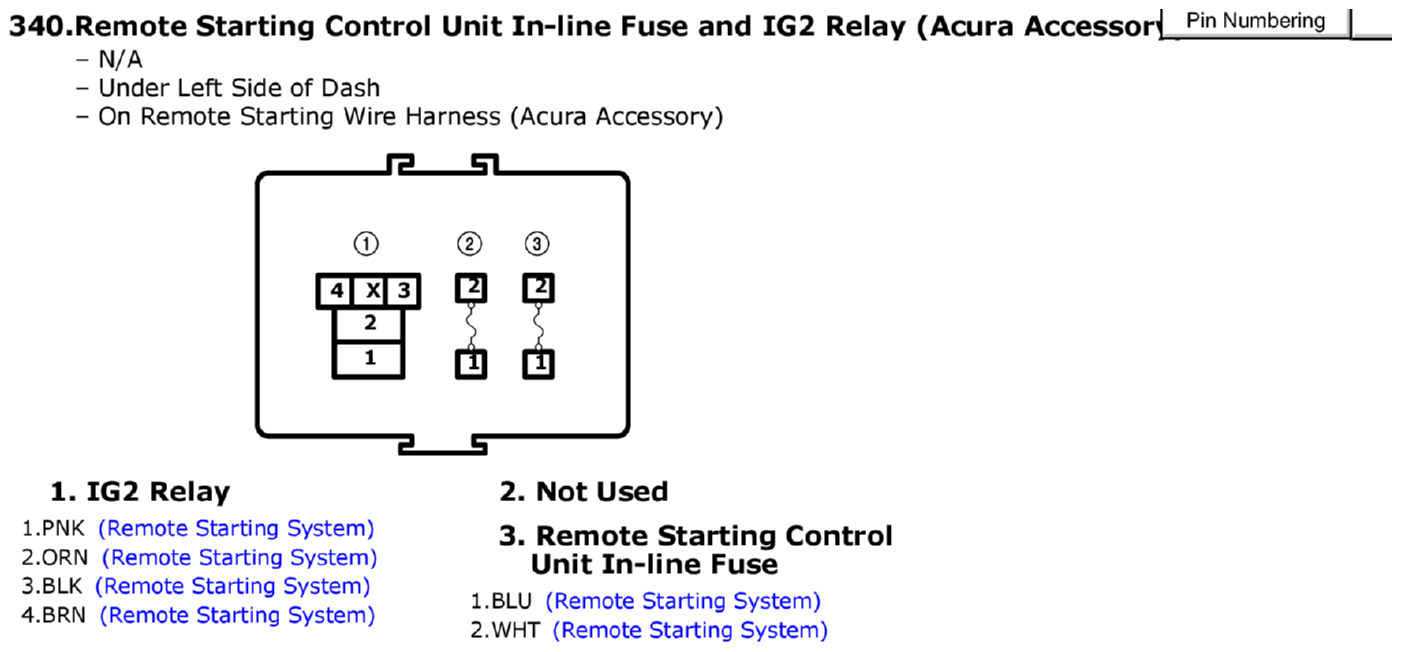

Fig 1: Remote Starting Control Unit In-line Fuse and IG2 Relay (L4 Acura Accessory: A/T) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
