Transmission Range Switch (L4:With ELS Audio System (with Navigation)) Connector End View

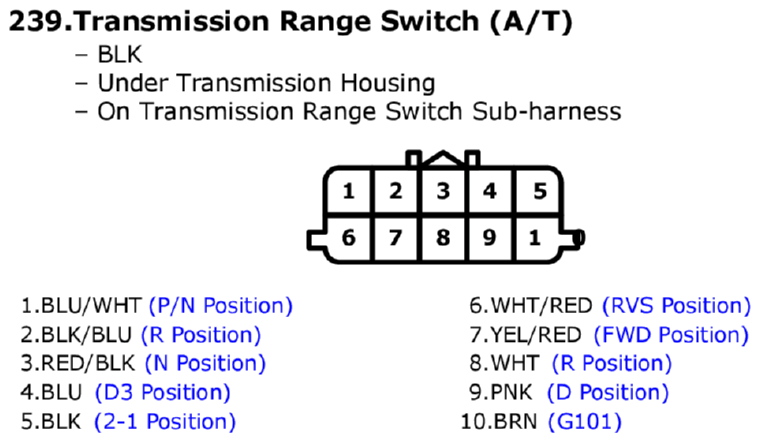

Fig 1: Transmission Range Switch (L4:With ELS Audio System (with Navigation)) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
