Accelerator Pedal Module Removal and Installation: Removal

Disconnect the accelerator pedal module connector (A)

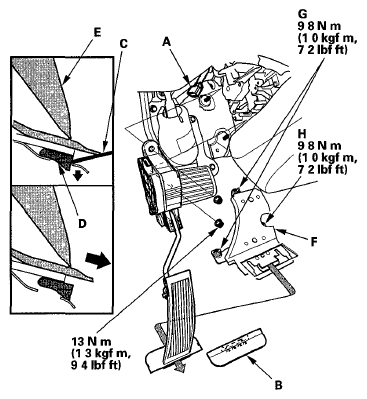

Fig 1: Accelerator Pedal Module With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the clip (B)
Using flat-tip screwdriver (C), push the lock (D), then remove the accelerator pedal module (E)
NOTE:
- The APP sensor is not available separately Do not disassemble the accelerator pedal module
- If the pedal stop (F) is damaged, pull back the carpet, remove the nuts (G) and bolt (H), and replace the pedal stop
