Air Cleaner Removal/Installation

Disconnect the MAF sensor/IAT sensor connector (A)

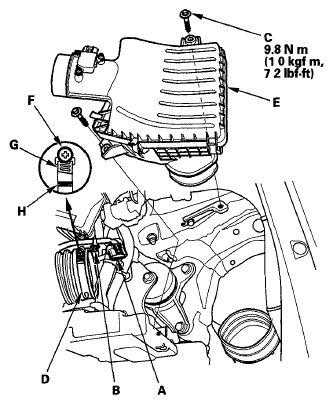

Fig 1: MAF Sensor/IAT Sensor Connector With Torque Specification

G05992560

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Remove the harness clamp (B) and bolts (C)
Loosen the band (D), then remove the air cleaner housing (E)
Install the parts in the reverse order of removal

NOTE: When torquing the screw of the hose band (F), align the edge of the hose band (G) with the mark (H) painted on the hose band
