How to display DTC on the gauge control module
WARNING: This page is about a different car, the 2008 Acura TSX, 2007 Acura TSX, 2006 Acura TSX, 2005 Acura TSX, and 2004 Acura TSX. However, it is still accessible from the selected car via links, so may be relevant.

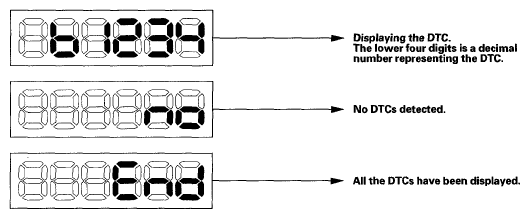

- Set the multiplex in Test Mode 1. While in Test Mode 1, the DTCs which have been detected and stored individually by various B-CAN (Body-controller Area Network) units, will be shown one by one on the ODO display when the communication between the Multiplex Integrated Control Unit (MICU) and the gauge control module is normal. To scroll through the DTCs, press the RESET knob on the gauge control module.
TEST MODE DISPLAY REFERENCE CHART
| MICU | 10 |
| Relay Control Module | 11 |
| Door Multiplex Control Unit | 30 |
| Gauge Control Module | 50 |
| Climate Control Unit | 51 |
| Combination Switch Control Unit | 70 |
| HandsFreeLink Control Unit | 94 |
| Power Seat Control Unit | 95 |
