Manifold Pressure/Vacuum Sensor: Service and Repair

MAP Sensor Replacement

1. Remove the engine cover. Intake Manifold Removal/Installation

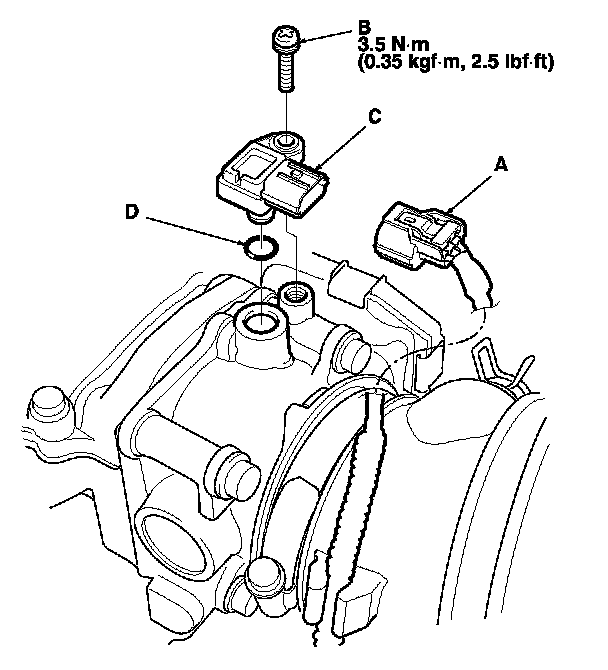

2. Disconnect the MAP sensor connector (A).

3. Remove the screw (B).

4. Remove the MAP sensor (C).

5. Install the parts in the reverse order of removal with a new O-ring (D).
