Pinout Values and Diagnostic Parameters




Fuel and Emissions System Description - Electronic Control Systems

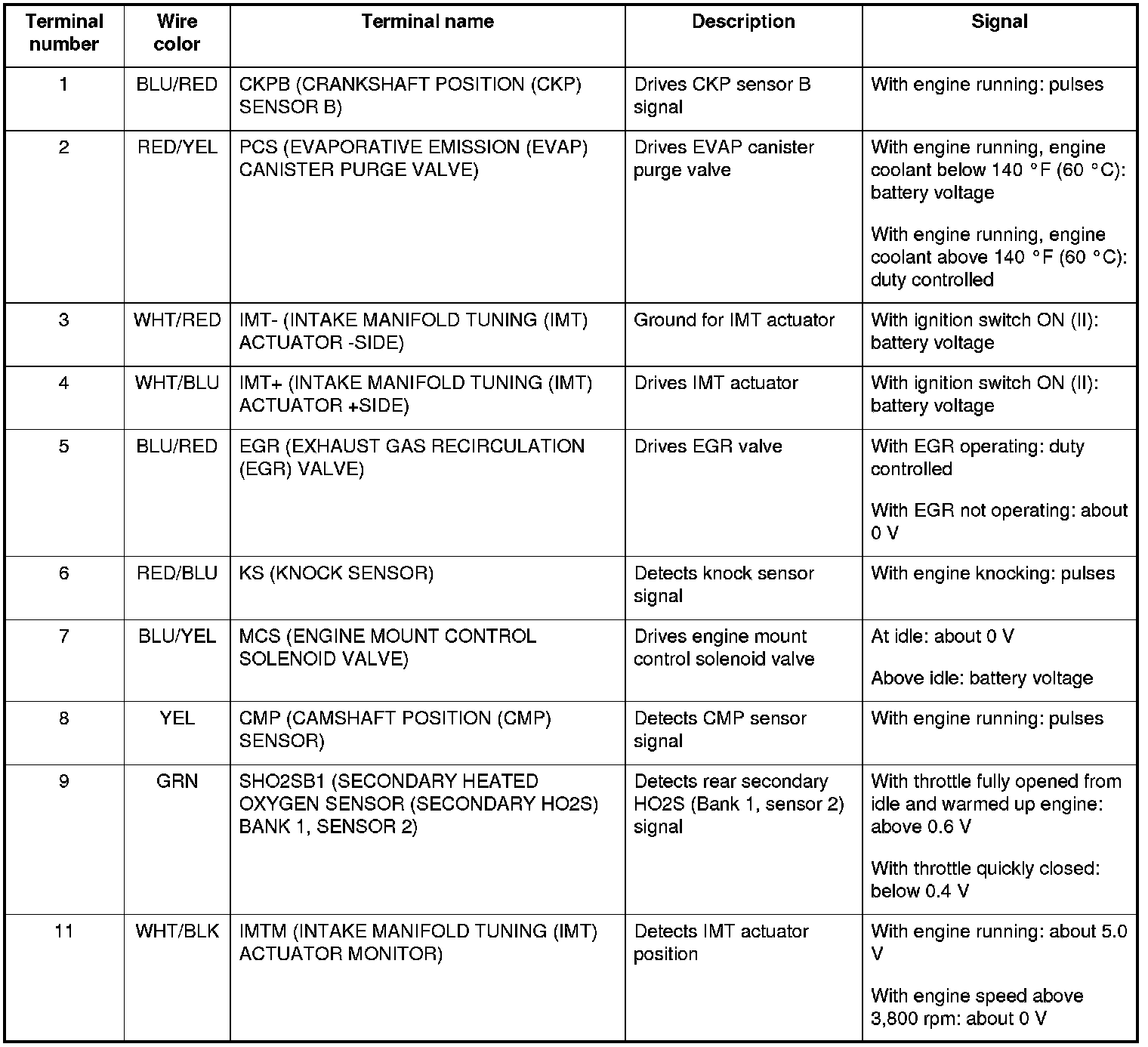

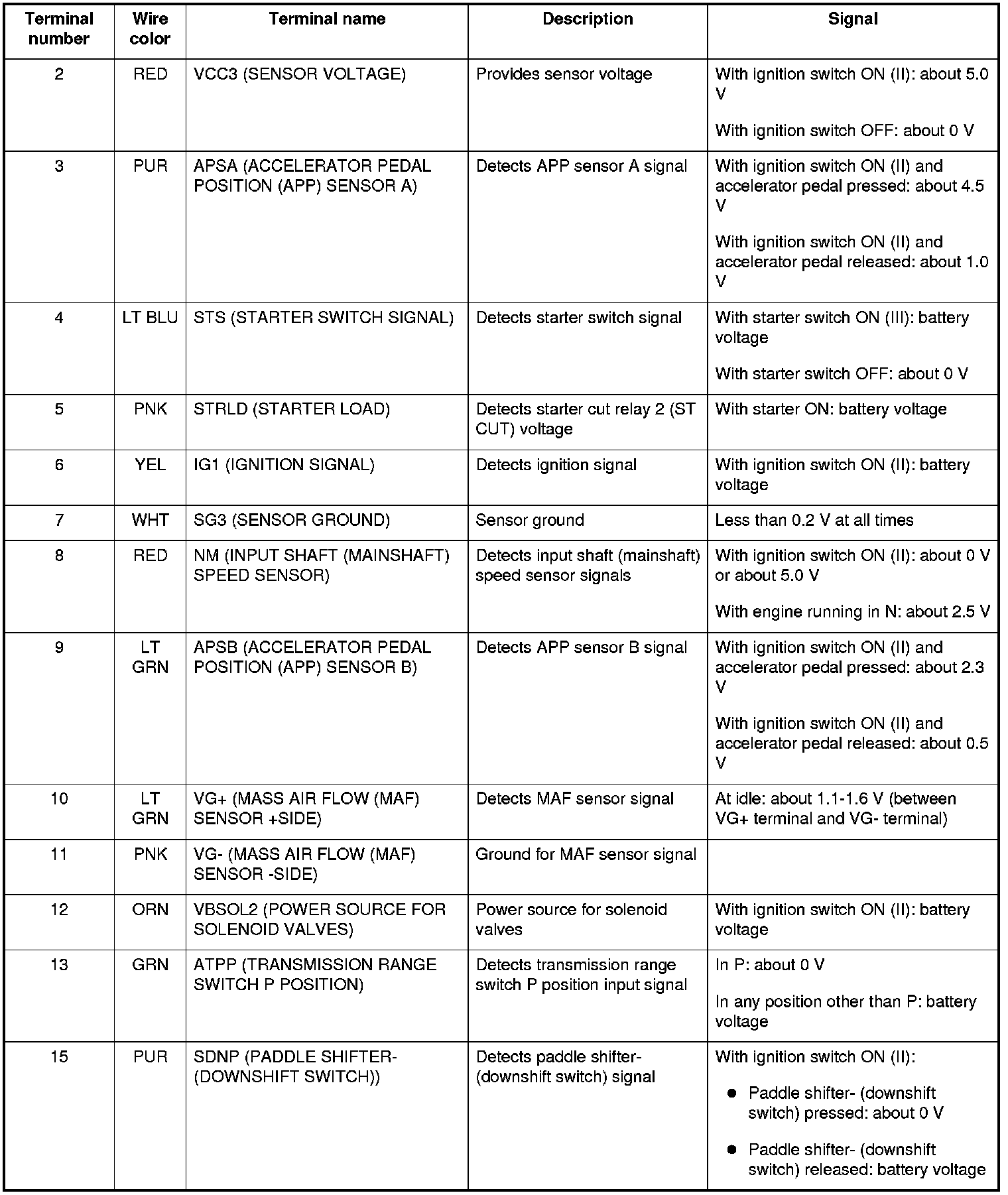

PCM Inputs and Outputs at PCM Connector A (31P)

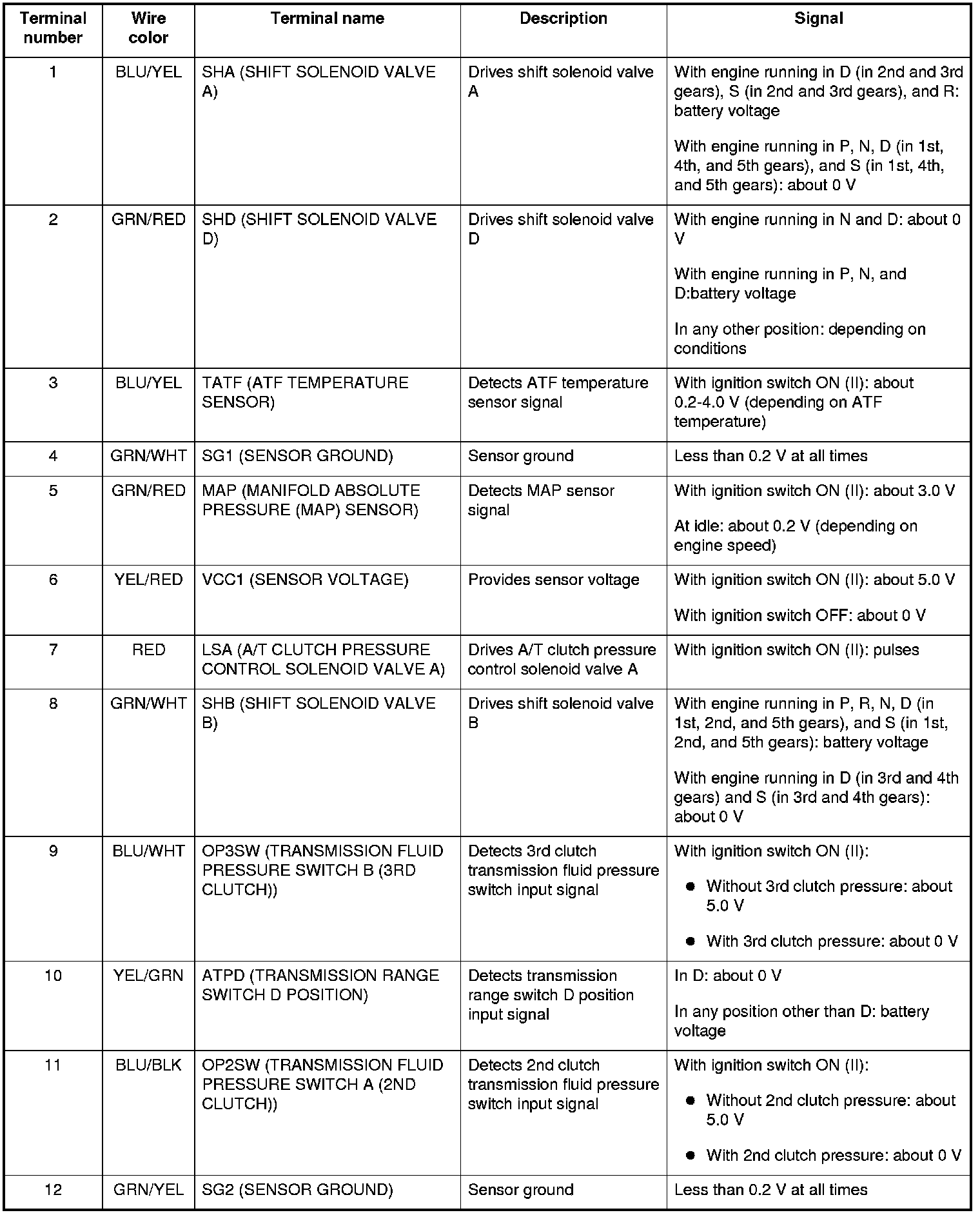

PCM Inputs and Outputs at PCM Connector A (31P)

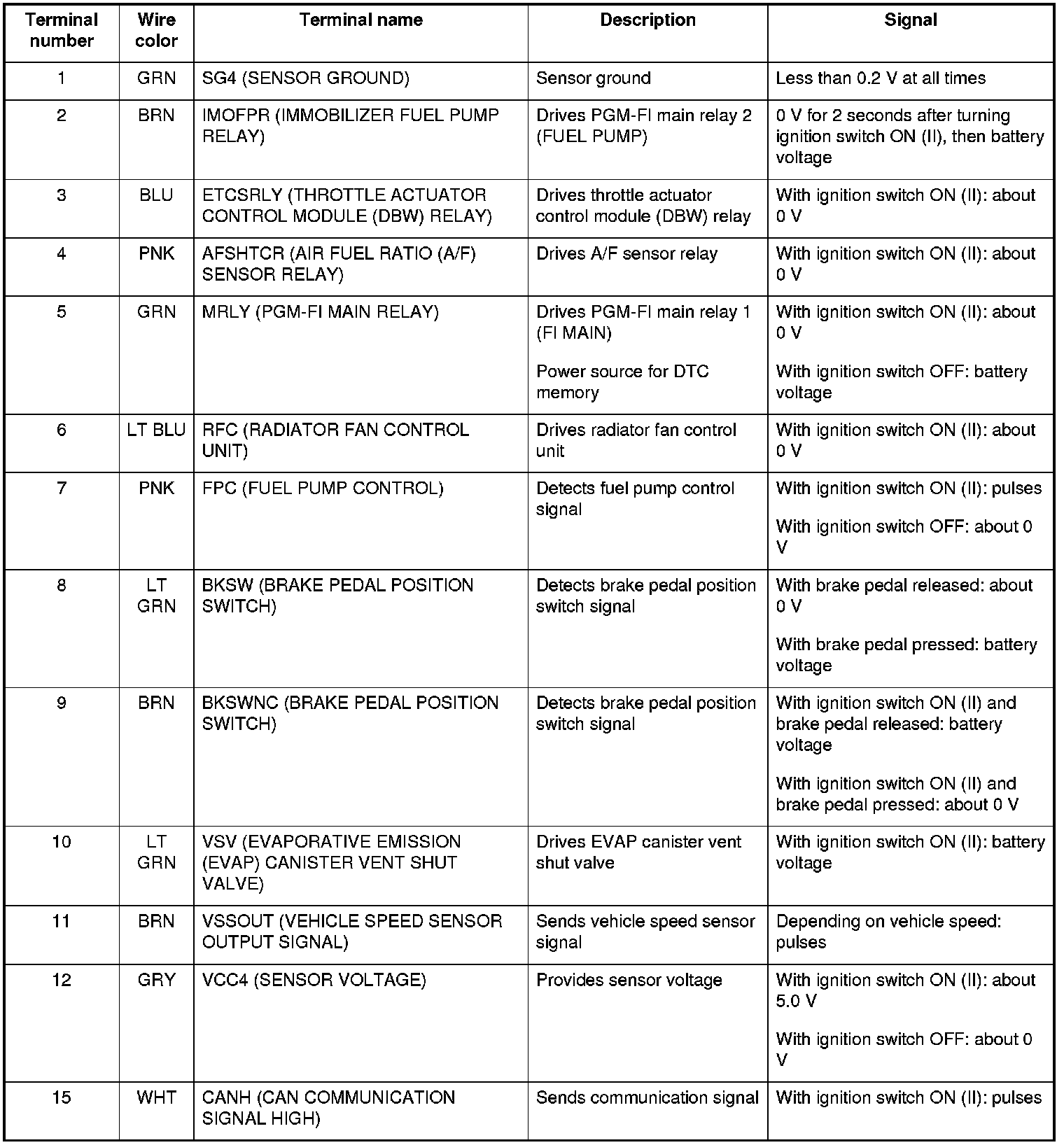

PCM Inputs and Outputs at PCM Connector B (24P)

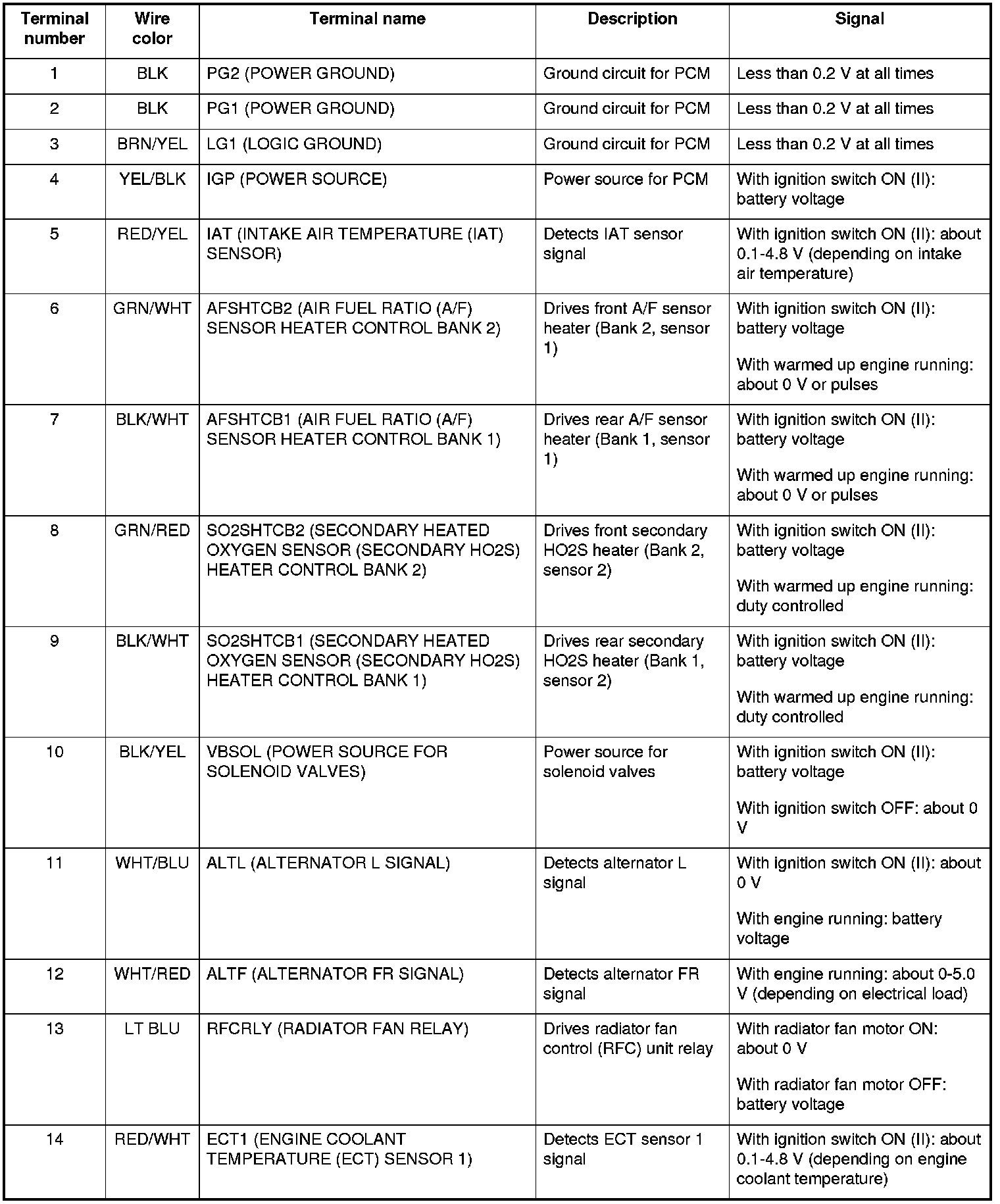

PCM Inputs and Outputs at PCM Connector B (24P)

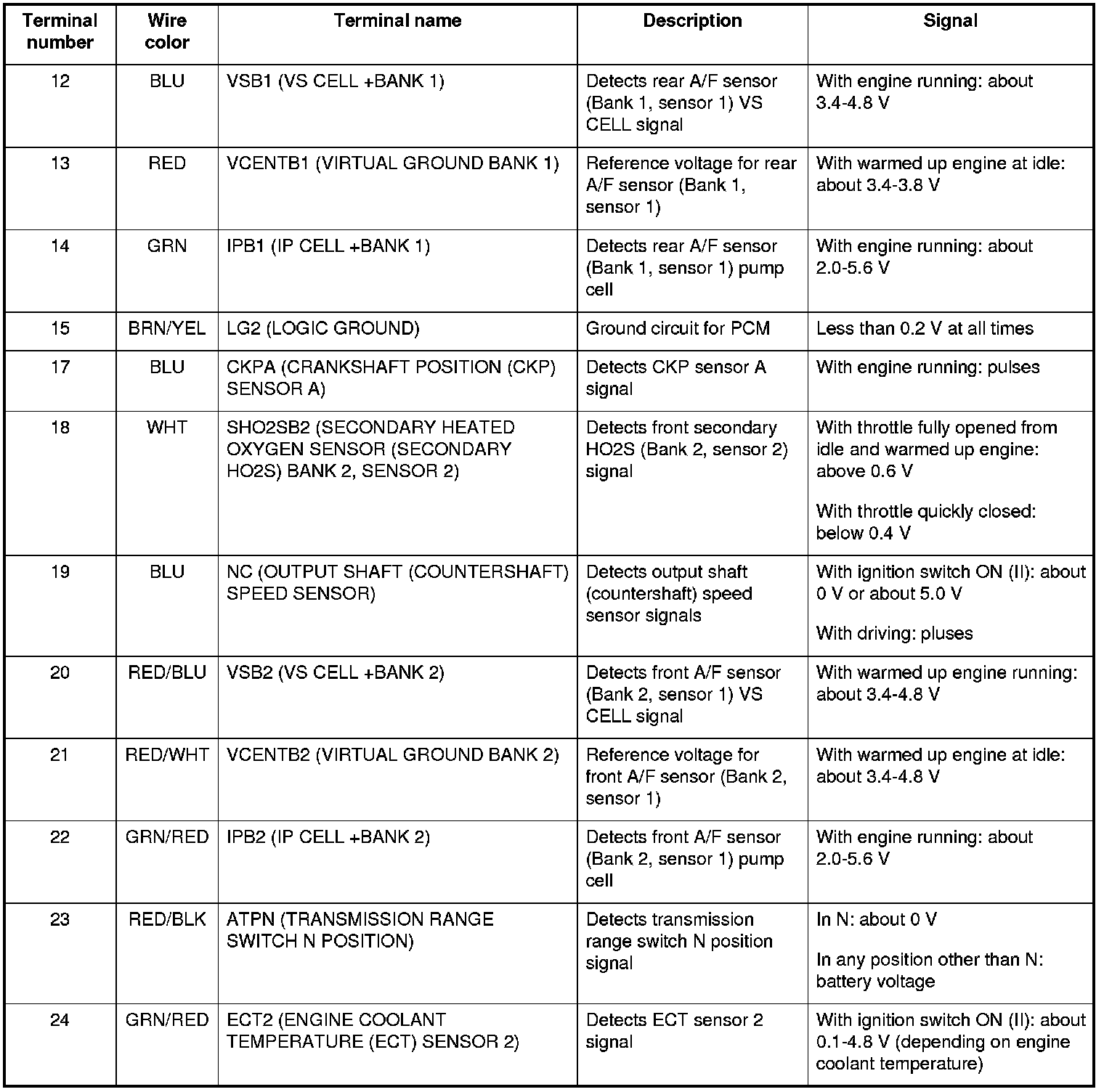

PCM Inputs and Outputs at PCM Connector C (22P)

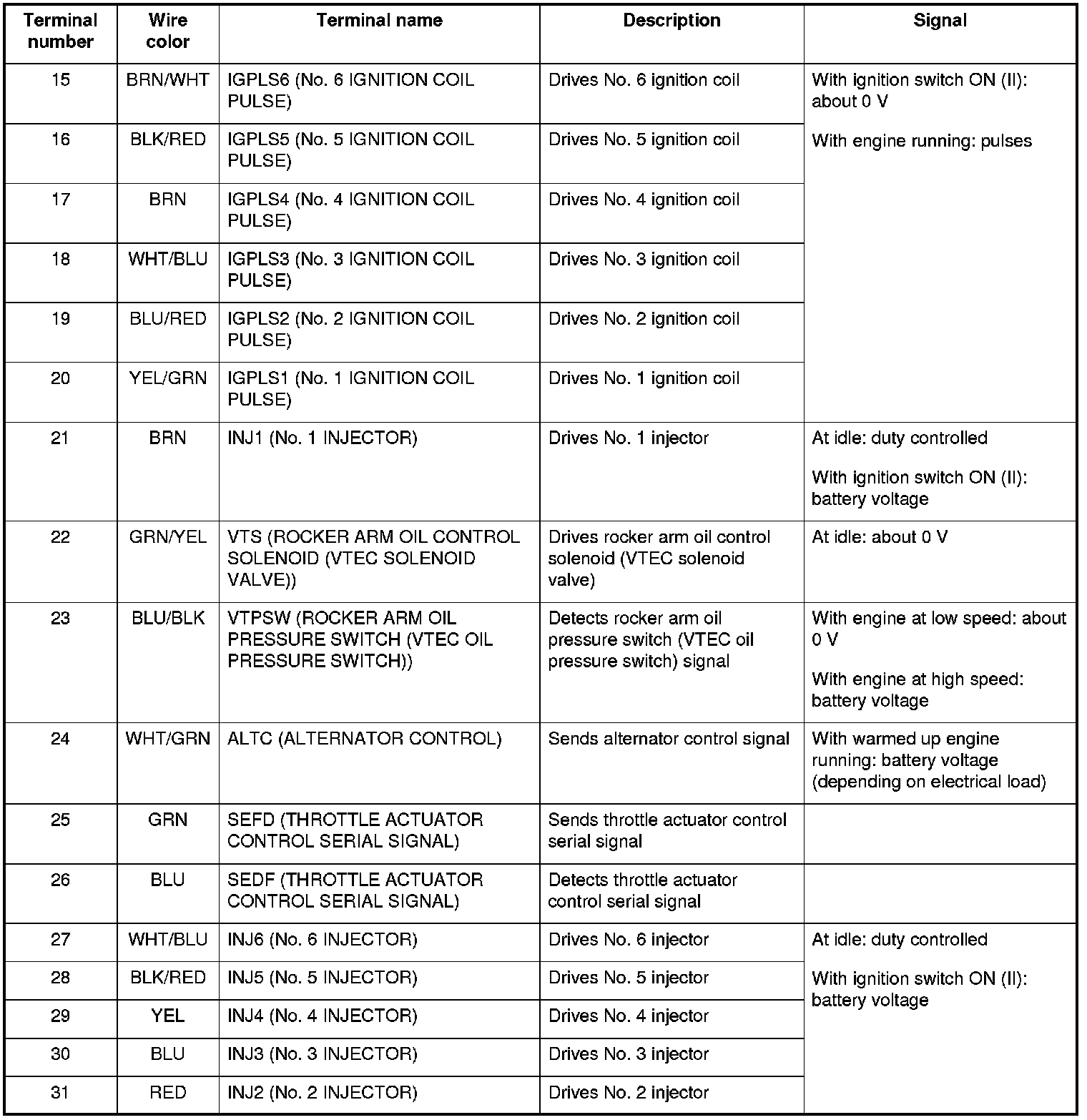

PCM Inputs and Outputs at PCM Connector C (22P)

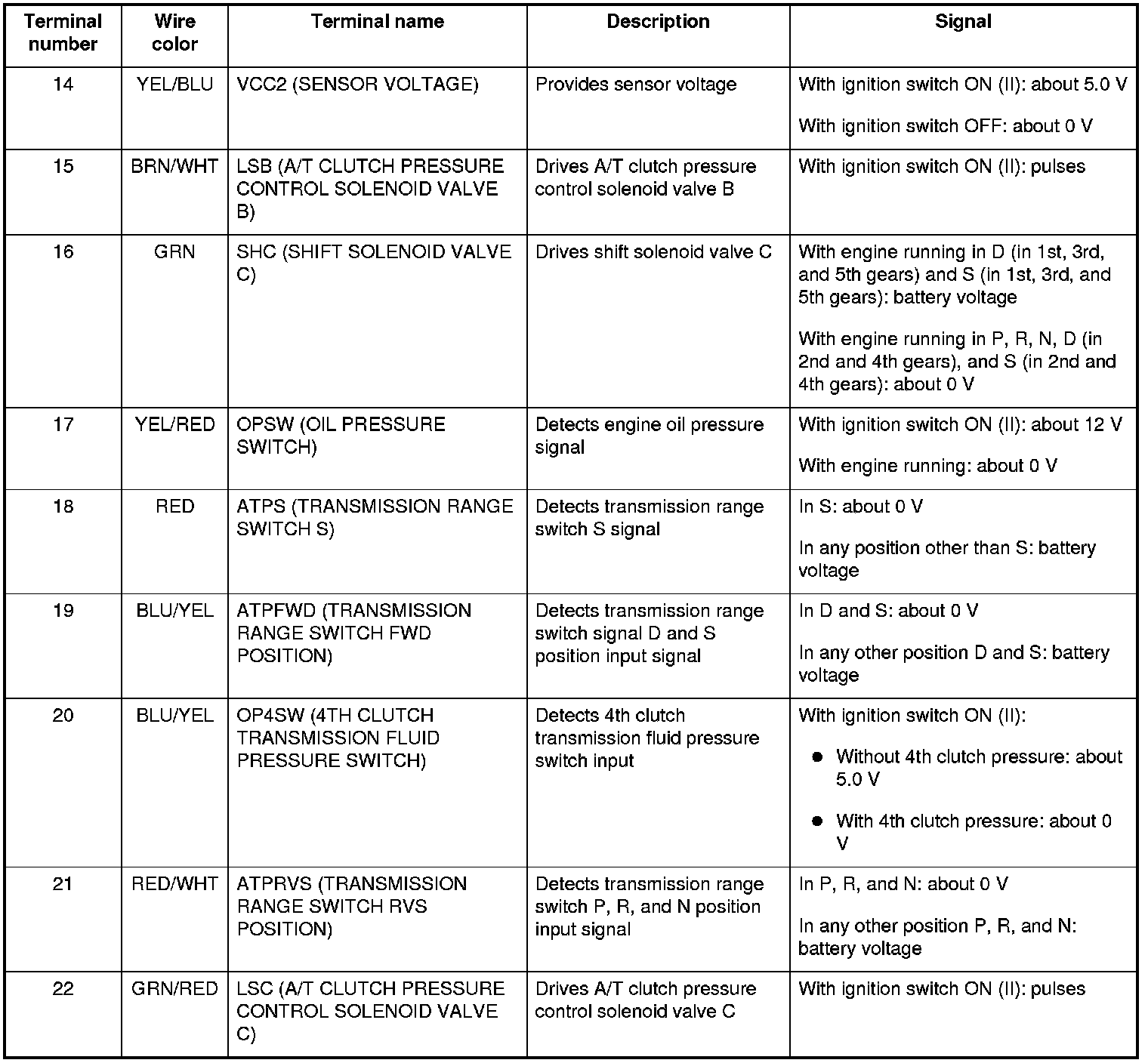

PCM Inputs and Outputs at PCM Connector D (17P)

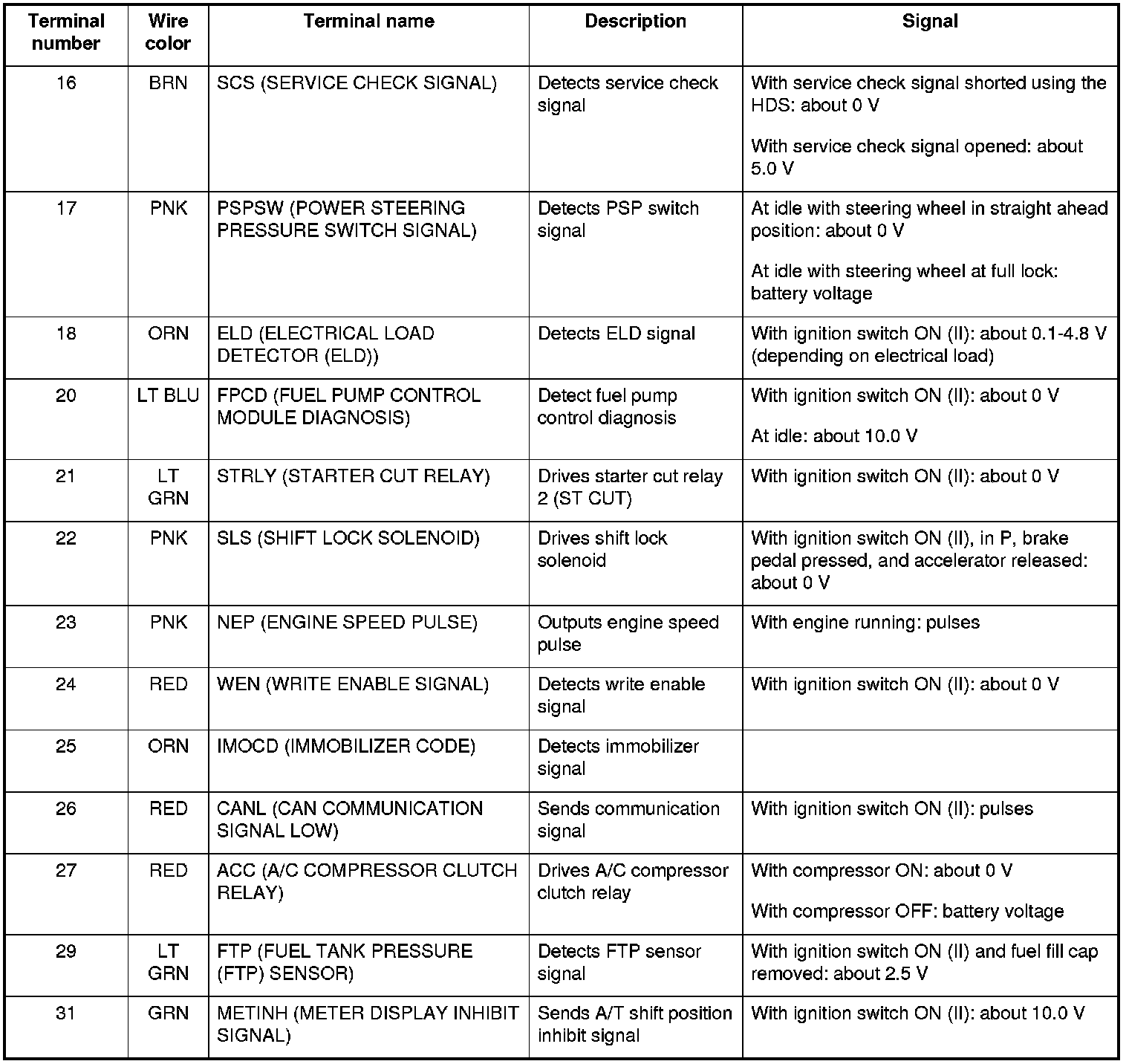

PCM Inputs and Outputs at PCM Connector E (31P)









PCM Inputs and Outputs at PCM Connector E (31P)
