Knock Sensor: Service and Repair

Knock Sensor Replacement

1. Remove the intake manifold. Intake Manifold Removal/Installation

2. Remove the injector base. Injector Base Removal/Installation

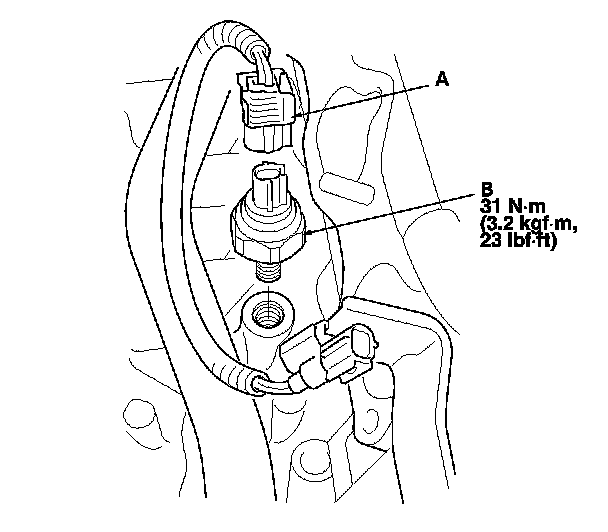

3. Disconnect the knock sensor connector (A).

4. Remove the knock sensor (B).

5. Install the parts in the reverse order of removal.
