Connecting Rod, Engine

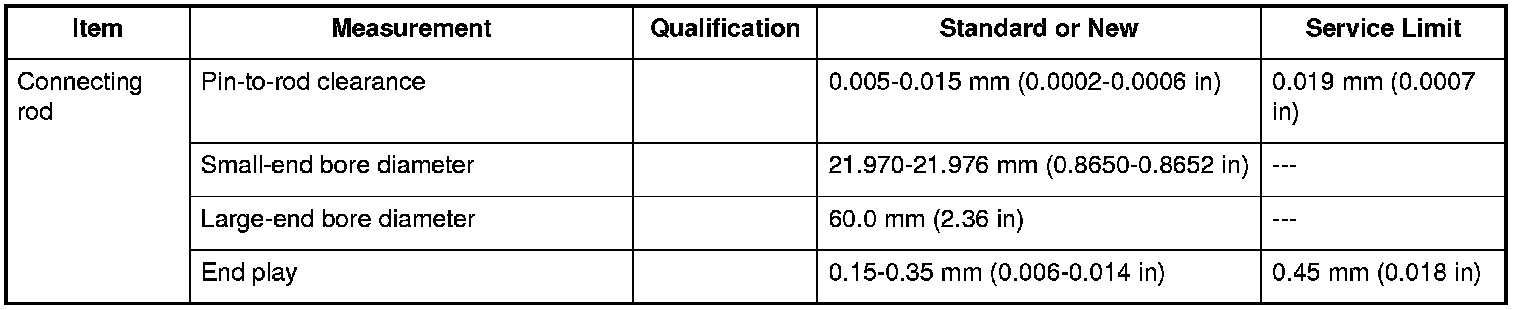

Connecting rod Specifications

Connecting rod





Connecting rod bolt

Step 1 20 N-m (2.0 kgf-m, 14 lbf-ft)
Step 2 90°
