Fuse: Locations




Fuse to Components Index

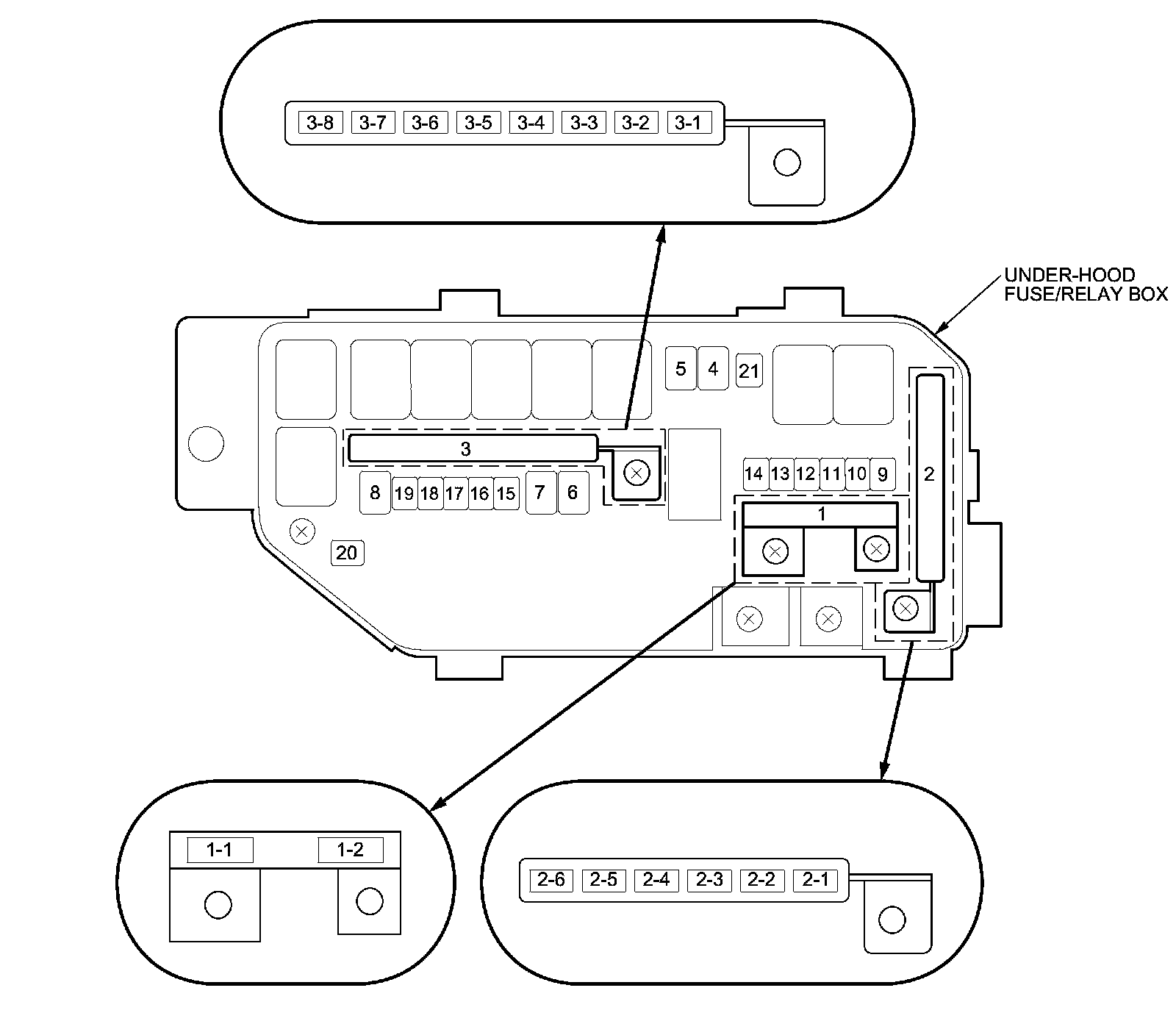

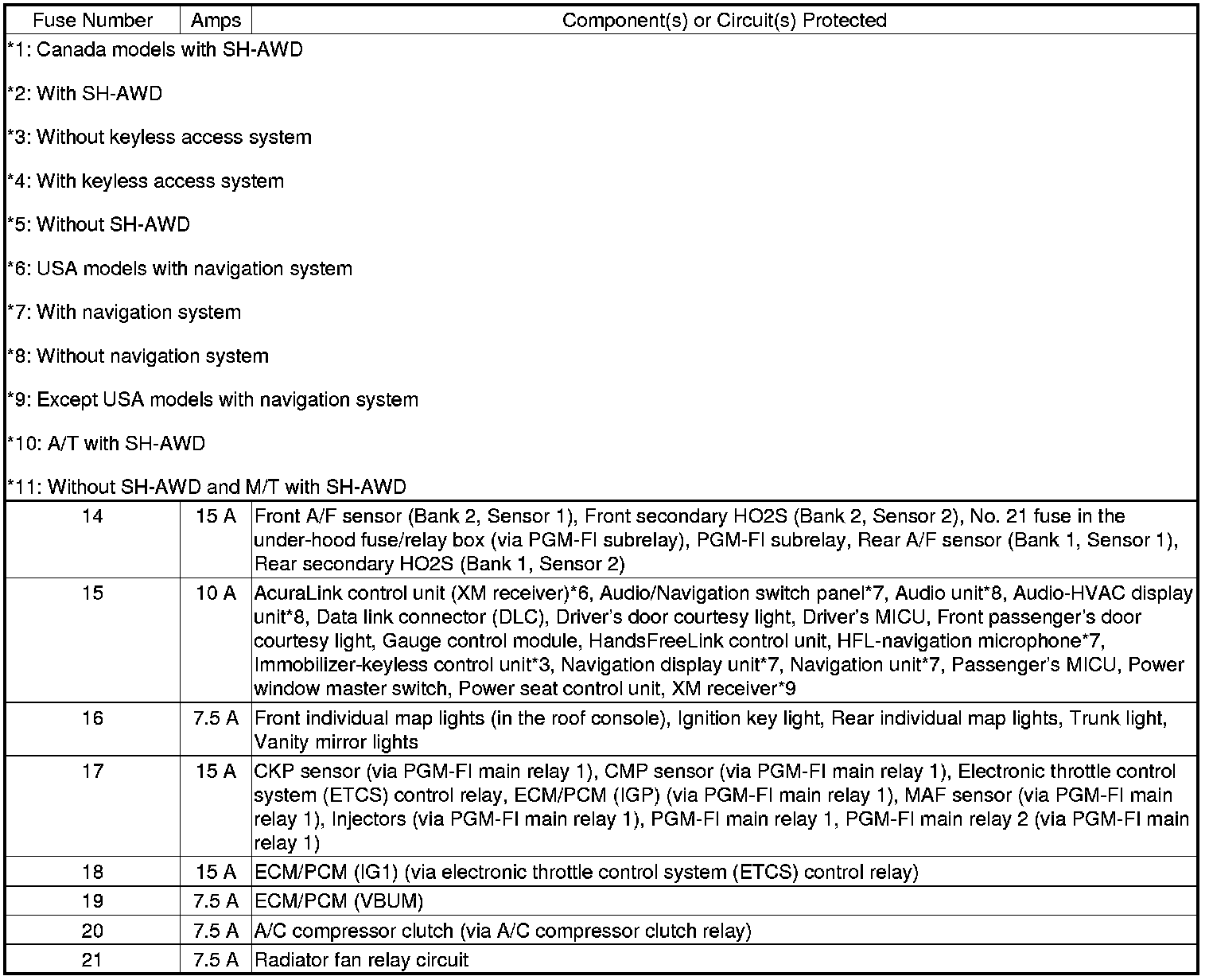

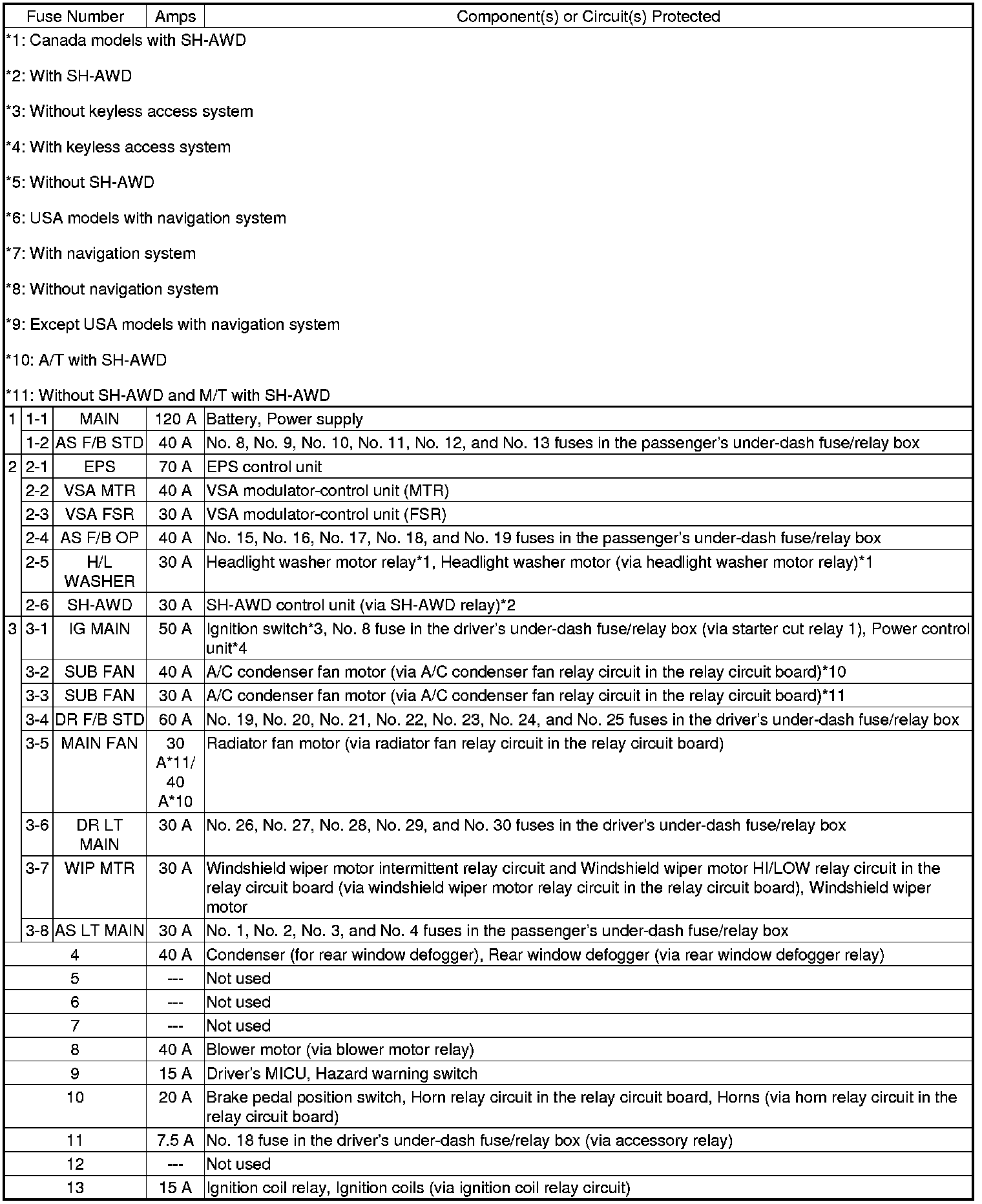

Under-hood Fuse/Relay Box

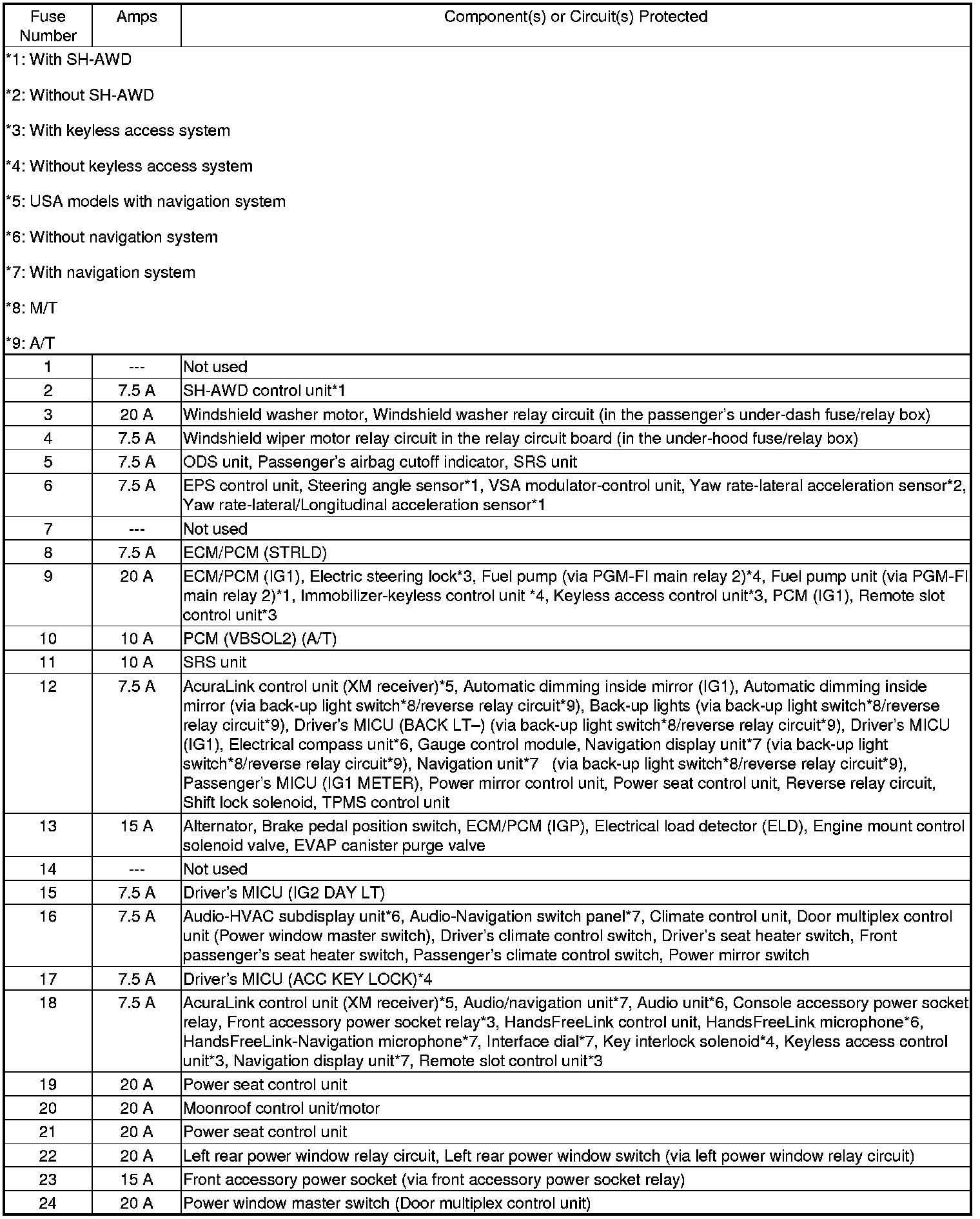

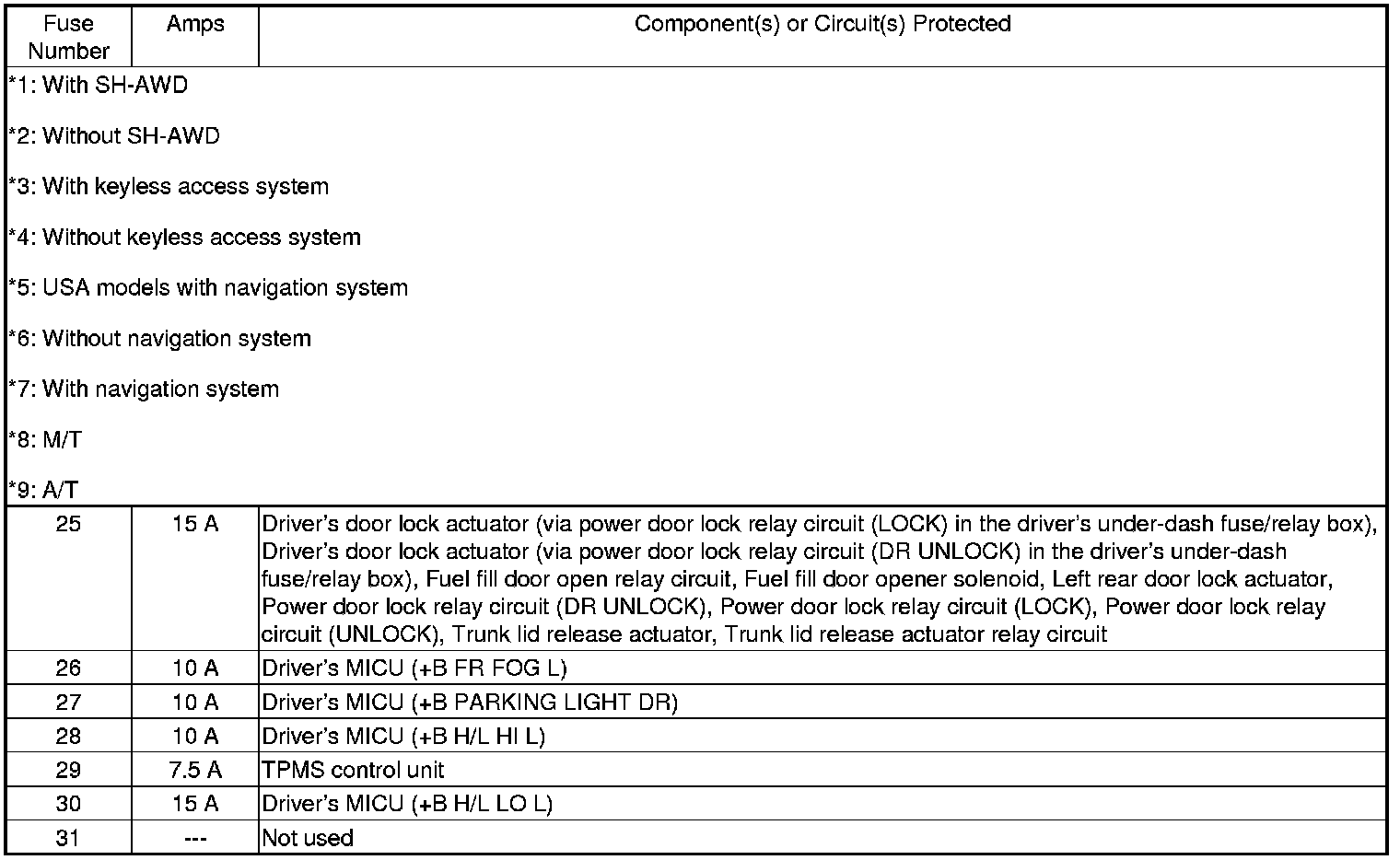

Driver's Under-dash Fuse/Relay Box

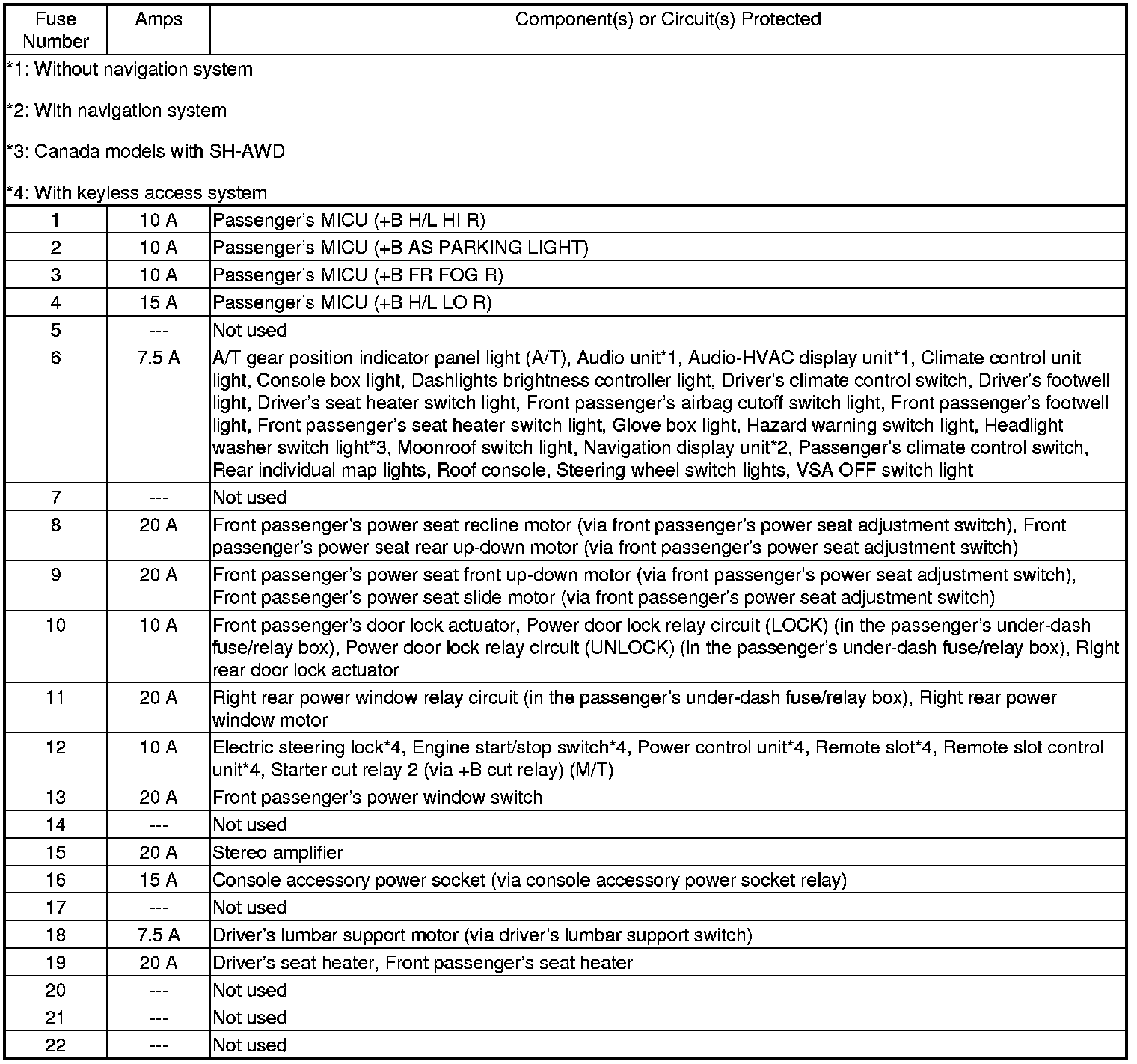

Passenger's Under-dash Fuse/Relay Box










Auxiliary Under-dash Fuse Holder
