Pinout Values and Diagnostic Parameters




Fuel and Emissions System Description - Electronic Control Systems

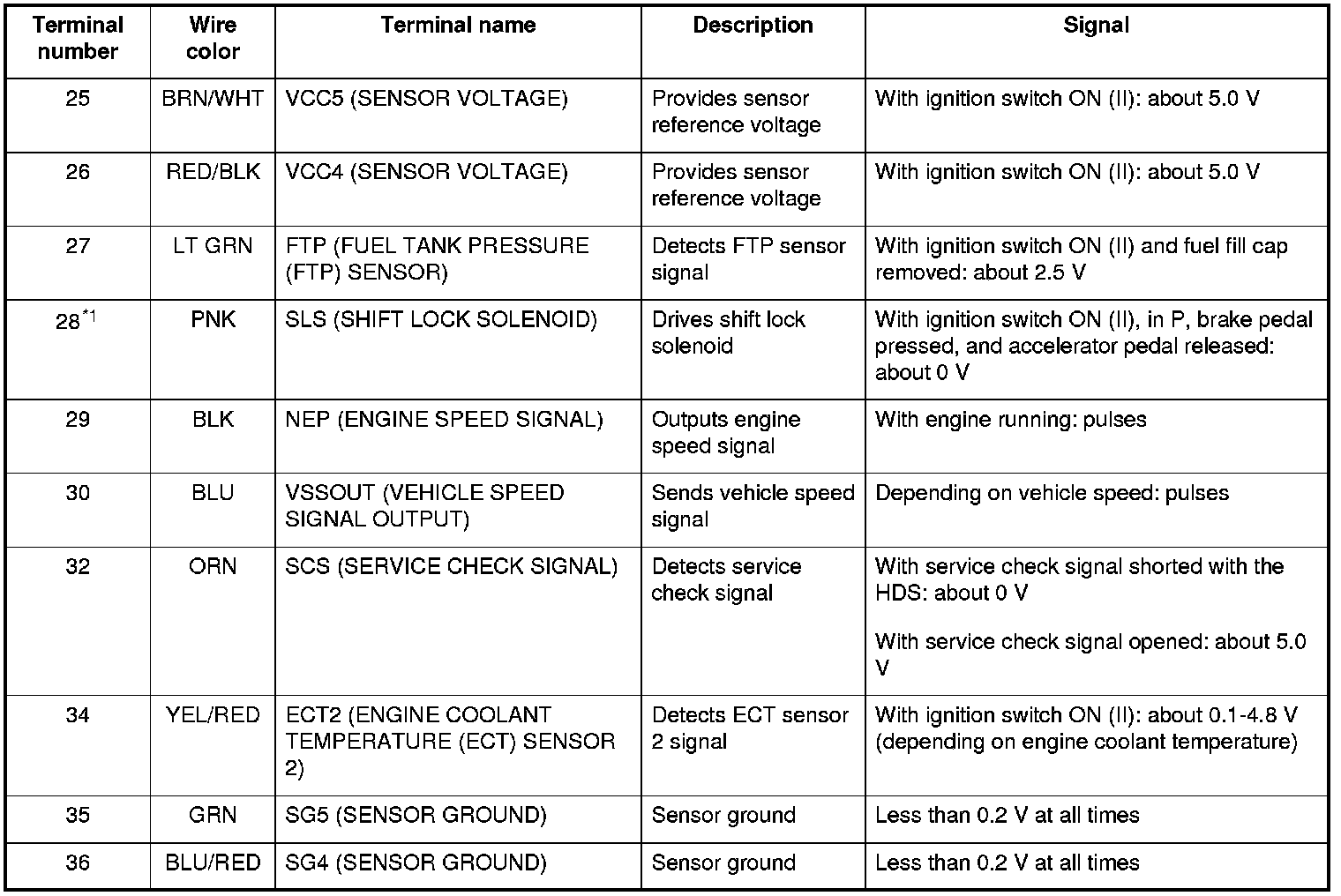

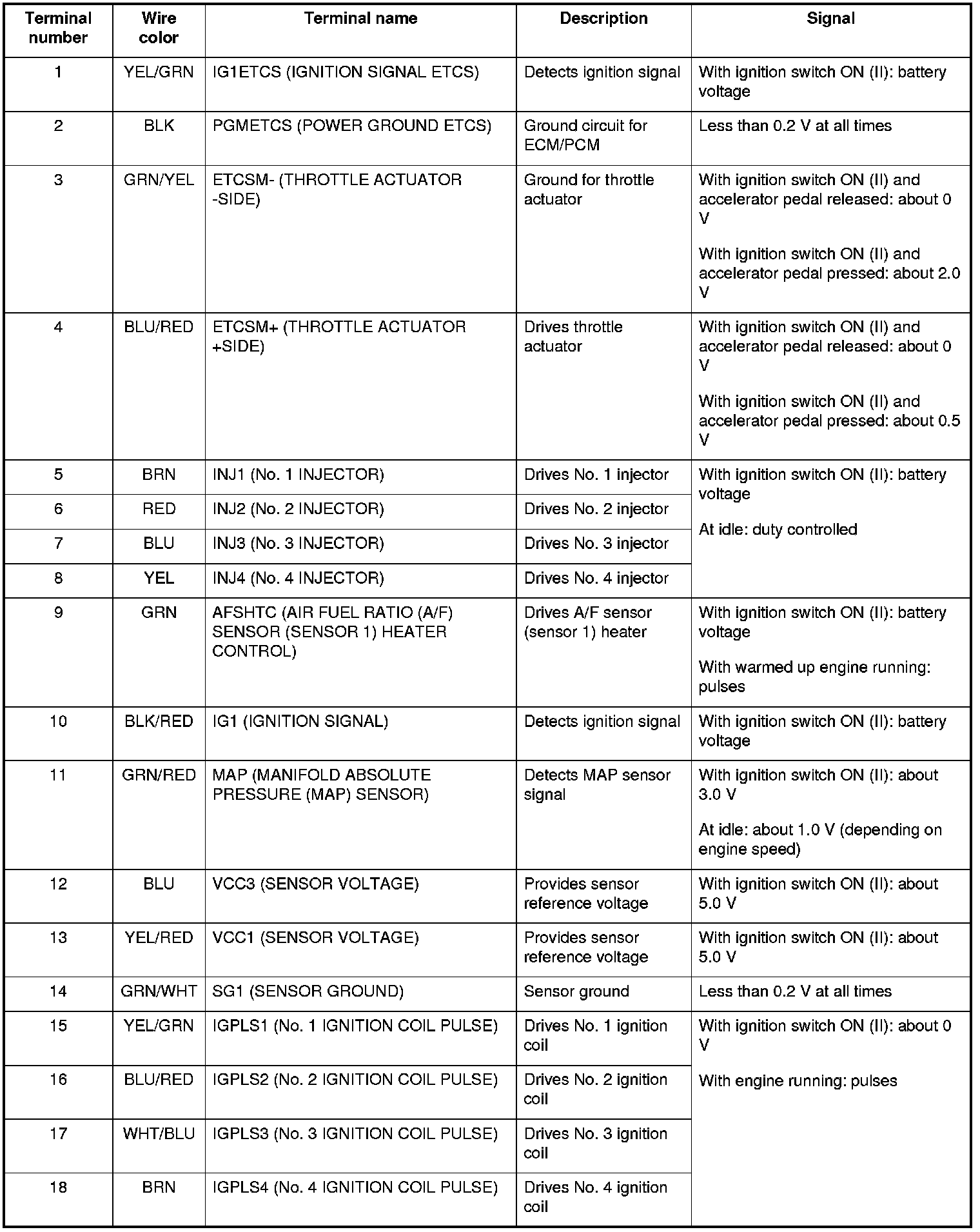

ECM/PCM Inputs and Outputs at ECM/PCM Connector A (square) (49P)









*1: A/T

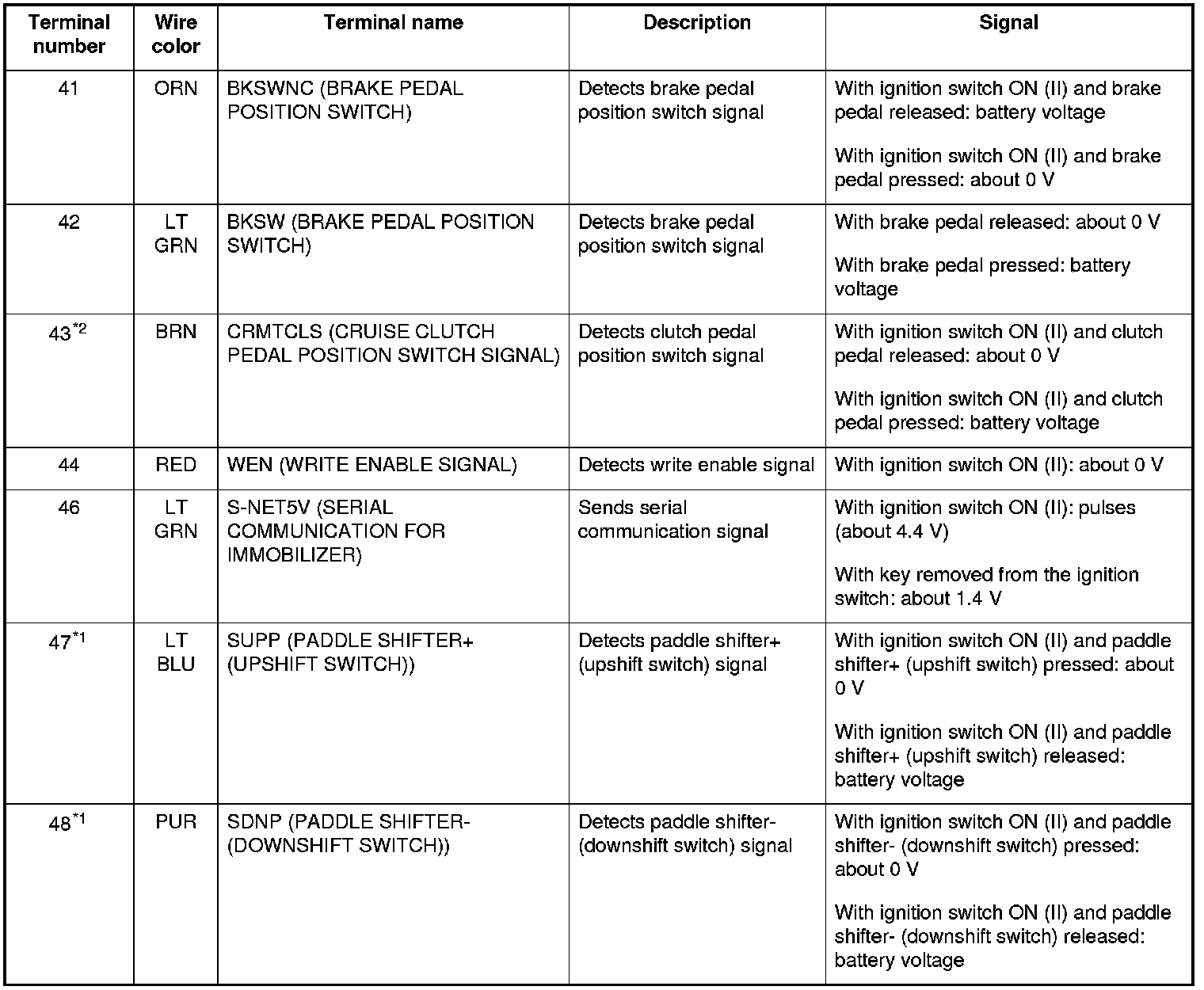

ECM/PCM Inputs and Outputs at ECM/PCM Connector A (square) (49P)

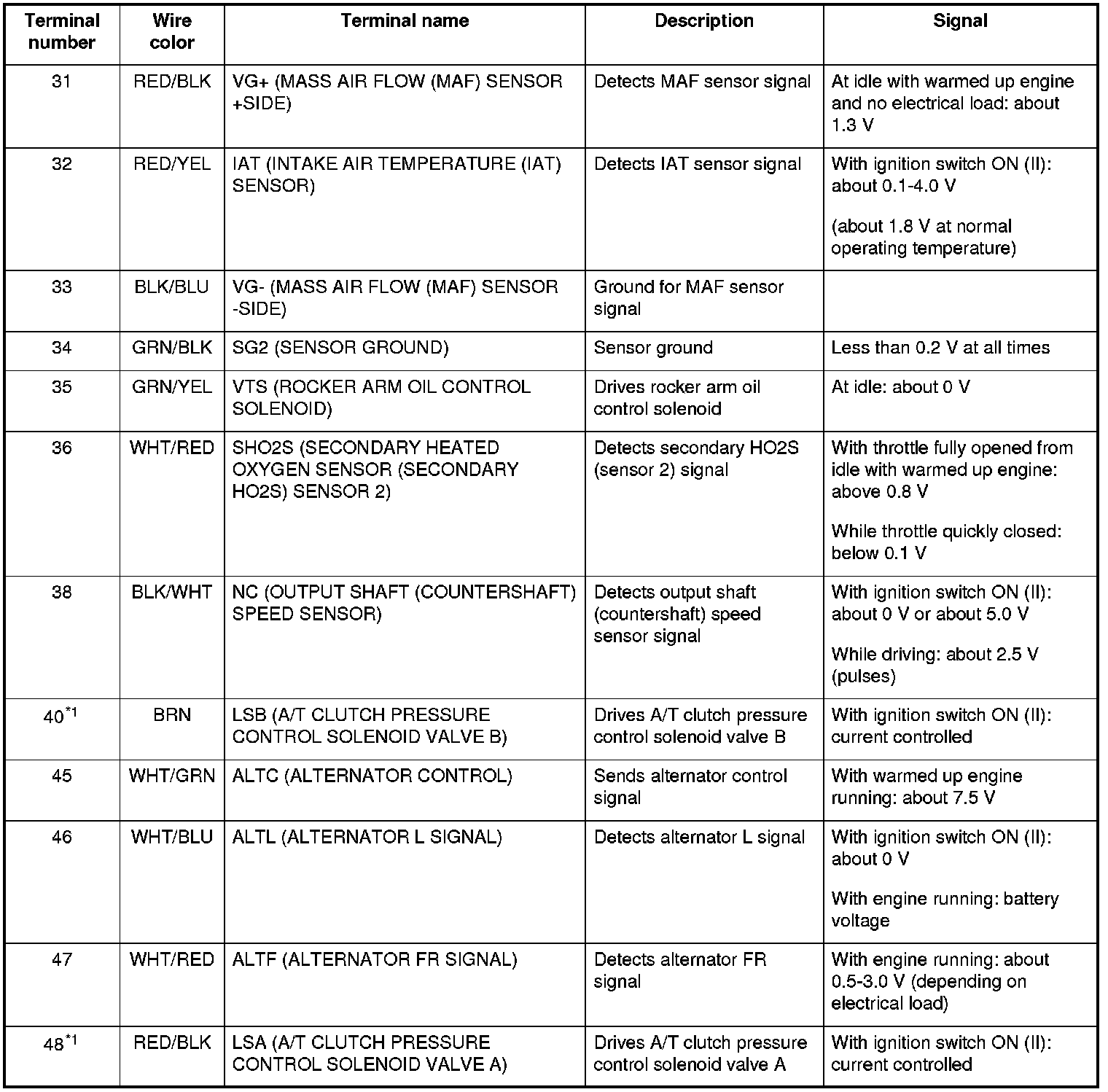

ECM/PCM Inputs and Outputs at ECM/PCM Connector A (square) (49P)









*1: A/T

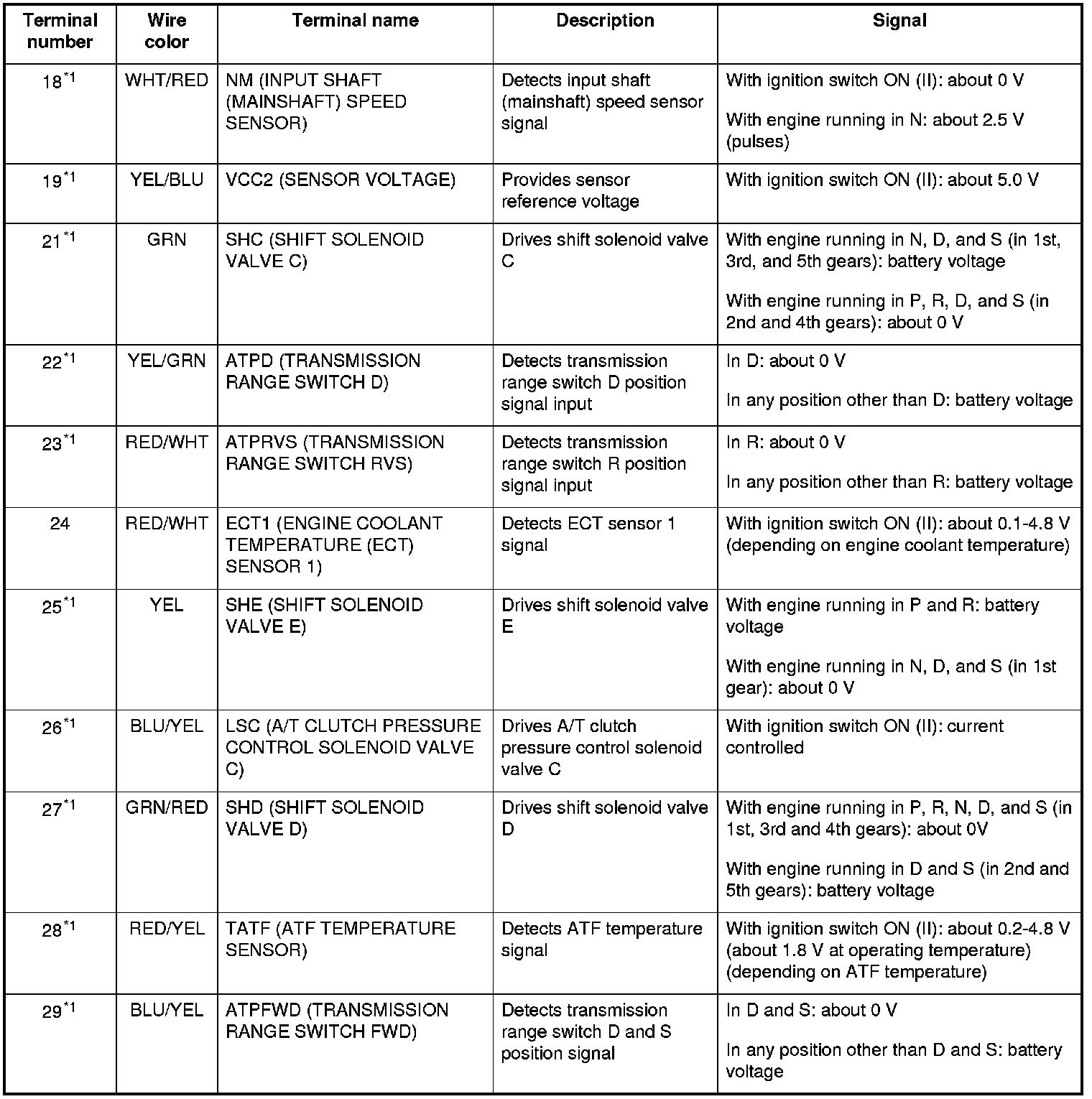

ECM/PCM Inputs and Outputs at ECM/PCM Connector A (square) (49P)









*1: A/T

*2: M/T

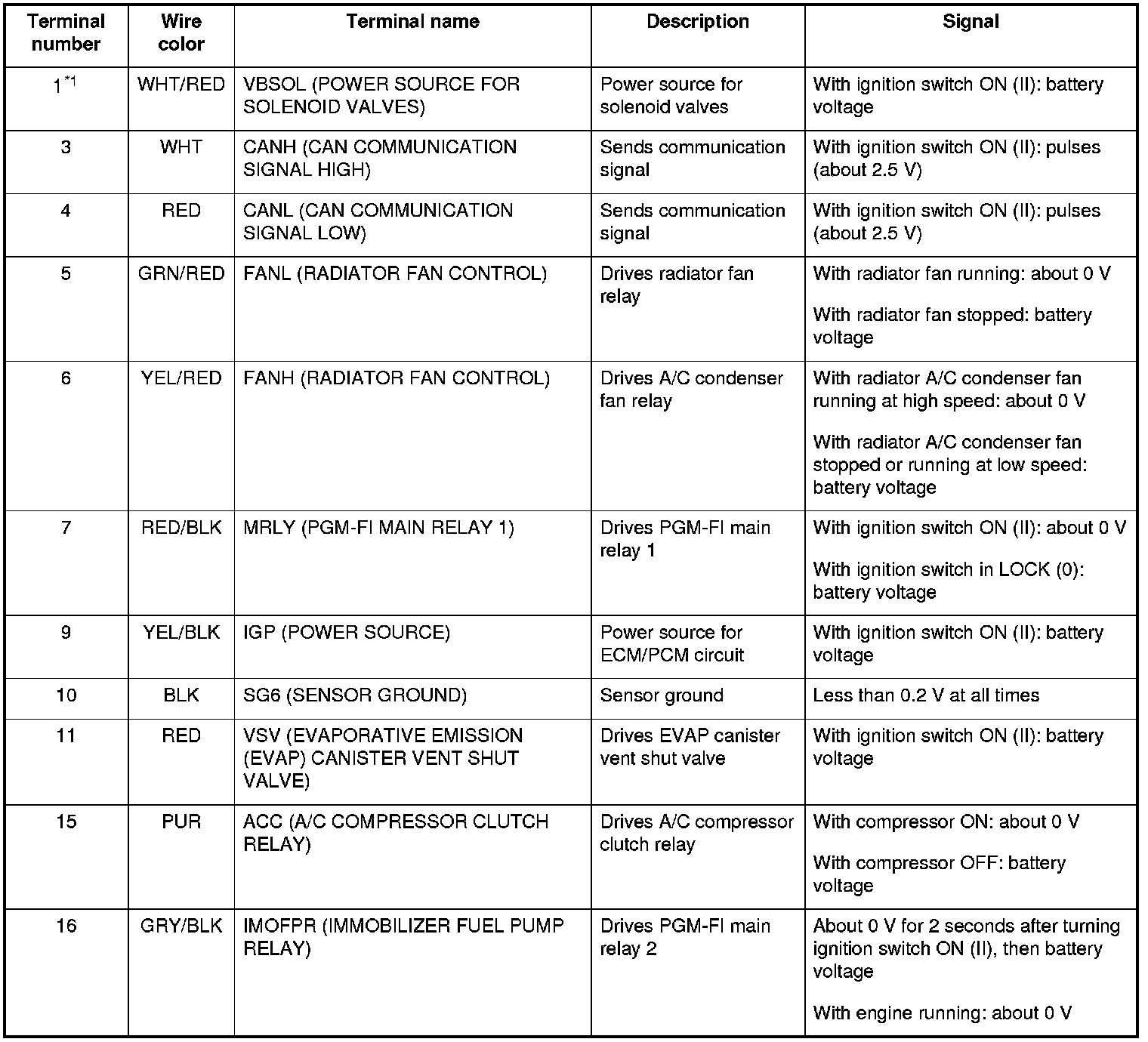

ECM/PCM Inputs and Outputs at ECM/PCM Connector B (triangle) (49P)













*1: A/T

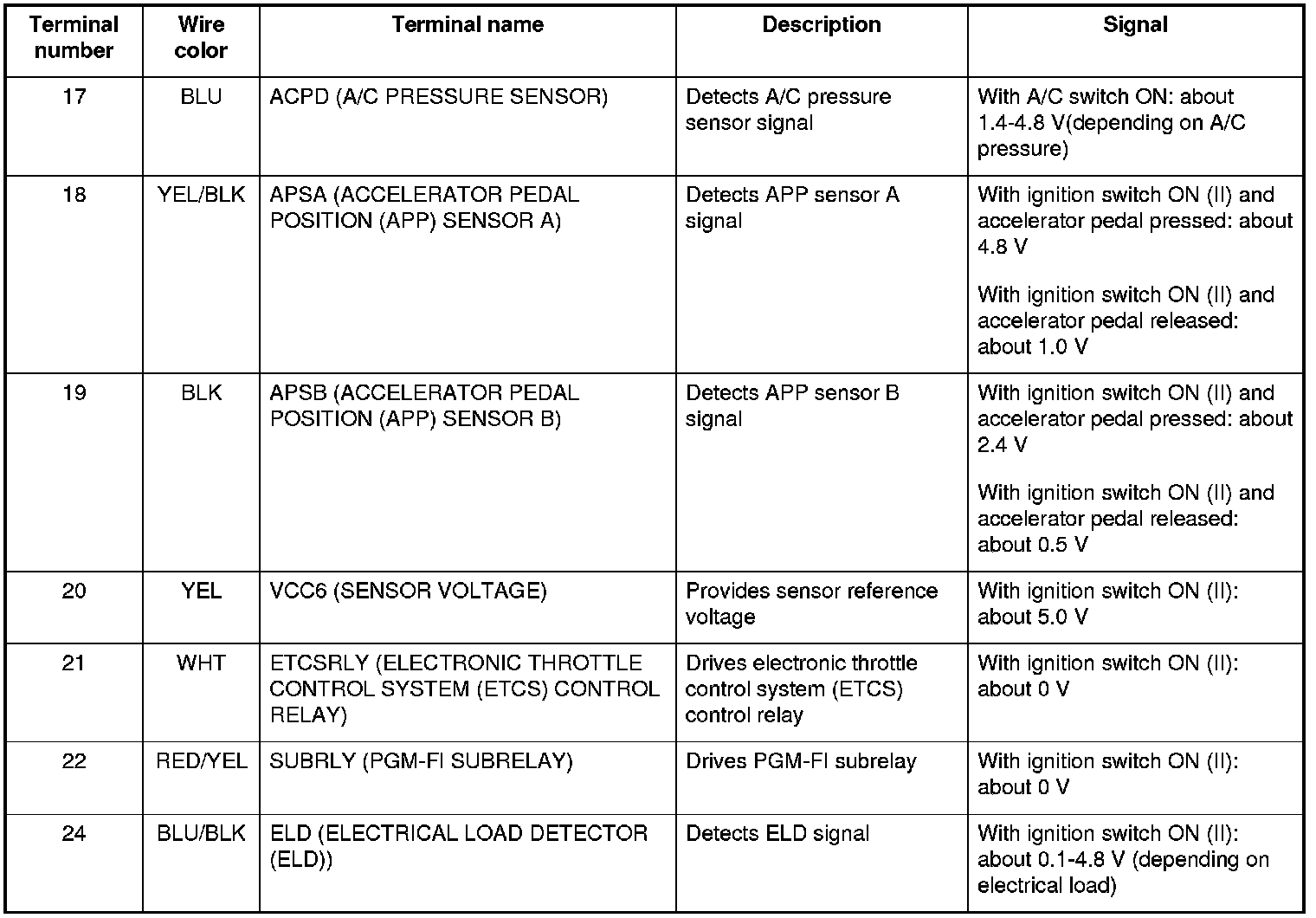

ECM/PCM Inputs and Outputs at ECM/PCM Connector B (triangle) (49P)









*1: A/T

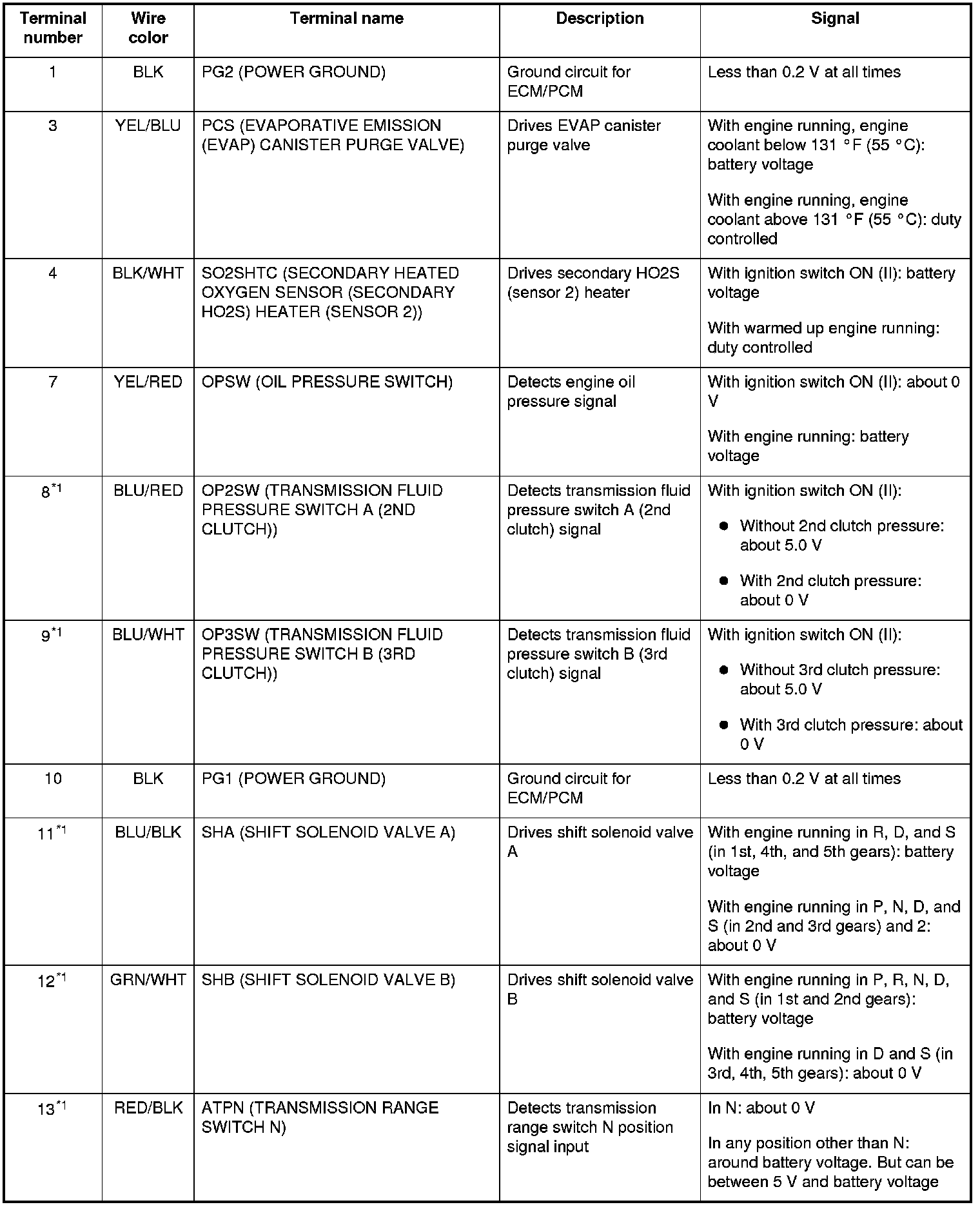

ECM/PCM Inputs and Outputs at ECM/PCM Connector B (triangle) (49P)









*1: A/T

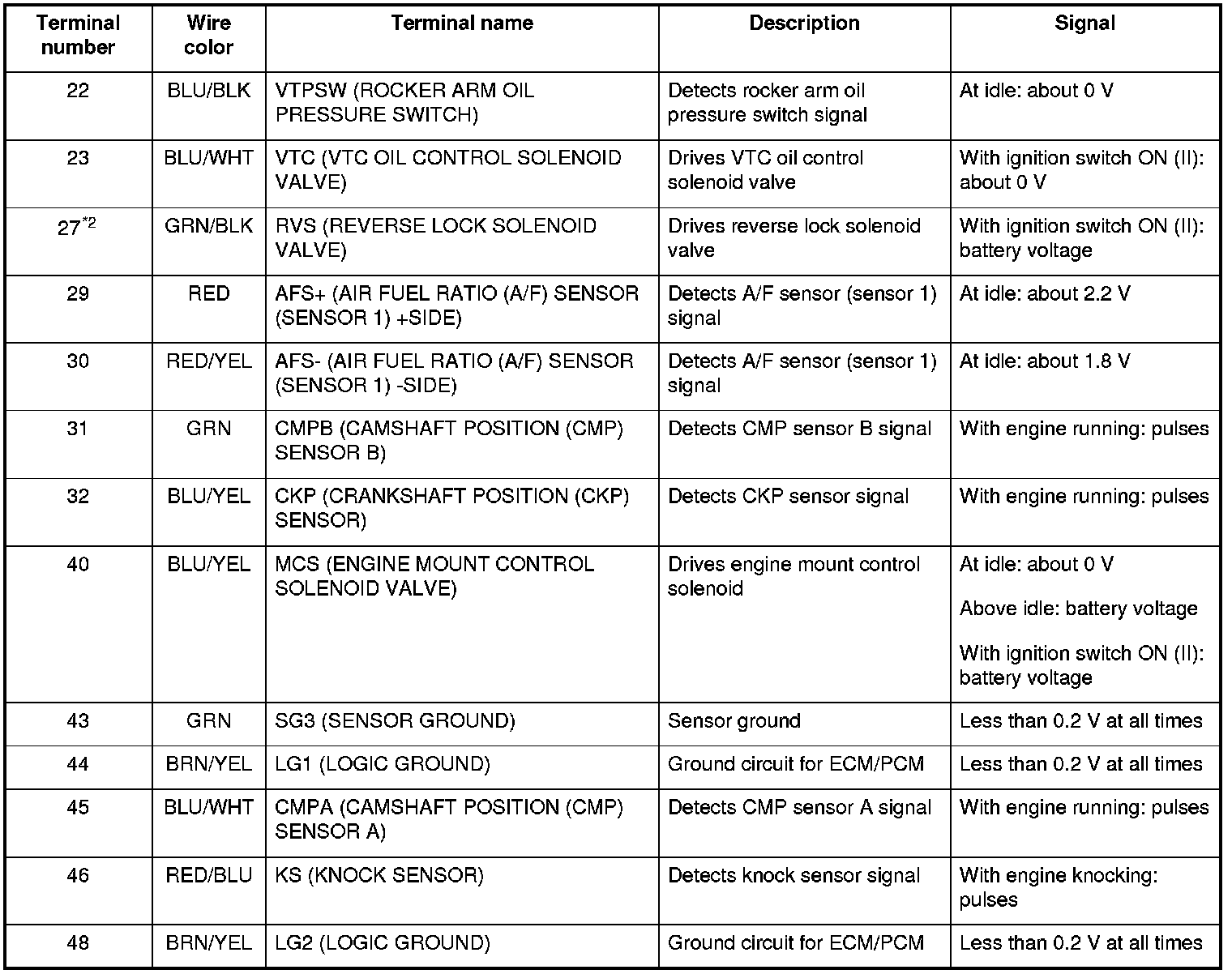

ECM/PCM Inputs and Outputs at ECM/PCM Connector C (circle) (49P)













ECM/PCM Inputs and Outputs at ECM/PCM Connector C (circle) (49P)









*2: M/T
