View 323 - Panoramic Glass Roof Control Unit/Motor Connector View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

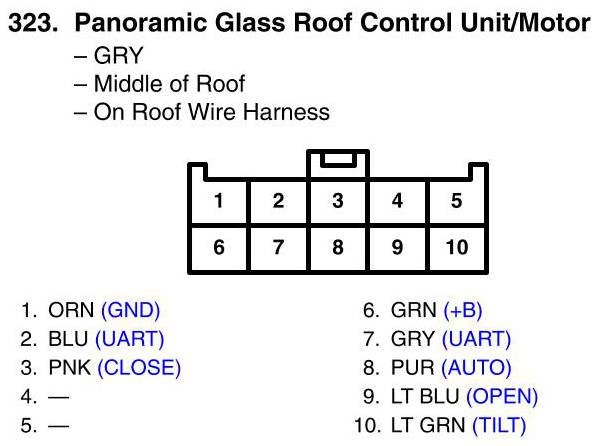

View 323 - Panoramic Glass Roof Control Unit/Motor Connector View
