Ignition Switch Connector View (Without Keyless Access)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

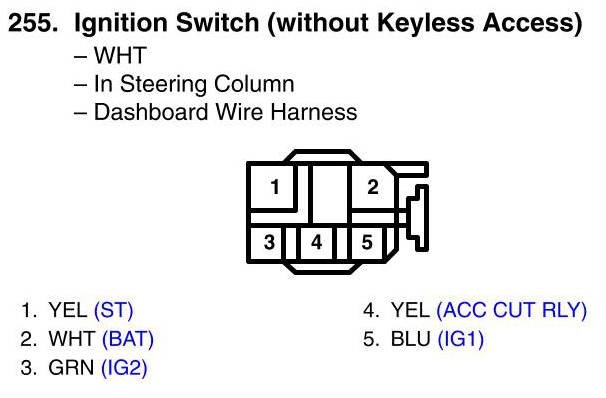

Ignition Switch Connector View (Without Keyless Access)
