Driver's Door Outer Handle/Lock Switch/Touch Sensor/LF Antenna Connector View (With Keyless Access System)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

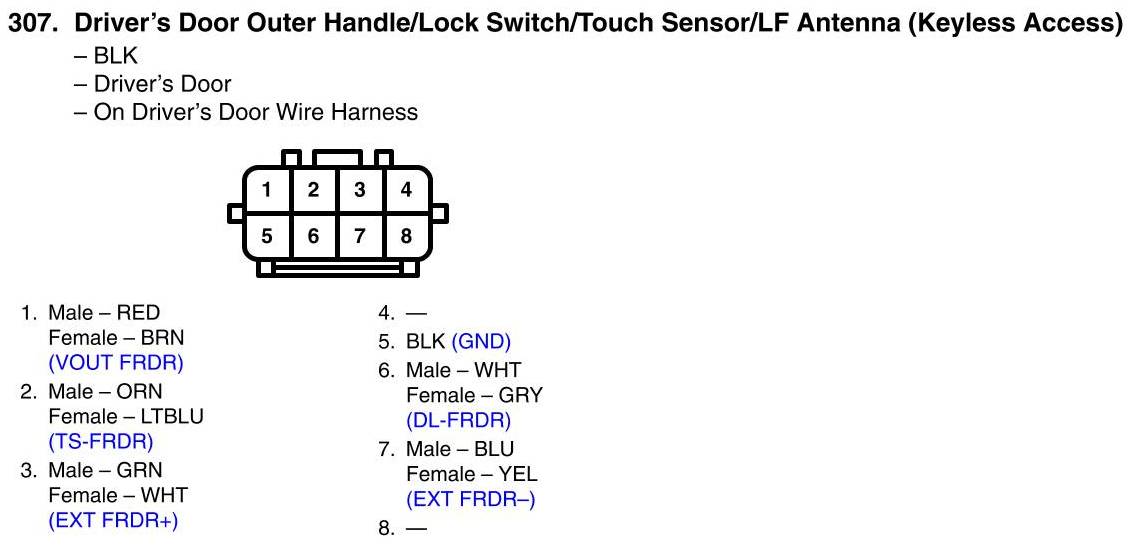

Driver's Door Outer Handle/Lock Switch/Touch Sensor/LF Antenna Connector View (With Keyless Access System)
