Pinout Values and Diagnostic Parameters

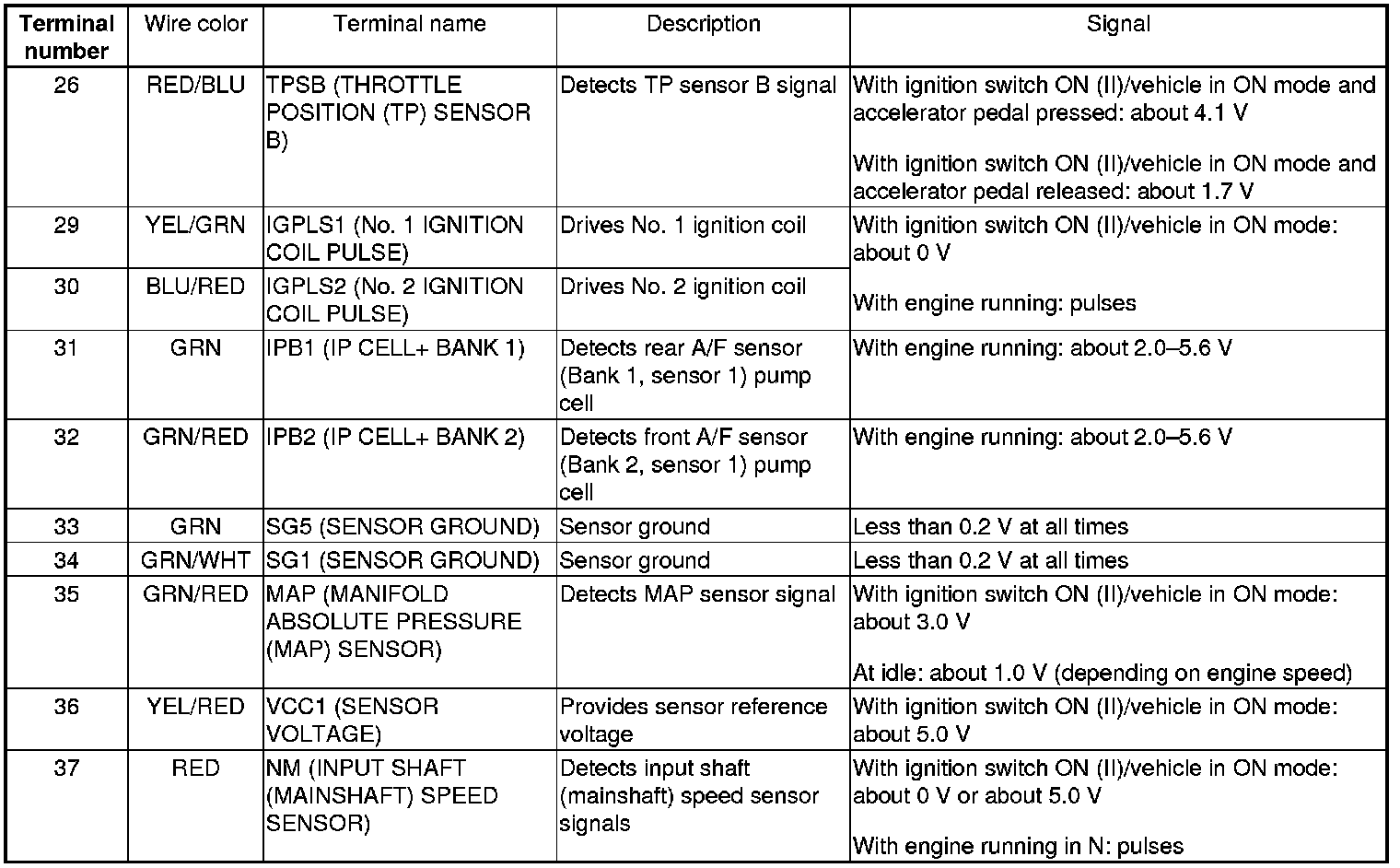

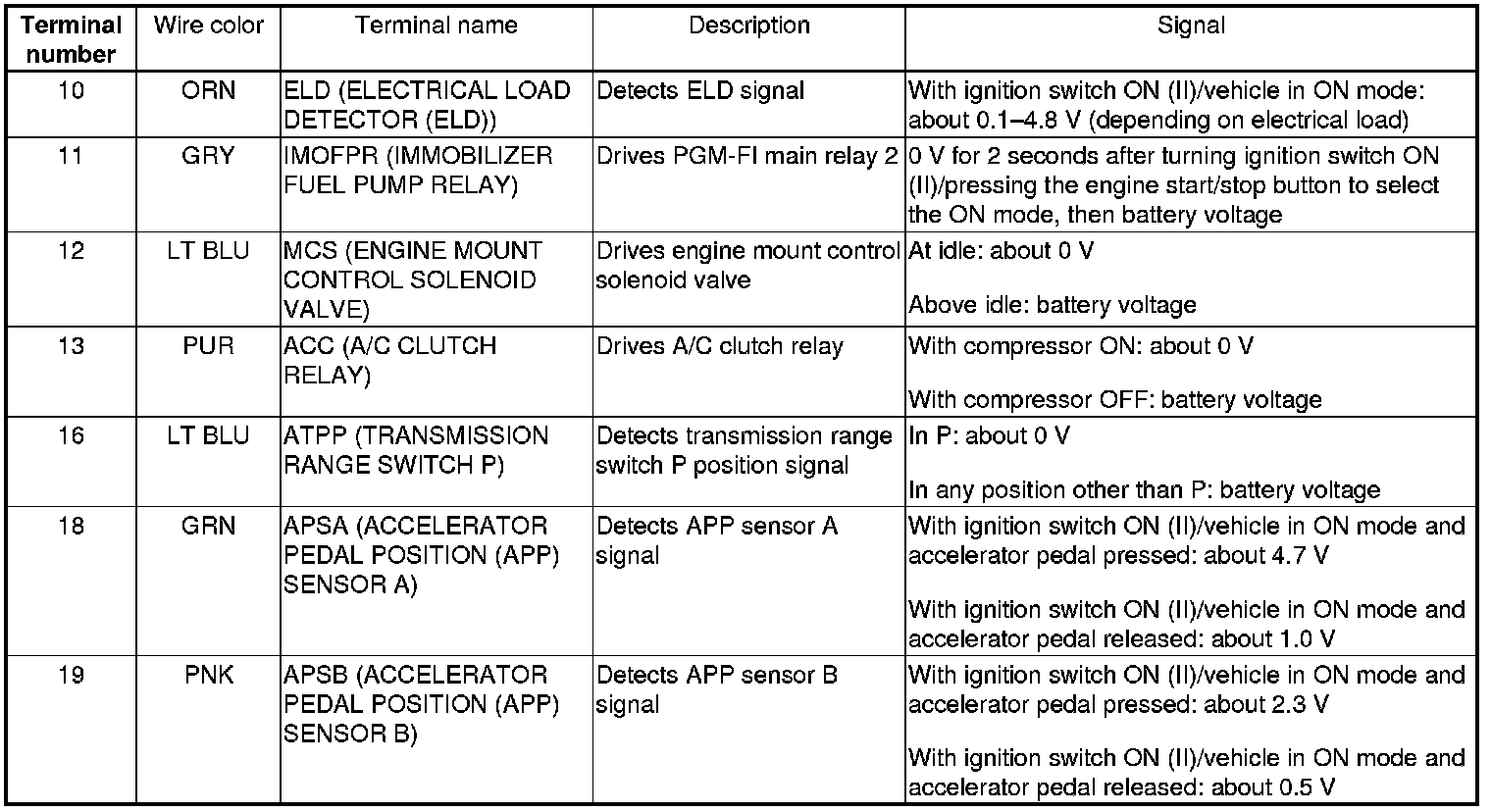

PCM Inputs and Outputs at PCM Connector A (Square) (49P)










PCM Inputs and Outputs at PCM Connector A (Square) (49P)










PCM Inputs and Outputs at PCM Connector A (Square) (49P)

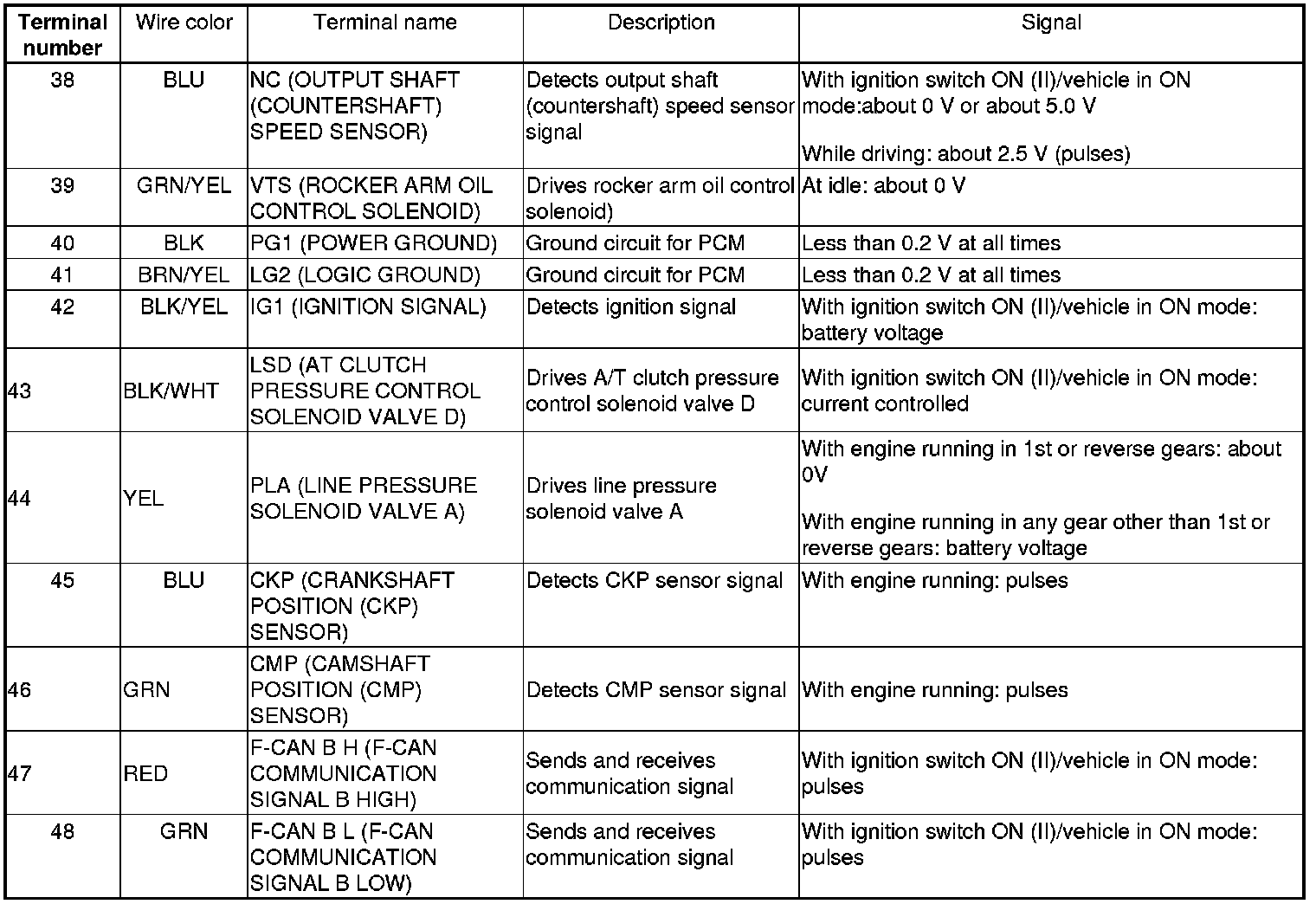

PCM Inputs and Outputs at PCM Connector A (Square) (49P)









*1: With navigation

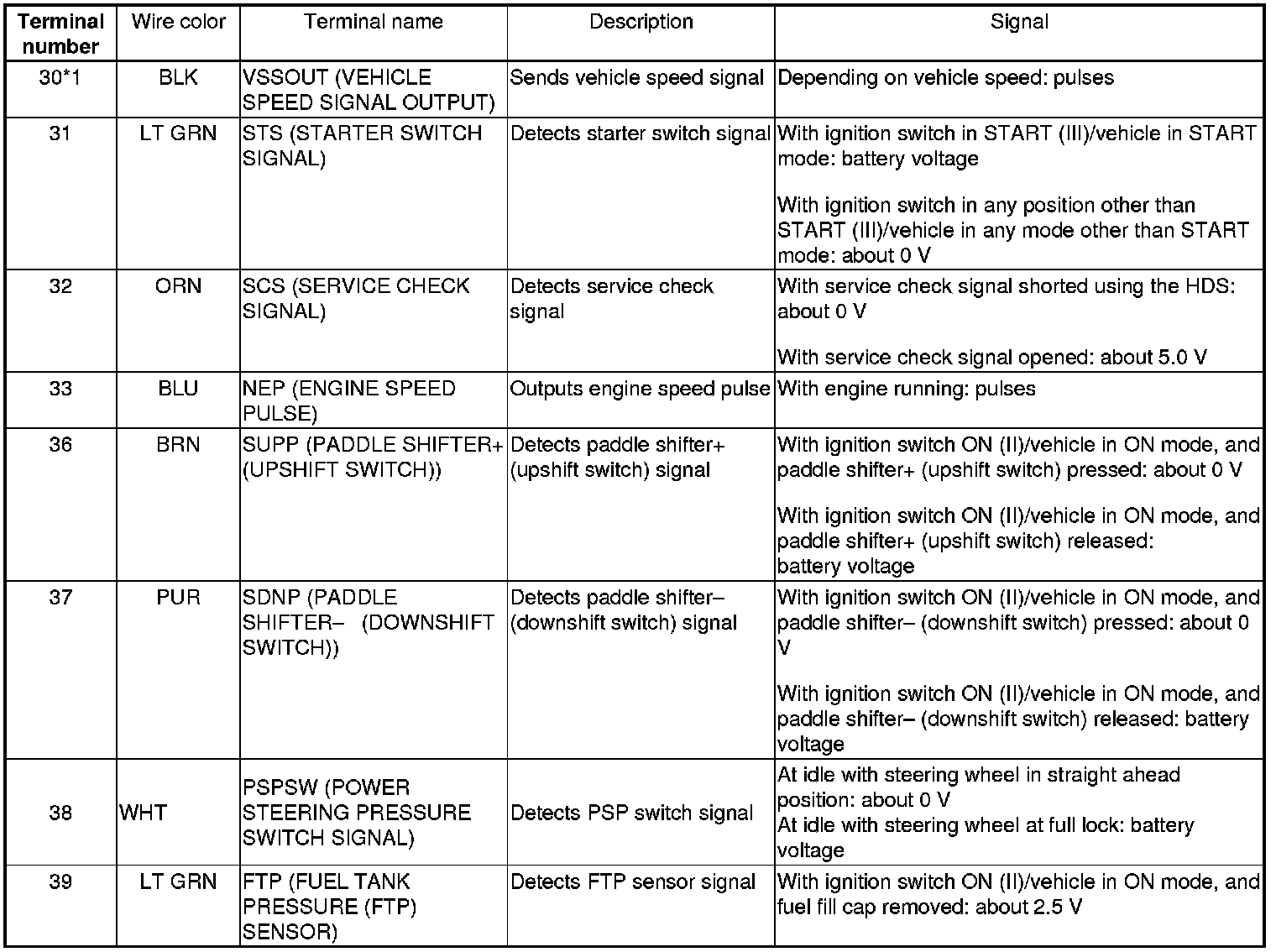

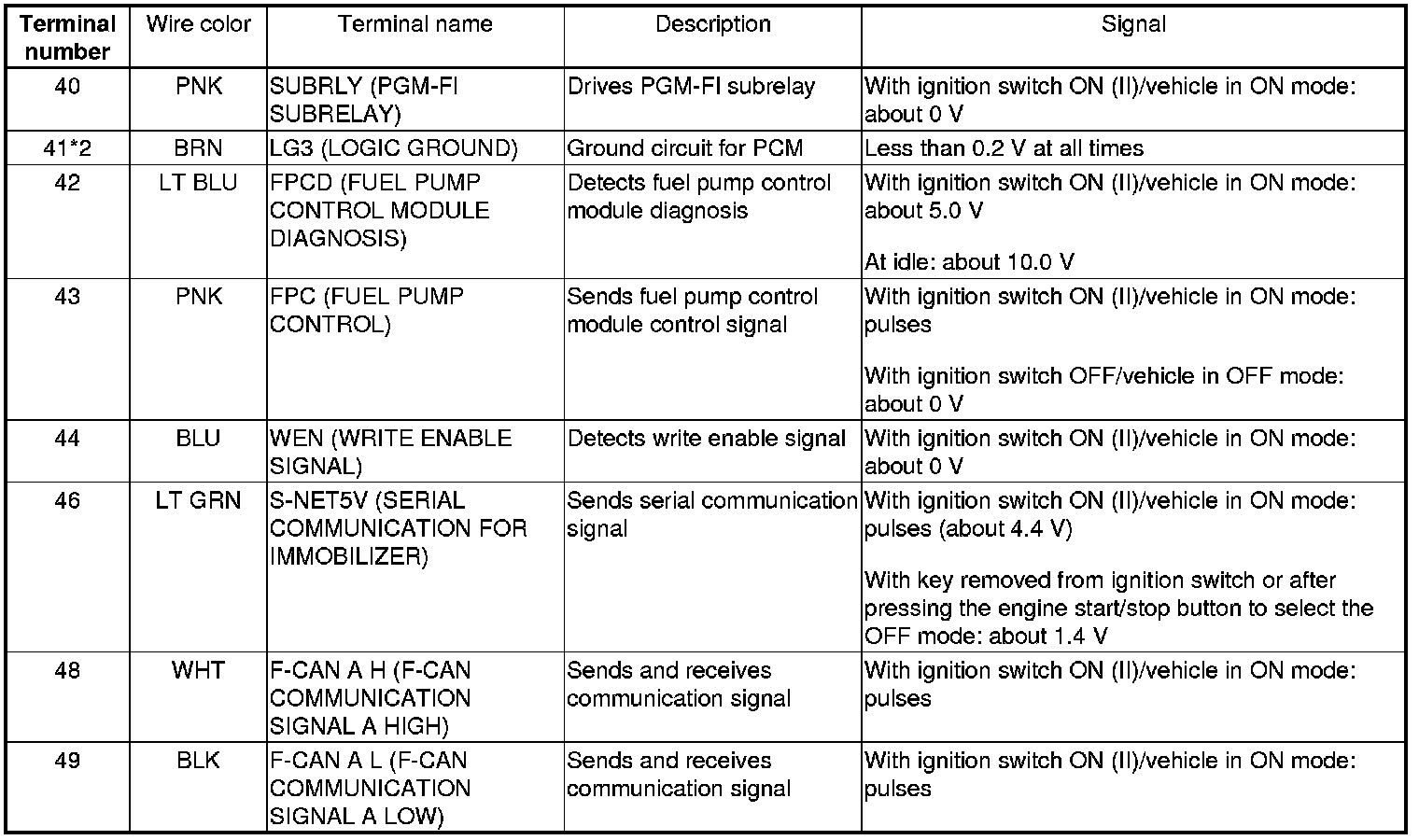

PCM Inputs and Outputs at PCM Connector A (Square) (49P)









*2: Without keyless access

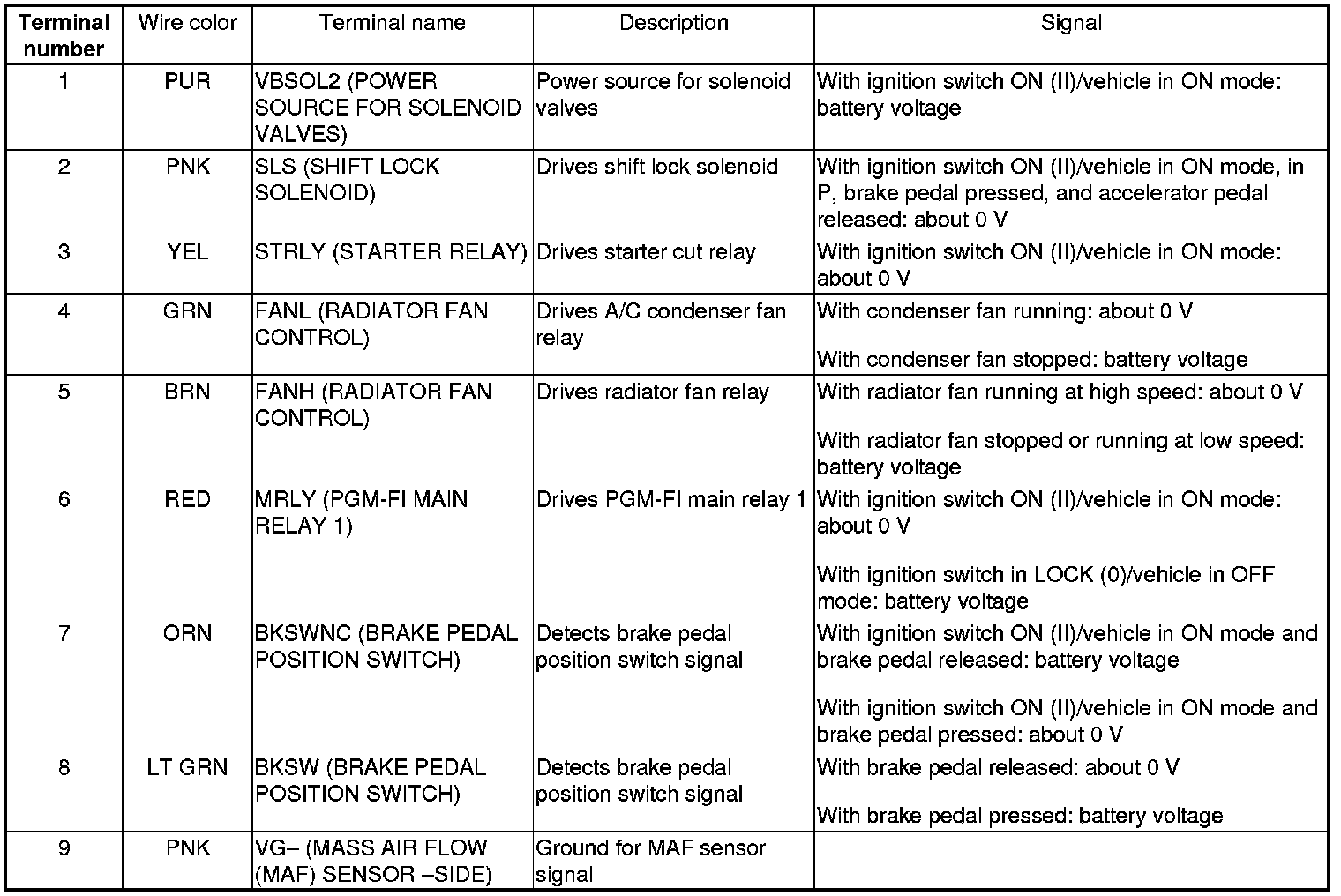

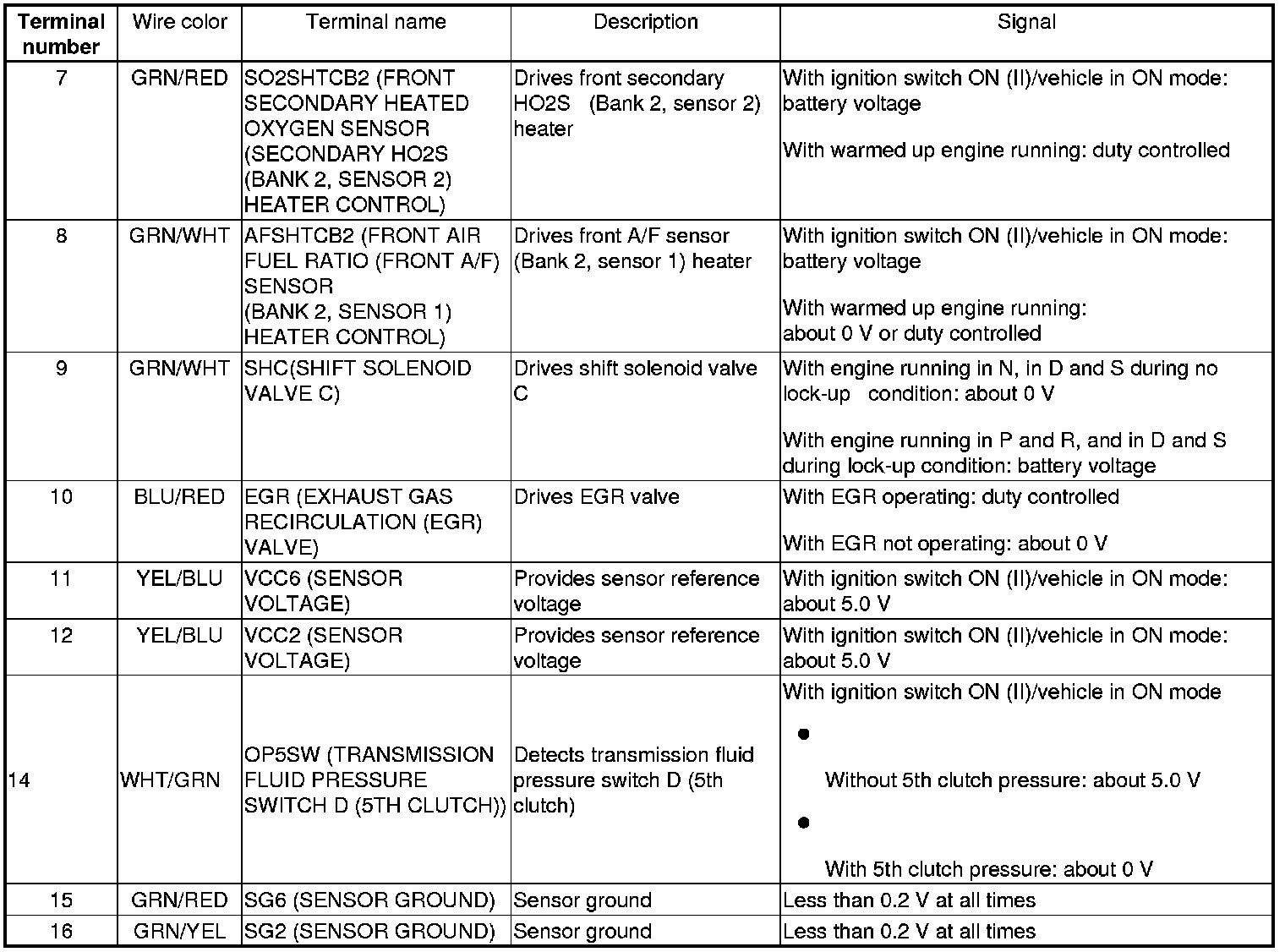

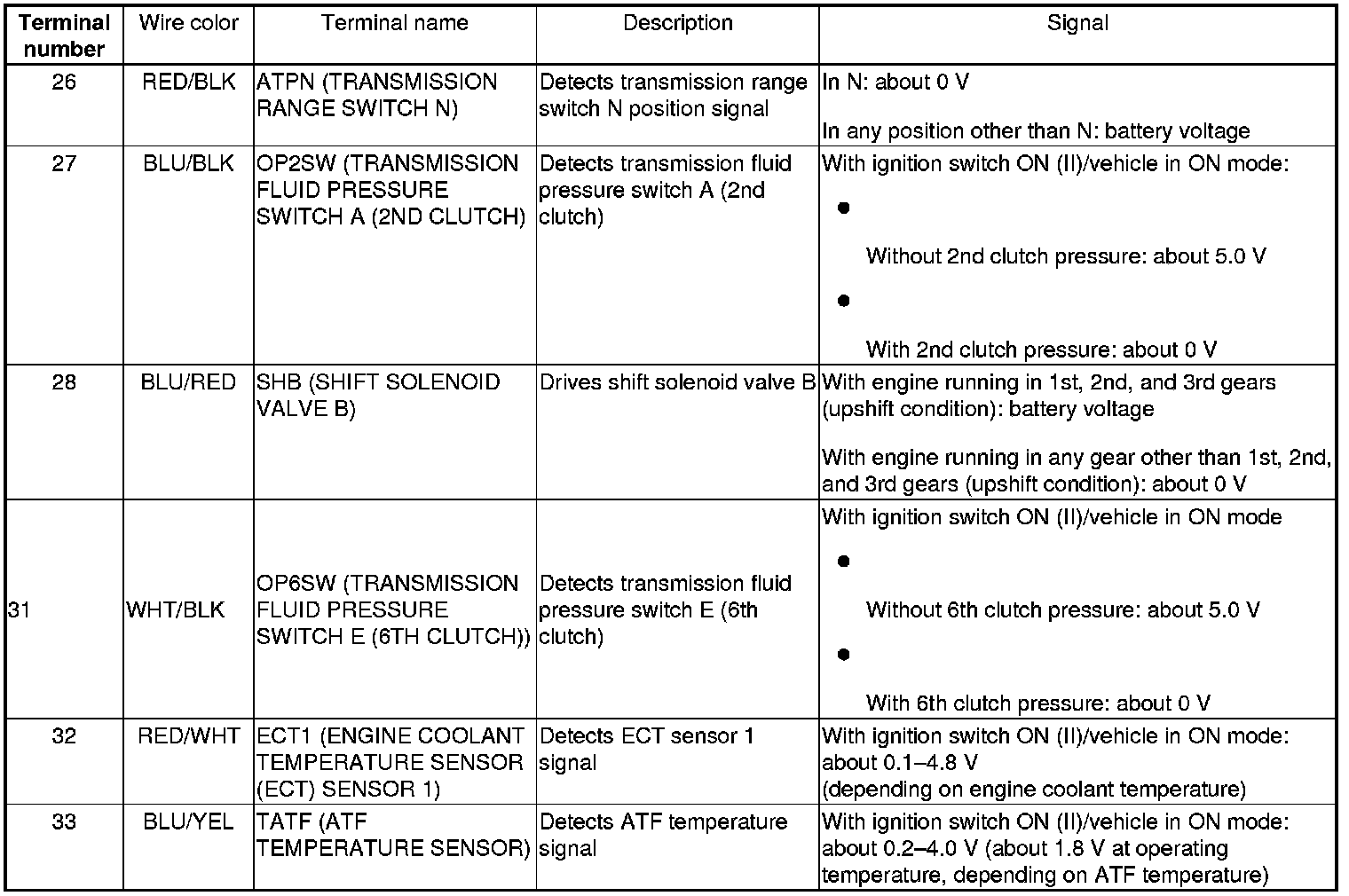

PCM Inputs and Outputs at PCM Connector B (Triangle) (49P)










PCM Inputs and Outputs at PCM Connector B (Triangle) (49P)










PCM Inputs and Outputs at PCM Connector B (Triangle) (49P)

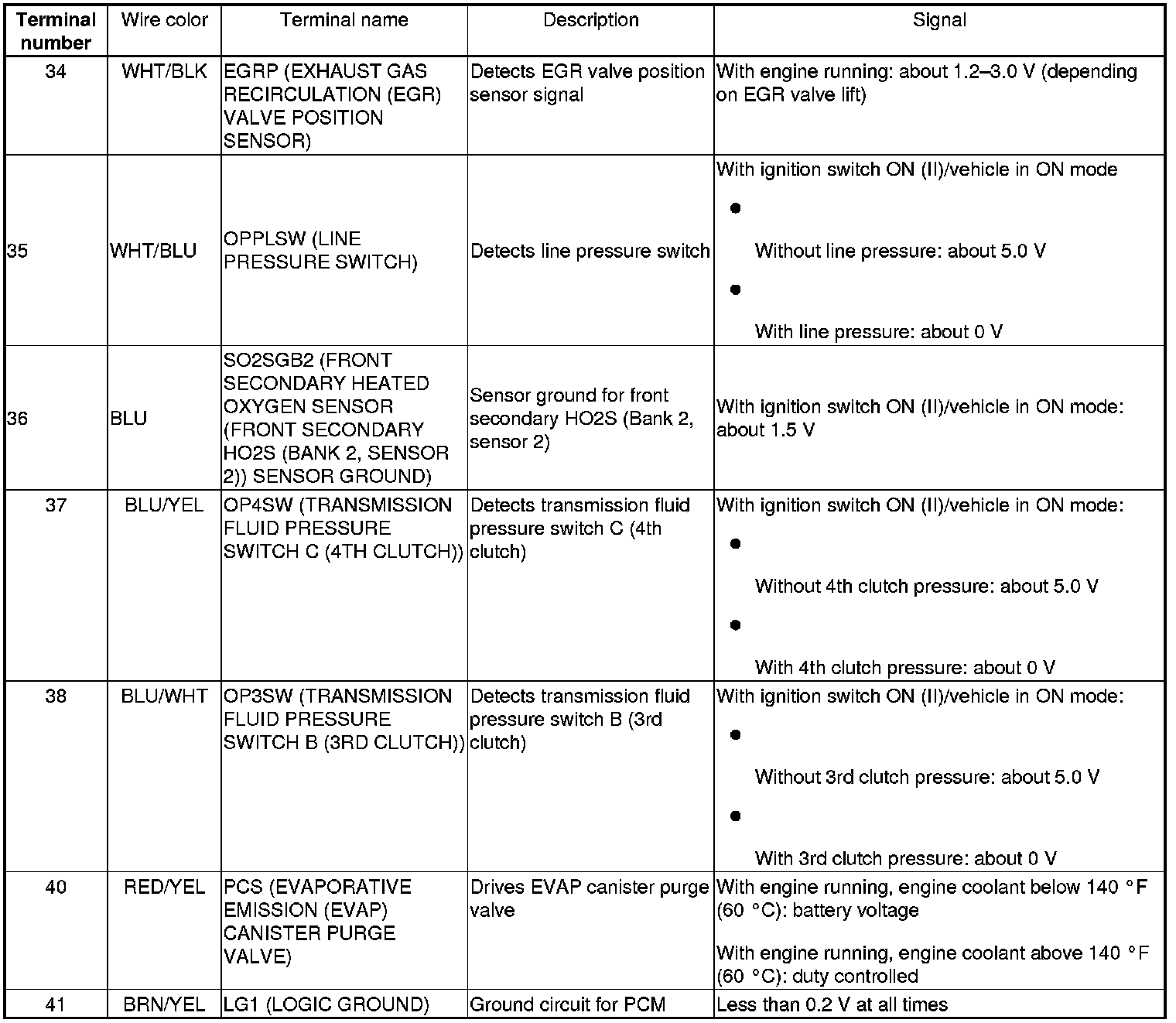

PCM Inputs and Outputs at PCM Connector B (Triangle) (49P)










PCM Inputs and Outputs at PCM Connector B (Triangle) (49P)

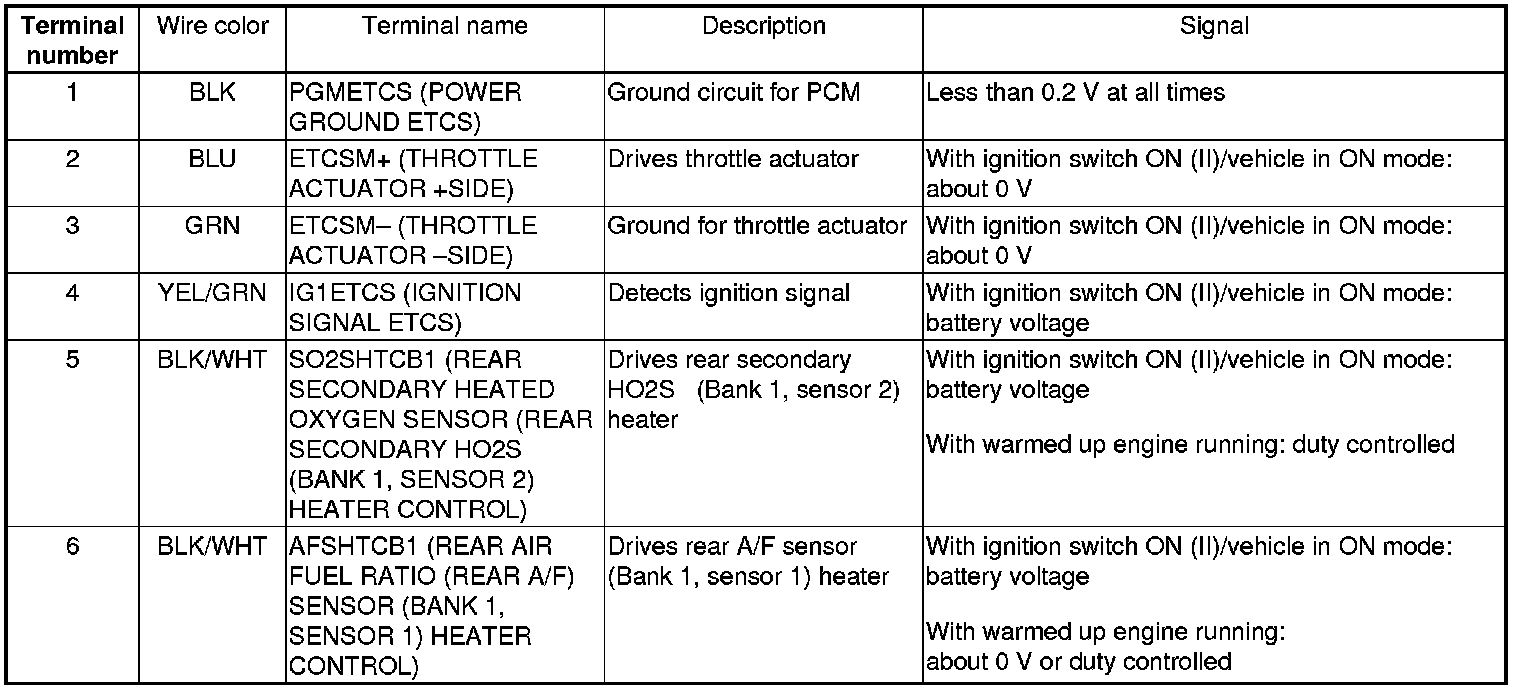

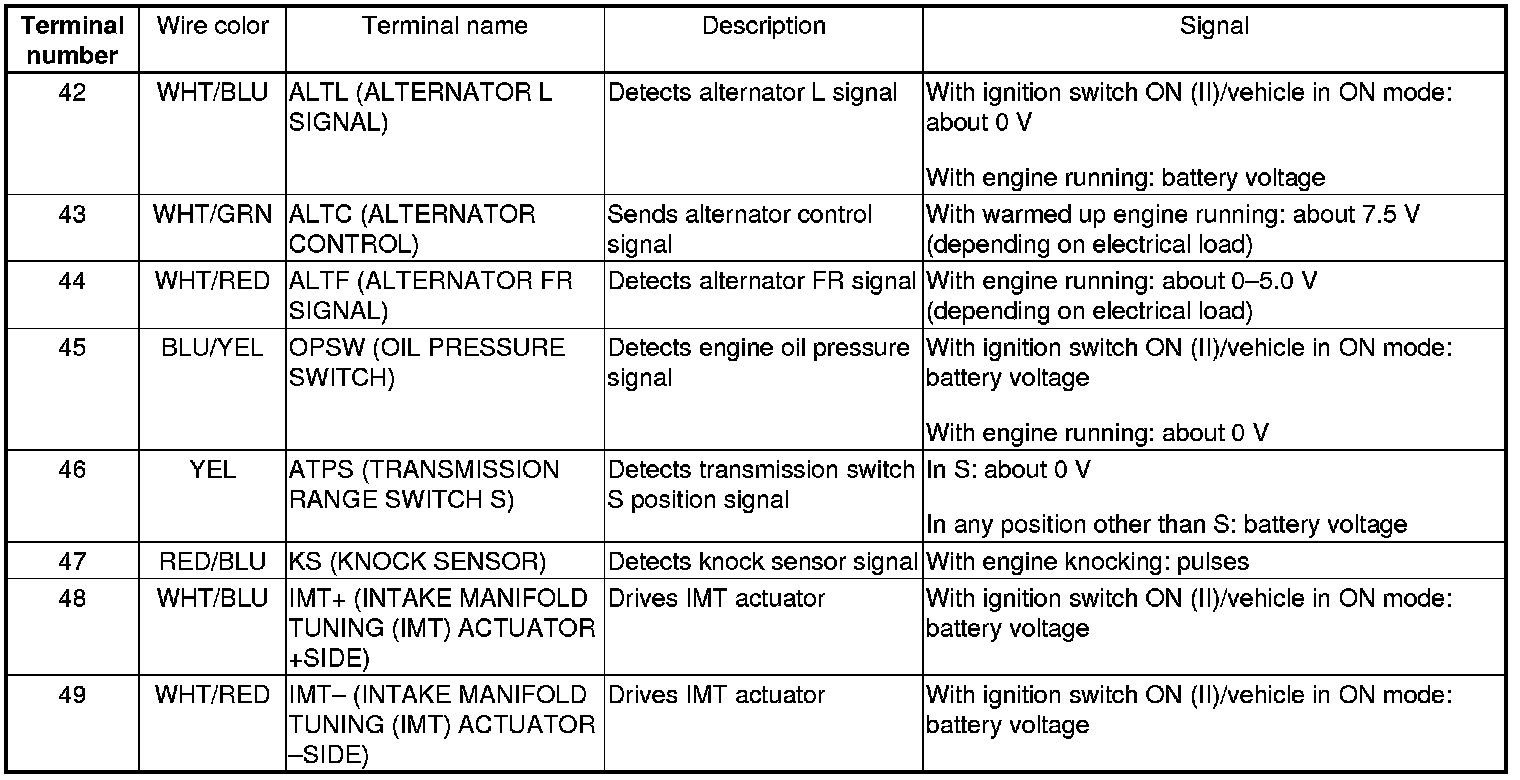

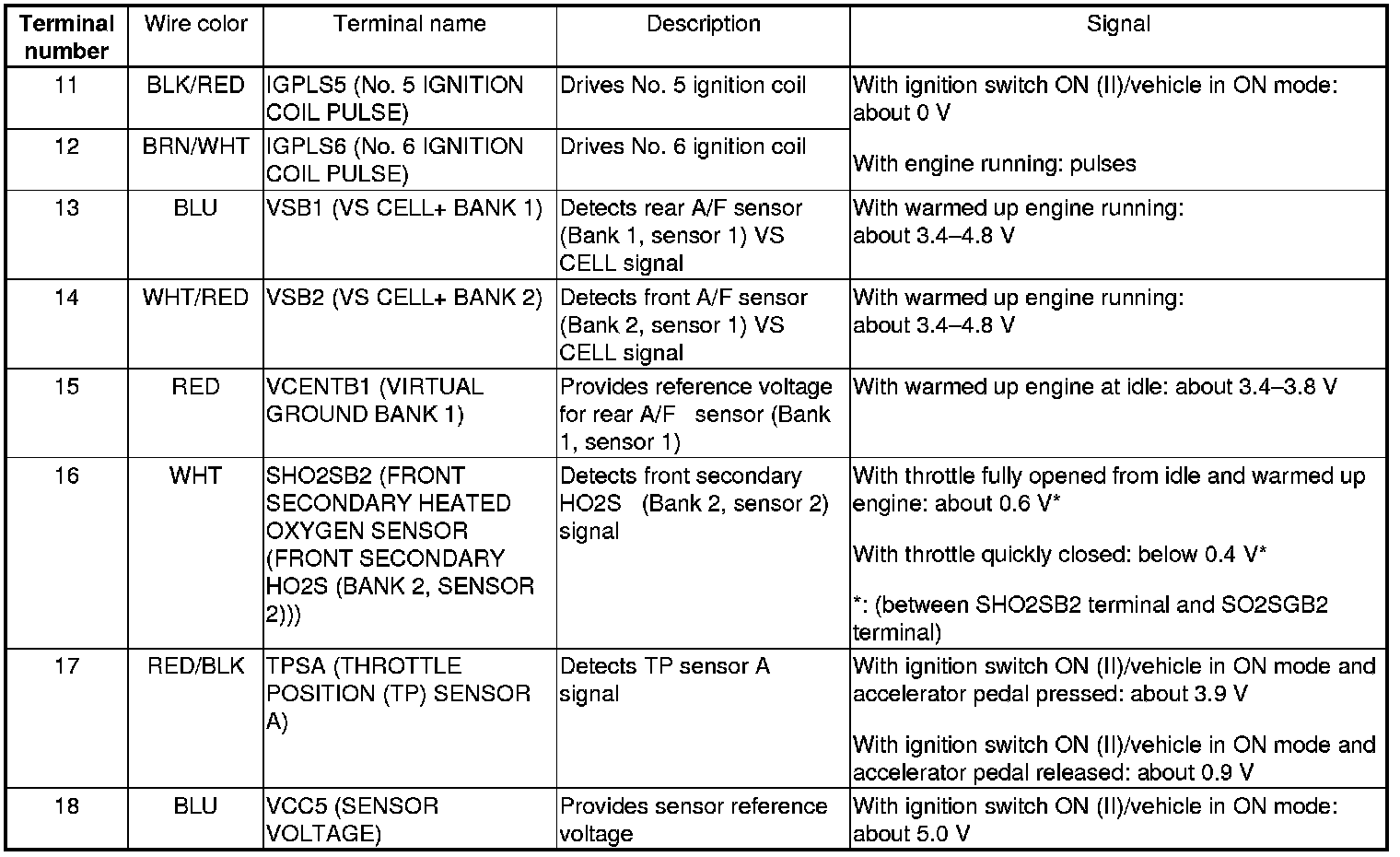

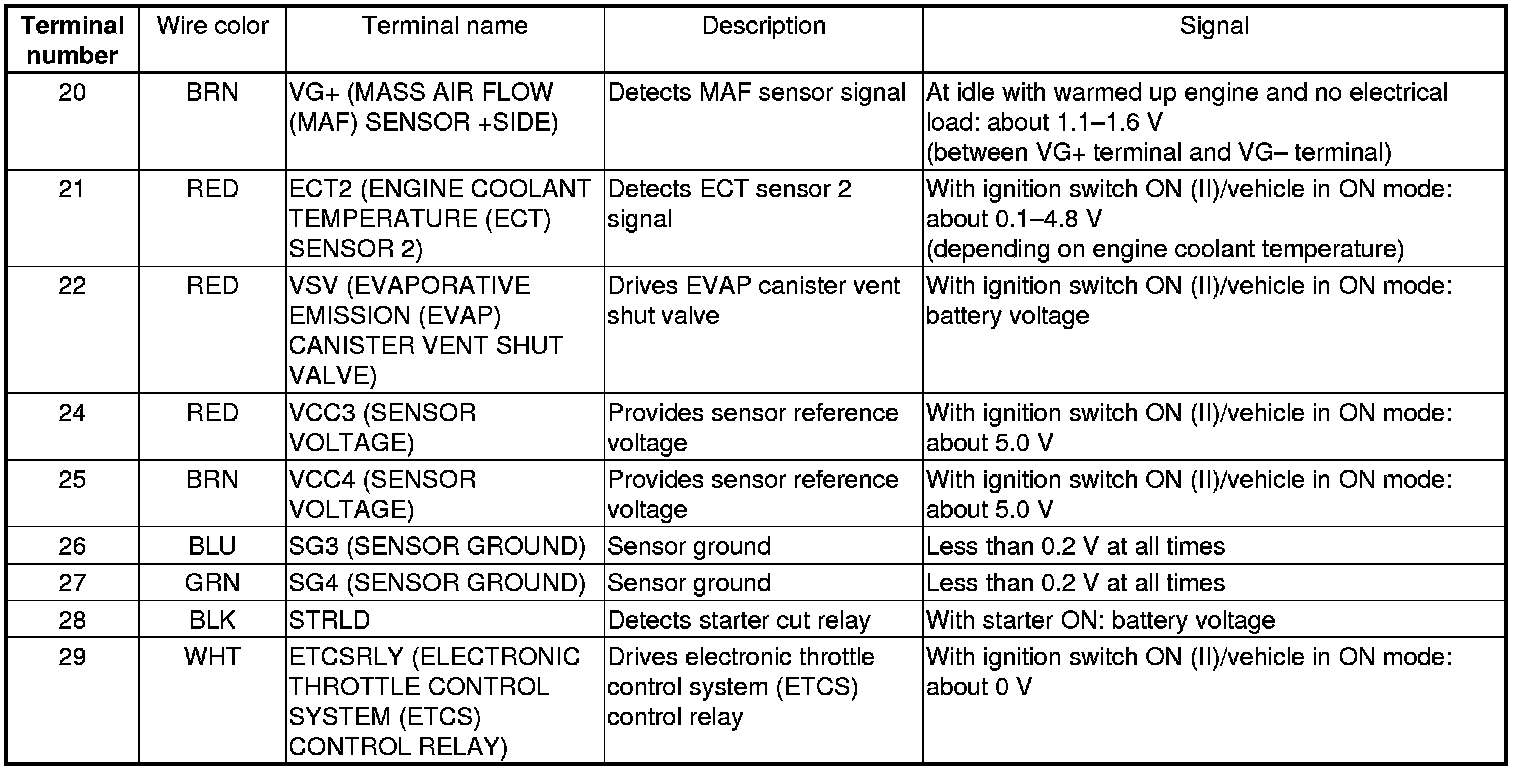

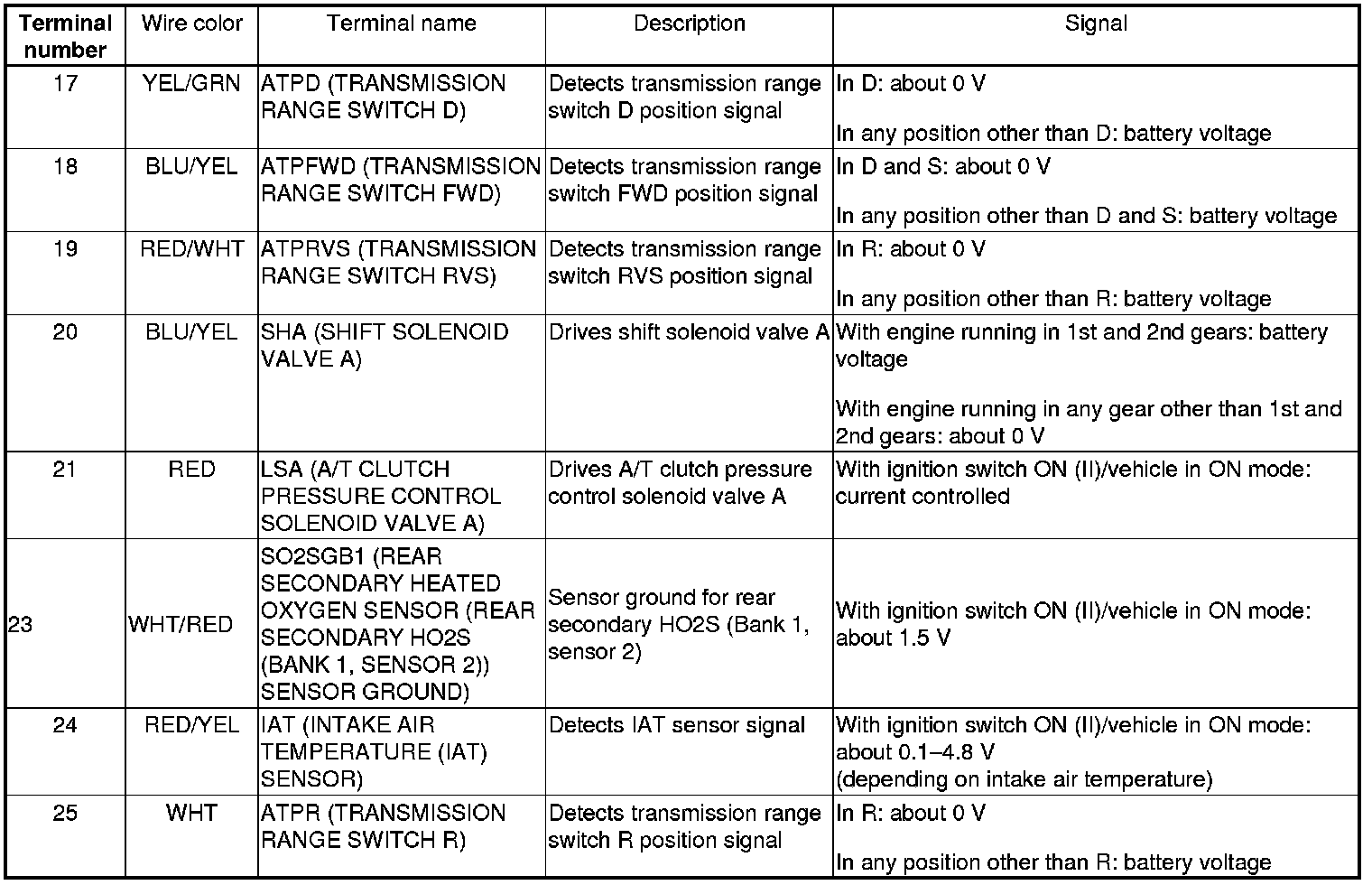

PCM Inputs and Outputs at PCM Connector C (Circle) (49P)










PCM Inputs and Outputs at PCM Connector C (Circle) (49P)

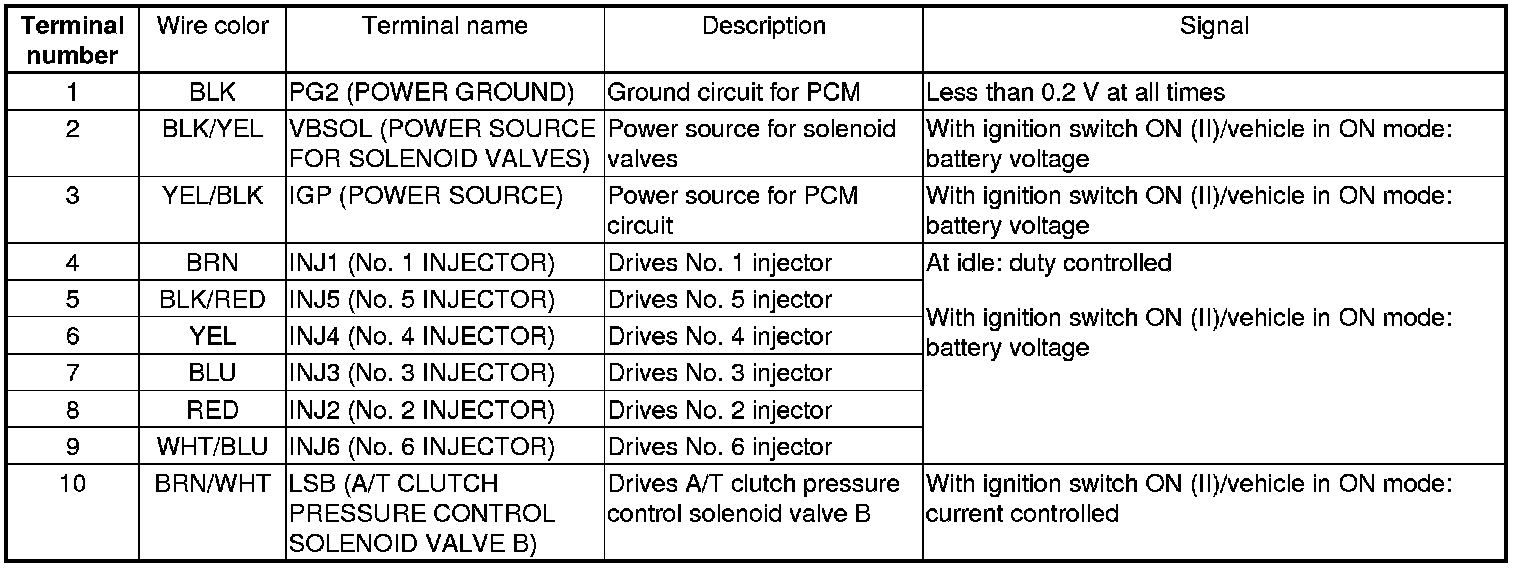

PCM Inputs and Outputs at PCM Connector C (Circle) (49P)










PCM Inputs and Outputs at PCM Connector C (Circle) (49P)

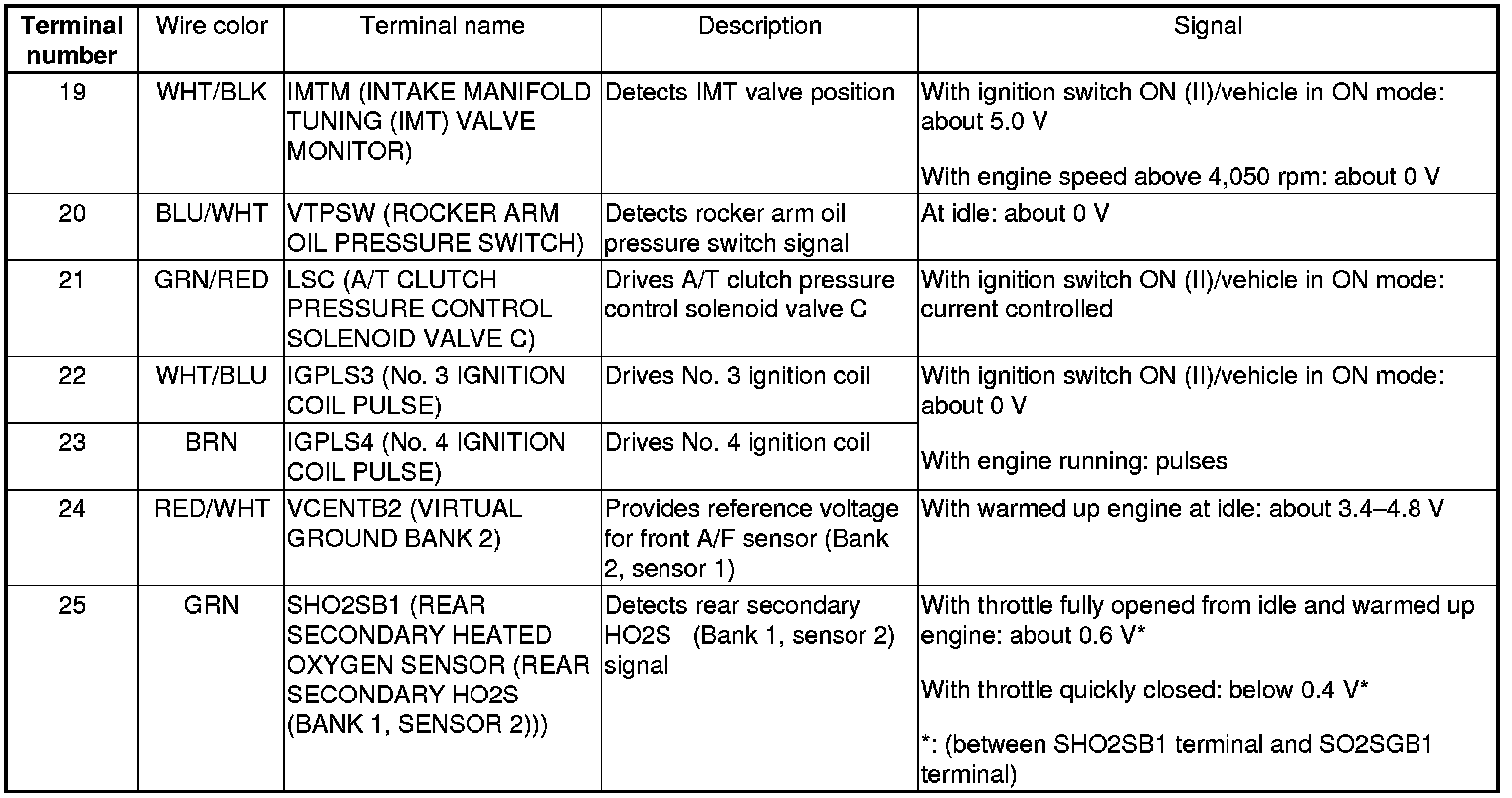

PCM Inputs and Outputs at PCM Connector C (Circle) (49P)










PCM Inputs and Outputs at PCM Connector C (Circle) (49P)
