Immobilizer-Keyless Control Unit Replacement
NOTE:
- SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.
- All registered keys are necessary for replacement of the immobilizer-keyless control unit.
- Remove the steering column covers (see COLUMN COVER REMOVAL/INSTALLATION ).

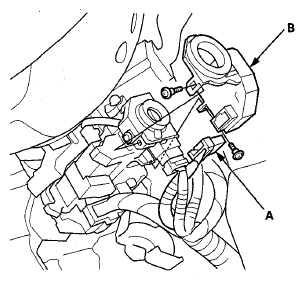

- Disconnect the 7P connector (A) from the immobilizer-keyless control unit (B).
- Remove the two screws and the immobilizer-keyless control unit from the ignition key cylinder.
- Install the immobilizer-keyless control unit in the reverse order of removal.
- After replacement, register the immobilizer-keyless control unit (see IMMOBILIZER-KEYLESS CONTROL UNIT REGISTRATION ), and make sure the immobilizer system works properly.
- Program all of the client's keys/keyless transmitters (see ADD ONE NEW KEY/KEYLESS TRANSMITTER ).
