EVAP Canister Replacement

  1. Raise the vehicle on a lift (see LIFT AND SUPPORT POINTS ).
  2. Disconnect the hoses (A), the FTP sensor 3P connector (B), and the EVAP canister vent shut valve 2P connector (C).

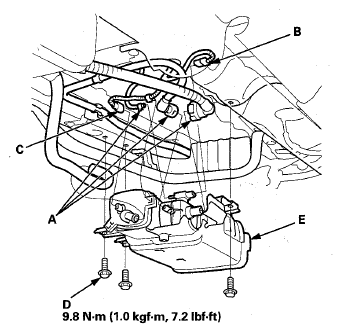

    Fig 1: Hoses, FTP Sensor 3P Connector, Vent Shut Valve 2P Connector & Bolts With Torque Specifications
    G08059817Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts (D), then remove the EVAP canister assembly (E).
  4. Remove the EVAP canister bracket (A) and the EVAP canister cover (B) from the EVAP canister (C).

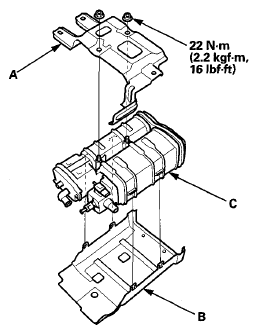

    Fig 2: EVAP Canister, Bracket And Cover With Torque Specifications
    G08059818Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the parts in the reverse order of removal.
