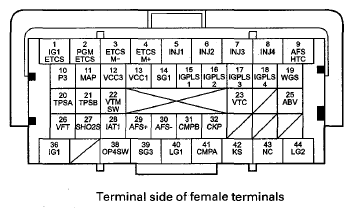

| 36 |
BLK/YEL |
IG1 (IGNITION SIGNAL) |
Detects ignition signal |
With ignition switch ON (II): battery voltage |
| 38 |
BLU/YEL |
OP4SW (4TH CLUTCH TRANSMISSION FLUID PRESSURE SWITCH) |
Detects 4th clutch transmission fluid pressure switch signal |
With engine running:
- Without 4th clutch pressure: about 5.0 V
- With 4th clutch pressure: about 0 V
|
| 39 |
GRN |
SG3 (SENSOR GROUND) |
Sensor ground |
Less than 0.2 V at all times |
| 40 |
BRN/YEL |
LG1 (LOGIC GROUND) |
Ground circuit for PCM circuit |
Less than 0.2 V at all times |
| 41 |
BLU/WHT |
CMPA (CAMSHAFT POSITION (CMP) SENSOR A) |
Detects CMP sensor A signal |
With engine running: pulses |
| 42 |
RED/BLU |
KS (KNOCK SENSOR) |
Detects knock sensor signal |
With engine knocking: pulses |
| 43 |
BLK/BLU |
NC (OUTPUT SHAFT (COUNTERSHAFT) SPEED SENSOR) |
Detects output shaft (countershaft) speed sensor signal |
With ignition switch ON (II): about 0 V or about 5.0 V With driving: pulses |
| 44 |
BRN/YEL |
LG2 (LOGIC GROUND) |
Ground circuit for PCM circuit |
Less than 0.2 V at all times |
