Fuel Pump Control Module Replacement

  1. Fold the rear seat down, then remove the rear seat side bolster (see REAR SEAT REMOVAL/INSTALLATION ).
  2. Disconnect the fuel pump control module 10P connector (A).

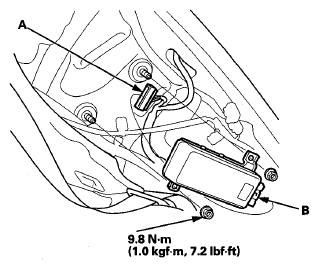

    Fig 1: Fuel Pump Control Module 10P Connector, Fuel Pump Control Module And Bolts With Torque Specifications
    G08059713Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the fuel pump control module (B).
  4. Install the parts in the reverse order of removal.
