PCV Valve Replacement

  1. Disconnect the PCV hose (A).

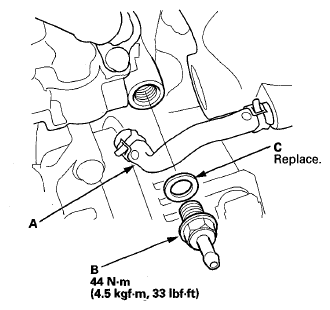

    Fig 1: PCV Hose, Valve And Washer With Torque Specifications
    G08072036Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the PCV valve (B).
  3. Install the parts in the reverse order of removal with a new washer (C).
