IAT Sensor 2 Replacement

  1. Remove the charge air cooler cover (see REMOVAL ).
  2. Disconnect the IAT sensor 2 connector (A).

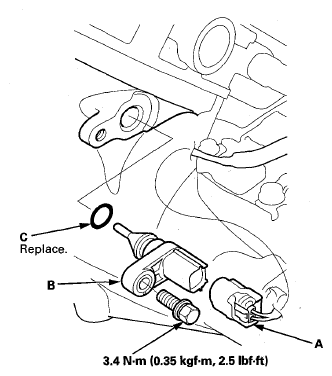

    Fig 1: IAT Sensor 2, Connector And O-Ring With Torque Specifications
    G08059497Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove IAT sensor 2 (B).
  4. Install the parts in the reverse order of removal with a new O-ring (C).
